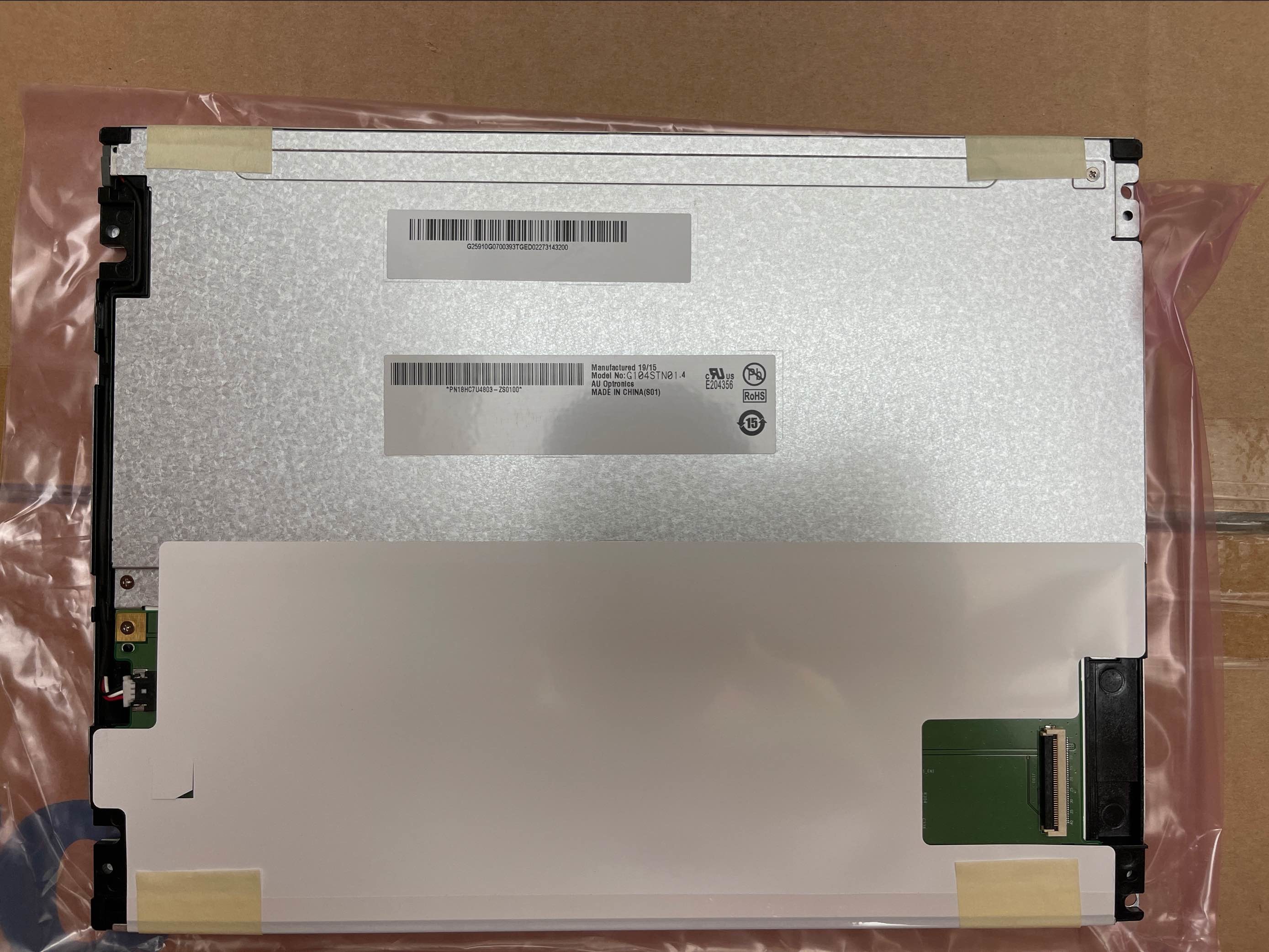

10.4 Inch 800×600 G104STN01.4 AUO LCD LCM Panel For Industrial
Description Of AUO LCD Panel
G104STN01.4 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without touch screen. G104STN01.4
supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in
RGB Vertical Stripe. As for mechanical detail, it features active
area of 211.2(W)×158.4(H) mm. As a TN, Normally White, Transmissive
LCM product, G104STN01.4 can provides 700:1 transimissive contrast
ratio, 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle .
AUO G104STN01.4 Mechanical Details
| Pixel Features : | Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.088×0.264 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.264×0.264 (H×V) [96PPI] |
|---|
| Mechanical Size : | Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) - |
|---|
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation - |
|---|
AUO G104STN01.4 Optical Details
| Basic Information : | Luminance(cd/m²) - Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) - |
|---|
| Color Performance : | White Coordinate - Display Colors 262K/16.2M (6-bit / 6-bit + FRC) |
|---|
We also have other industrial LCD panels, pls contact to us for the
further information
| H496TAN01.0 | AUO | 1.6" |
| H496TAN01.0 | AUO | 4.6" |
| H496TAN01.0 | AUO | 5.2" |
| H496TAN01.0 | AUO | 4.5" |
| H496TAN01.0 | AUO | 4.7" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 4.3" |
| H496TAN01.0 | AUO | 43" |
| H496TAN01.0 | AUO | 31.5" |
| H496TAN01.0 | AUO | 31.5" |
| H496TAN01.0 | AUO | 19.5" |
| H496TAN01.0 | AUO | 7.5" |
| H496TAN01.0 | AUO | 18.5" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 5.5" |
Application Of AUO LCD Panel G104STN01.4
1. Medical Display
2. Military Display
3. Industrial Display
4. Intelligent Display
