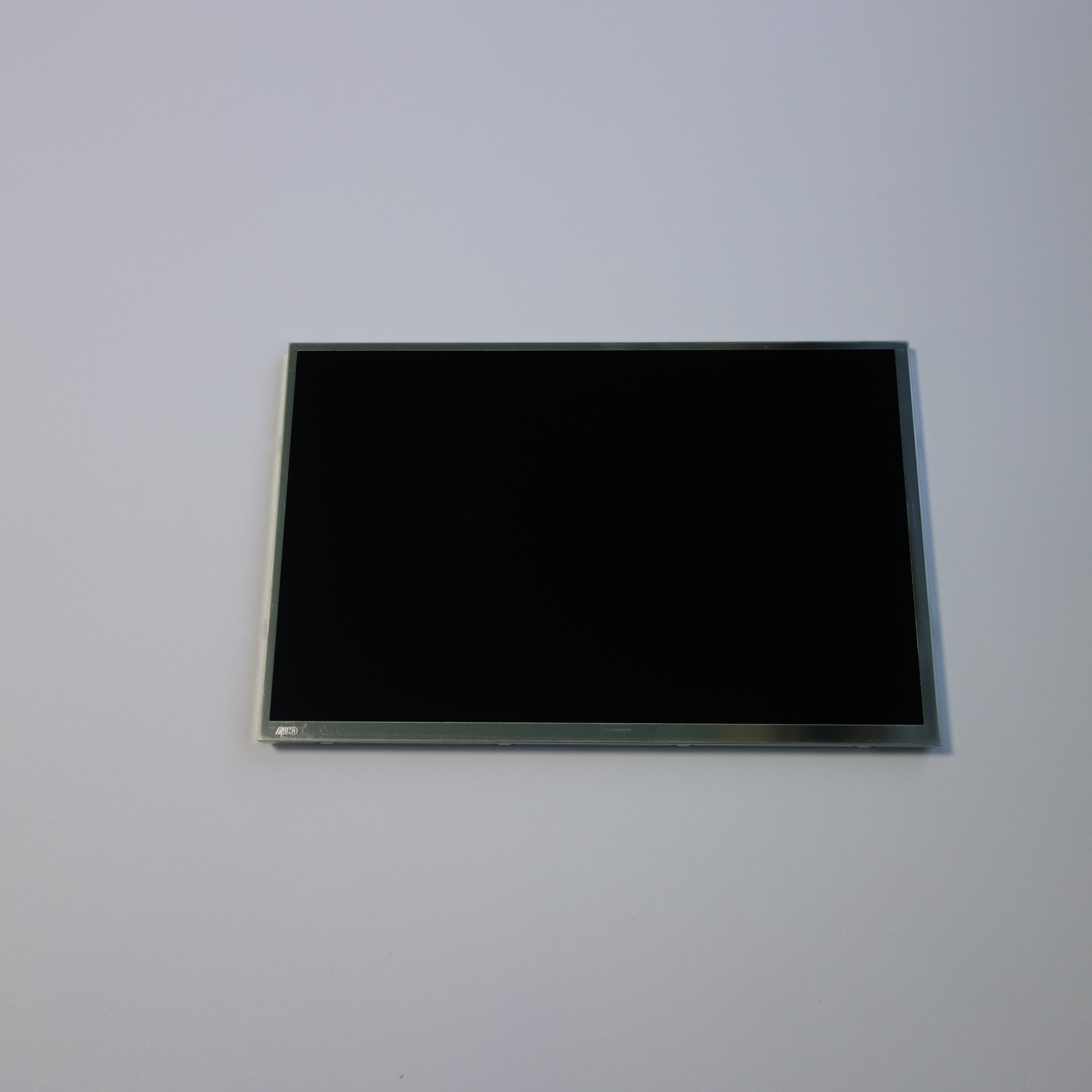

Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel

    Buy cheap Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel from wholesalers

    Buy cheap Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel from wholesalers
    • Buy cheap Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel from wholesalers

    Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G101EVN01.4
    Price : pls contact us
    Payment Terms : T/T, Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 1000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel

    Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel


    Description Of AUO LCD Panel

    AU Optronics Corp. (hereafter called AUO) G101EVN01.4 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver1.1 which was released out on 6 27 2016, G101EVN01.4 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe.


    AUO G101EVN01.4 Mechanical Details

    Pixel Features :
    Pixel Format
    1280(RGB)×800, WXGA
    Dot Pitch
    0.0565×0.1695 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.1695×0.1695 mm (H×V) [149PPI]
    Mechanical Size :
    Display Area
    216.96×135.6 mm (H×V)
    Bezel Area
    220.36×139.1 mm (H×V)
    Outline Dim.
    227.91×148 mm (H×V)
    Outline Depth
    8.34 (Max.) mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    16:10 (H:V)
    Shape Style
    Holes & Brackets :
    Without
    Other Features :
    Weight
    350g (Max.)
    Surface
    Hard coating, Reflection 1.5% (Typ.)

    AUO G101EVN01.4 Optical Details

    Basic Information :
    Brightness
    500 cd/m² (Typ.)
    Contrast Ratio
    1300:1 (Typ.) (Transmissive)
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Optical Mode
    MVA, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    25 (Typ.)(Tr+Td) ms
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Color Numbers
    262K/16.7M (6-bit / 8-bit)
    Color Temperature
    6485K
    Uniformity
    1.43 (Max.)(5 points) Normally Black G101EVN01.4 10.1" 1280×800 Tft Display Panel
    1931 Color Gamlt :
    NTSC Ratio
    47%
    sRGB
    66% coverage
    Adobe RGB
    49% coverage
    DCI-P3
    49% coverage
    Rec.2020
    35% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information


    M185XTN01.3 CELLAUO6.1"
    M185XTN01.3 CELLAUO6.0"
    M185XTN01.3 CELLAUO10.1"
    M185XTN01.3 CELLAUO5.0"
    M185XTN01.3 CELLAUO50"
    H546DAN01.0AUO50"
    H546DAN01.0AUO19.5"
    H347QTN01.0AUO3.5"
    H515DAN01.0AUO5.2"
    H499TAN03.1AUO5.0"
    G150XG03 V3 CELLAUO15.0"
    B080XAN03.1 CELLAUO7.9"
    H572DAN01.2AUO5.7"
    H598AAN01.0AUO6.0"
    H497DAN01.1AUO5.0"

    Application Of AUO LCD Panel G101EVN01.4

    1. Handheld & PDA

    2. Tablet PC

    3. Self-service Terminals Display

    4. Commercial Display
