1024×768 15 Inch G150XTT02.0 262K AUO LCD Panel WLED Lamp Type

Ask Lasest Price
Brand Name :	AUO
Model Number :	G150XTT02.0
Price :	pls contact us
Payment Terms :	T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :	1000
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

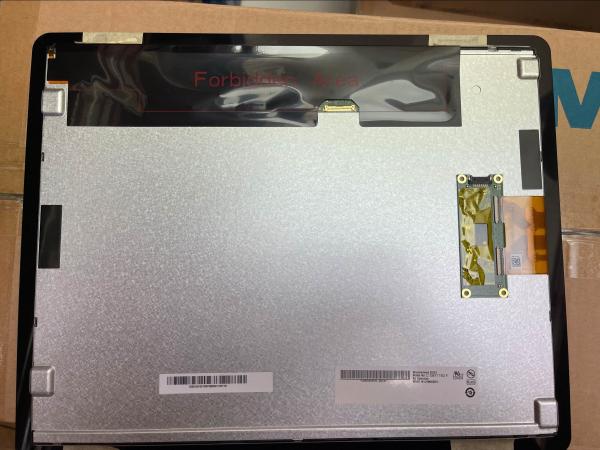

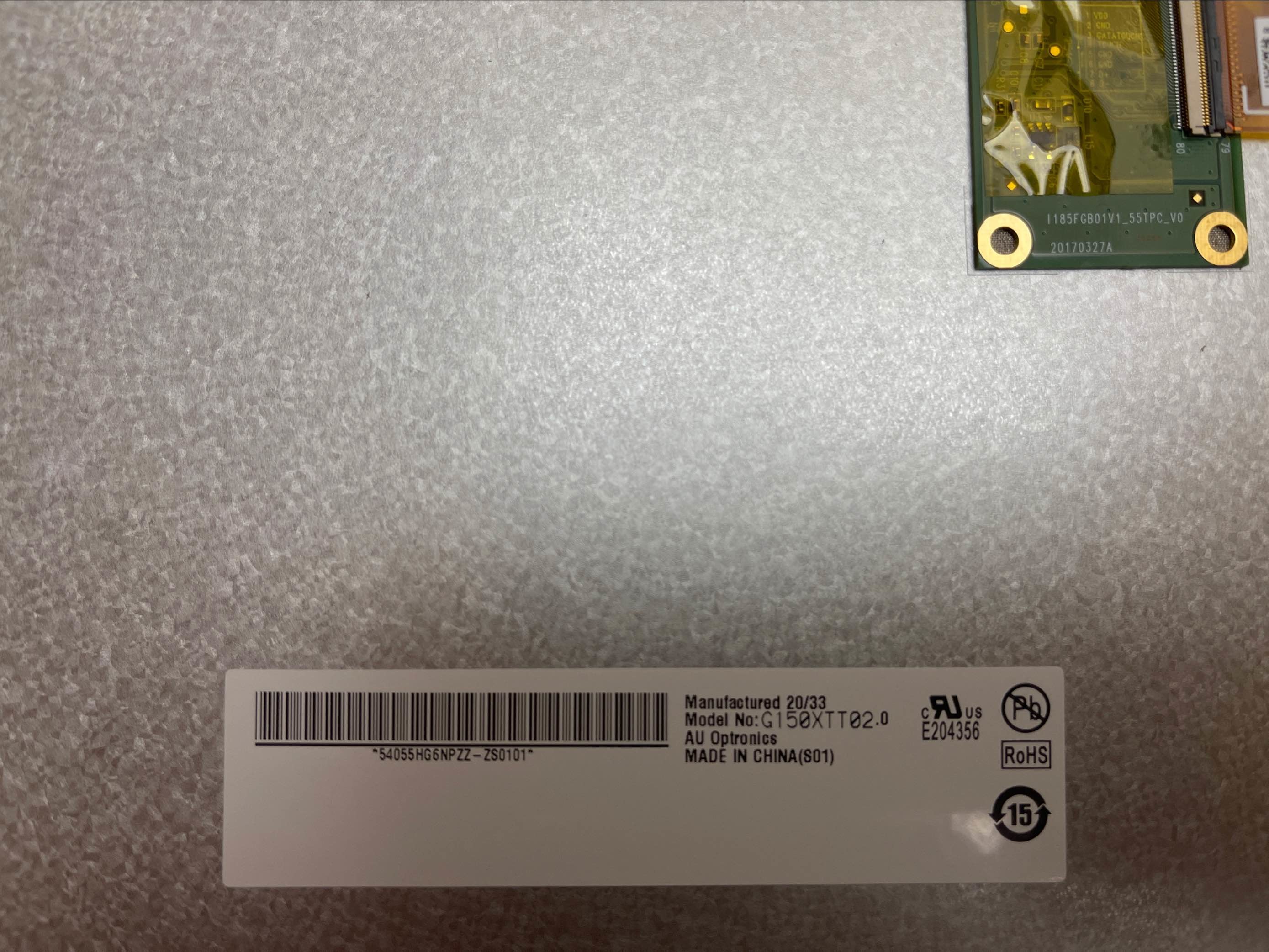

1024×768 15 Inch G150XTT02.0 262K AUO LCD Panel WLED Lamp Type

1024×768 15 Inch G150XTT02.0 262K AUO LCD Panel WLED Lamp Type

Description Of AUO LCD Panel

G150XTT02.0 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm. As a TN, Normally White, Transmissive LCM product, G150XTT02.0 can provides 700:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms.

AUO G150XTT02.0 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) -
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Touch Panel :	Touch Points - Touch Panel PCAP

AUO G150XTT02.0 Optical Details

Basic Information :	Luminance(cd/m²) - Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 5.7/2.3 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 6485K White Uniformity -

We also have other industrial LCD panels, pls contact to us for the further information

M185XTN01.3 CELL	AUO	5.0"
M185XTN01.3 CELL	AUO	50"
H546DAN01.0	AUO	50"
H546DAN01.0	AUO	19.5"
H347QTN01.0	AUO	3.5"
H515DAN01.0	AUO	5.2"
H499TAN03.1	AUO	5.0"
G150XG03 V3 CELL	AUO	15.0"
B080XAN03.1 CELL	AUO	7.9"
H572DAN01.2	AUO	5.7"
H598AAN01.0	AUO	6.0"
H497DAN01.1	AUO	5.0"
H650DAN01.0	AUO	6.4"

Application Of AUO LCD Panel G150XTT02.0

1. Handheld & PDA

2. Tablet PC

3. Self-service Terminals Display

4. Commercial Display

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.
