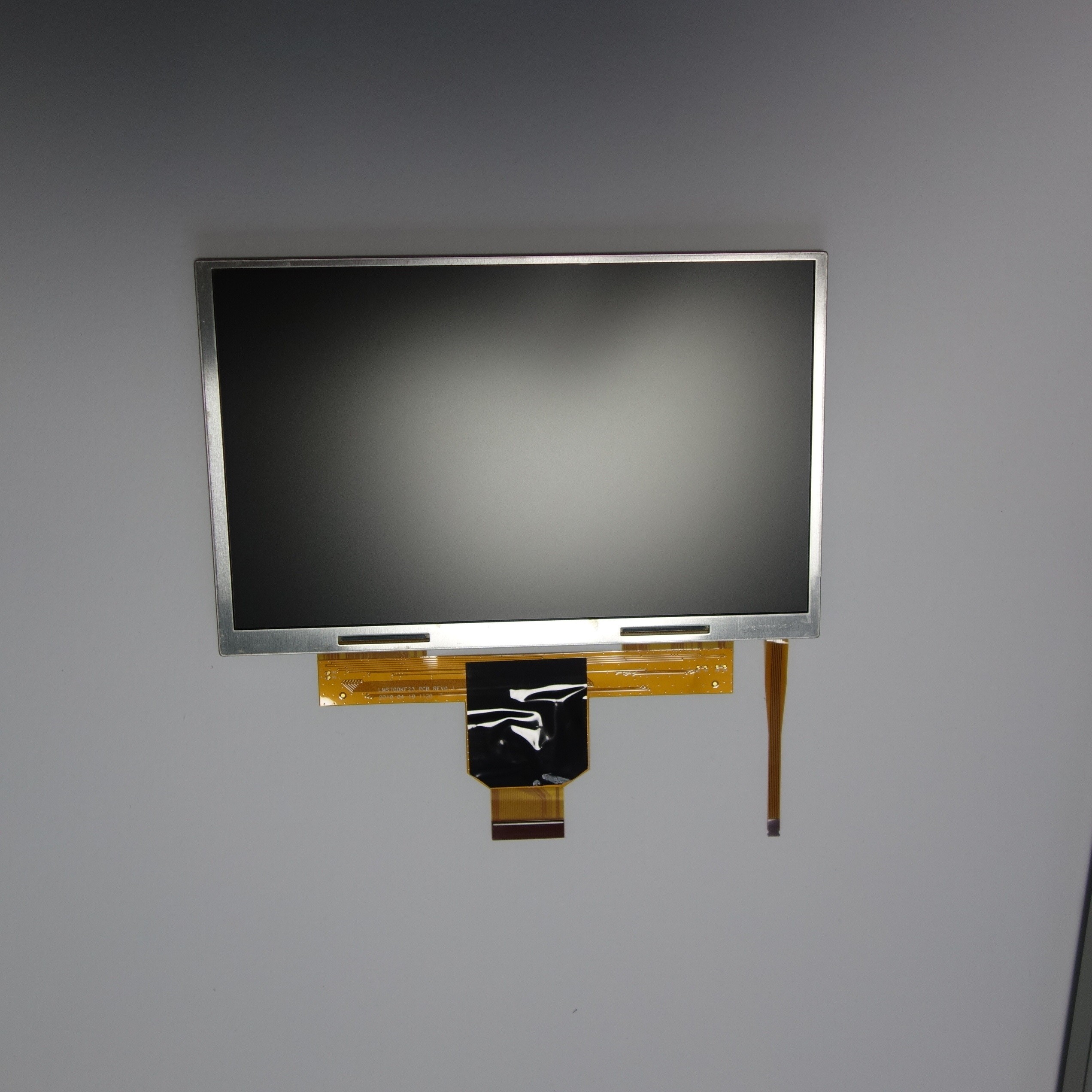

7 Inch LCM LMS700KF23 800×480 16.2M Samsung LCD Panel
Description Of Samsung LCD Panel
LMS700KF23 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from SAMSUNG SMD, with a built-in WLED backlight, without backlight driver, without
touch screen. On the basis of latest version datasheet Rev000 which
was released out on 10 19 2010, LMS700KF23 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged
in RGB Vertical Stripe.
SAMSUNG SMD LMS700KF23 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|
| 350 (Typ.) | 70/70/70/70 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, TMR | 700 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
|---|
| 6287K | 16.2M (6-bit + FRC) | X:0.316; Y:0.335 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 50% | 68% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 52% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points)  |
|---|
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
|---|
| - | Sunlight Readable | - |
SAMSUNG SMD LMS700KF23 Mechanical Features
| Panel Size : | 7.0" |
|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
|---|
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
|---|
| 152.4(H) × 91.44(V) | - | 163.2(H) × 104(V) | 3.4±0.2 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
|---|
| Flat Rectangle | Landscape type | 15:9 (H:V) | |
| Mounting : | Without |
|---|
| Other Detail : | Weight | Panel Cover | Treatment |
|---|
| 115g (Typ.) | - | - |
We also have other industrial LCD panels, pls contact to us for the
further information
| LSC550FN06 | Samsung | 55" |
| LSC550FN05 | Samsung | 55" |
| LSC320AN02-0 | Samsung | 31.5" |
| LSM290DP01-V01 | Samsung | 29.0" |
| LSC320HN07 | Samsung | 31.5" |
| LSC750HJ01-W | Samsung | 75" |
| LSC750FF01-W | Samsung | 75" |
| LSC320HF02-W | Samsung | 31.5" |
| LSC400HM16-W | Samsung | 40" |
| LSC480HJ08 | Samsung | 48" |
| LSC650FN01-W | Samsung | 65" |
| LSC480FJ04 | Samsung | 48" |
| LSC550FN08 | Samsung | 55" |
| LSC480FN02 | Samsung | 48" |
| LSC400FN04 | Samsung | 40" |
| LSC400FN03 | Samsung | 40" |
| LSC480AN02 | Samsung | 48" |
| LSF650FJ02 | Samsung | 65" |
| LSC480HN06 | Samsung | 48" |
Application Of Samsung LCD Panel LMS700KF23
1.Automotive Display
2.Industrial Display
3.Self-service Terminals Display
4.Medical Display
