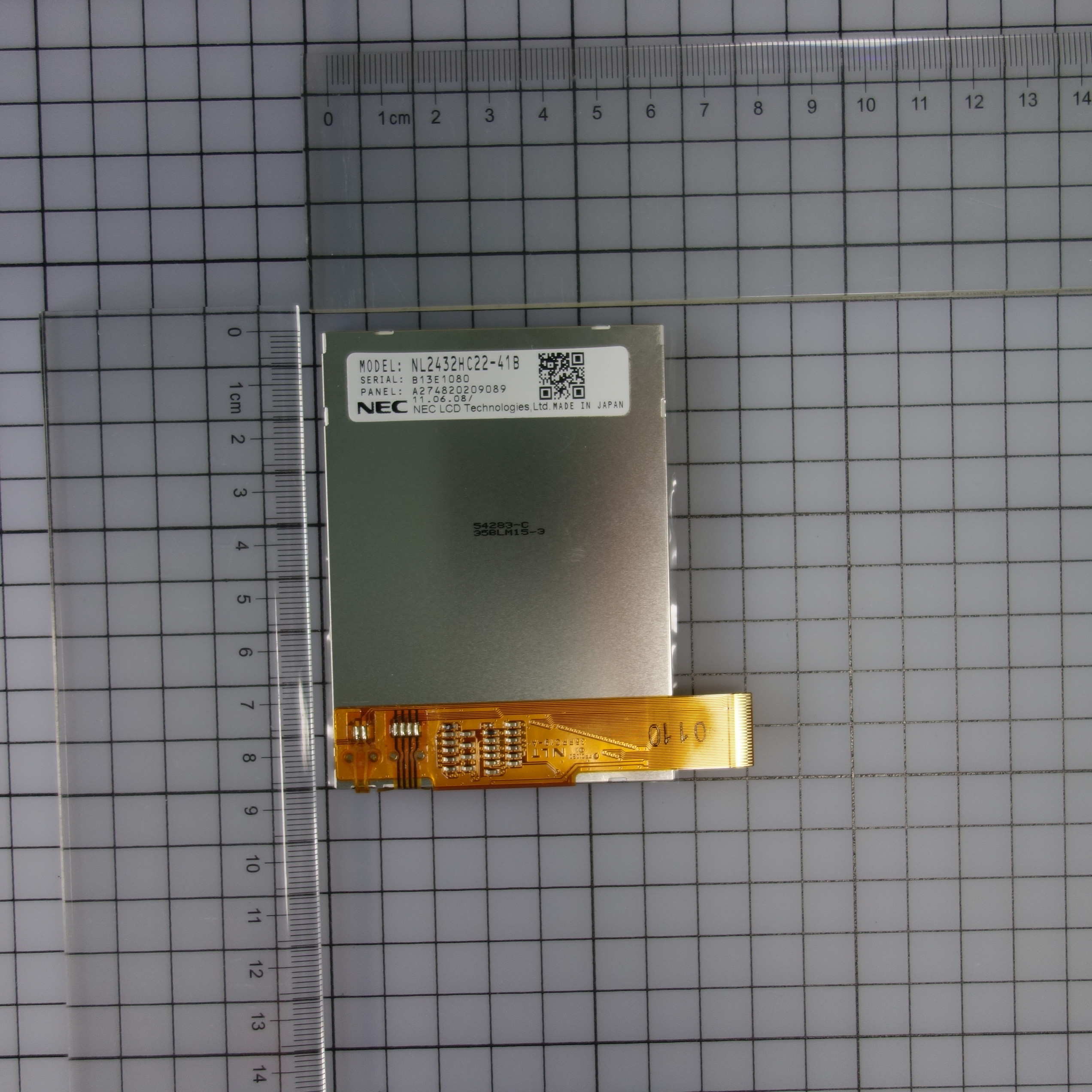

3.5" NL2432HC22-41B 240×320 NEC LCM Industrial LCD Panel
Description Of NEC LCD Panel
NL2432HC22-41B is a 3.5 inch diagonal a-Si TFT-LCD display screen product from NEC, with a built-in WLED backlight, without backlight driver,
touchscreen 4-wire Resistive Touch. On the basis of latest version
datasheet 3rd edition which was released out on 4 1 2008,
NL2432HC22-41B supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB
Vertical Stripe.
NEC NL2432HC22-41B Mechanical Details
Pixel Features :
Pixel Format
240(RGB)×320, QVGA
Dot Pitch
0.0745×0.2235 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2235×0.2235 mm (H×V) [113PPI]
Mechanical Size :
Display Area
53.64×71.52 mm (H×V)
Outline Dim.
57.64×76.52 mm (H×V)
Outline Dim.
63.5×85 mm (H×V)
Outline Depth
4.2/5.7 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Portrait type
Aspect Ratio
3:4 (H:V)
Shape Style
Touch Screen :
Touch Points
1 point
TP Signal
-
TP Controller
Without touch controller
Touchscreen
4-wire Resistive Touch
Other Features :
Weight
43.0/45.0g (Typ./Max.)
Surface
Clear, Hard coating (3H)
NEC NL2432HC22-41B Optical Details
Basic Information :
Brightness
200 cd/m² (Typ.)
Contrast Ratio
150:1 (Typ.) (Transmissive) 15:1 (Typ.) (Reflective)
Viewing Angle
30/30/30/35 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transflective
Viewing Direction
6 o'clock
Response Time
7/23 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Color Numbers
262K (6-bit)
Color Temperature
7351K
Uniformity
1.43/1.67 (Typ./Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
3D Type
-
Reflectance
15% (Typ.)
Application Of NEC LCD Panel NL2432HC22-41B
1. Self-service Terminals Display
2. Tablet PC
3. Handheld & PDA
4. Commercial Display
