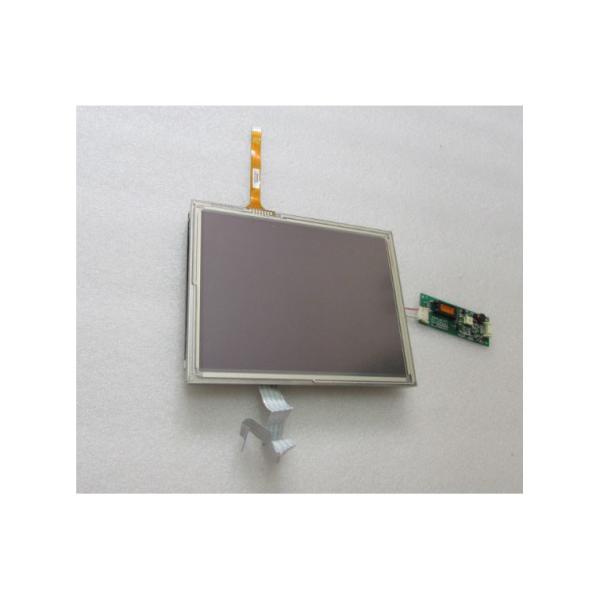

FG080000DNCWAGT1 8" LCM 262K Industrial LCD Displays
Description of Data Image LCD Panel
DataImage, Inc. (hereafter called Data Image) FG080000DNCWAGT1 is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated
CCFL lighting system, without backlight driver, touchscreen 8-wire
Resistive Touch. Based on datasheet with version of Rev.A which was
released out on 3 1 2008, FG080000DNCWAGT1 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB
Vertical Stripe.
Data Image FG080000DNCWAGT1 Optical Details
| Basic Information : | Luminance | 320 cd/m² (Typ.) | Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | 6 o'clock | Response Speed | 15/35 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10)  | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.293; Wy:0.345 | Support Color | 262K (6-bit) |
|---|
| Color Temperature | 7393K | White Uniformity | 1.25/1.43 (Typ./Max.)(5 points) |
Data Image FG080000DNCWAGT1 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.0845×0.2535 mm | Pixel Pitch(W×H) | 0.2535×0.2535 mm [100PPI] |
| Physical Size : | Active Viewing | 162.24(W)×121.68(H) mm | Overall Dim. | 183(W)×141(H) mm |
|---|
| Bezel Opening | - | Overall Depth | 16.2±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Touchscreen : | TP Controller | Without touch controller | TP Interface | - |
|---|
| Touch Points | - | TP Technology | 8-wire Resistive Touch |
| Fixation : | Rear mounting holes (4-Φ2.2) |
|---|
| Other Detail : | Mass | 505g (Typ.) | Surface | Antiglare |
|---|
We also have other industrial LCD panels, pls contact to us for the
further information
| GM126401GFAYBGI2 | Data Image | 2.9" |
Application Of Data Image LCD Panel FG080000DNCWAGT1
1.Medical Display
2.Handheld & PDA
3.Tablet PC
4.Commercial Display
5.Intelligent Display
