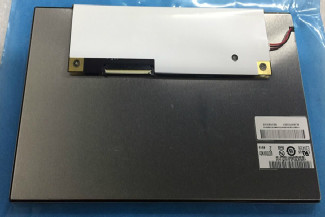

    3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G070VVN01.2
    Price : pls contact us
    Payment Terms : T/T, Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 1000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel

    Description Of AUO LCD Panel

    G070VVN01.2 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 164.55(W)×104.71(H)×8.5(D) mm, viewing area size of 154.2(W)×93.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 143g (Typ.). G070VVN01.2 can provides 600 cd/m² display brightness 1500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/25 (Typ.)(Tr/Td) ms.


    Feature Of AUO LCD Panel

    1) Model:G070VVN01.2

    2) Storage Temp.:-30 ~ 80 °C

    3) Operating Temp.:-20 ~ 70 °C

    4) Screen Size:7.0 inch

    5) Resolution:800(RGB)×480, WVGA

    6) Active Area(mm):152.4(H) × 91.44(V)

    7) Bezel Area(mm):154.2(H) × 93.2(V)

    8) Color Temperature:6601K

    9) Luminance(cd/m²):600 (Typ.)


    AUO G070VVN01.2 Optical Details

    Basic Information :
    Luminance(cd/m²)
    600 (Typ.)
    Contrast Ratio
    1500:1 (Typ.) (Transmissive)
    Viewing Angle
    80/80/80/80 (Typ.)(CR≥10)
    Display Mode
    AMVA3, Normally Black, Transmissive
    Best View on
    Symmetry
    Response(ms)
    10/25 (Typ.)(Tr/Td)
    Color Performance :
    White Coordinate
    Wx:0.311; Wy:0.328
    Display Colors
    262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature
    6601K
    White Uniformity
    1.25 (Max.)(9 points) 3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel
    1931 Color Gamlt :
    NTSC Ratio
    70%
    sRGB
    90% coverage
    Adobe RGB
    70% coverage
    DCI-P3
    73% coverage
    Rec.2020
    53% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G070VVN01.2 Interface Detail

    Signal Electrical :
    Voltage Supply
    3.3V (Typ.)
    Current Supply
    160/197mA (Typ./Max.)
    Consumption
    528/650mW (Typ./Max.)
    Signal Type :
    Parallel RGB (1 ch, 6/8-bit)
    Logic Voltage
    -
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Quantity
    Pin Configuration 3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel
    JAE
    0.5 mm
    50 pins
    1 pcs

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information

    H546DAN01.0AUO19.5"
    H347QTN01.0AUO3.5"
    H515DAN01.0AUO5.2"
    H499TAN03.1AUO5.0"
    G150XG03 V3 CELLAUO15.0"
    B080XAN03.1 CELLAUO7.9"
    H572DAN01.2AUO5.7"
    H598AAN01.0AUO6.0"
    H497DAN01.1AUO5.0"
    H650DAN01.0AUO6.4"
    H572DAN01.0AUO5.7"
    H546DAN01.2AUO5.5"
    H499TAN03.0AUO5.0"
    H572TAN01.0AUO5.7"
    H466TAN02.3AUO4.7"
    H446TAN03.1AUO4.5"
    H446TAN03.0AUO4.5"

    Application Of AUO LCD Panel G070VVN01.2

    1. Self-service terminal display

    2. Medical display

    3. Industrial display

    4. Automotive display

    5. Tablet PC

    6. Handheld & PDA


    Advantage Of AUO LCD Panel
    1. We are professional LCD module manufacture in China with precise and advanced equipments.
    2. High quality Control with CE,ROHS and so on approved.
    3. More than 10 years of industry experience and involved main markets all over the world
    4. Dedicated and professional sales team will offer you 24 hours online and immediate service
    5. OEM and ODM support,12 months warranty for all of our products
    6. Our mission is to help our customers achieve success, then fulfill our both dreams


    We Can Do for You:

    1) One-to-one service with efficient& professional support;

    2) Protection of your design and all your private information;

    3) We could supply different hard disk for you.

    4) Quality stability, can to provide certification of products;

    5) Convenient payment methods: PayPal, T/T and Western Union;

    6) Speedy shipment: we could arrange the shipment within 1-3 business days.

    7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

    8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.

    3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel3.3V G070VVN01.2 7" 6601K Parallel RGB AUO LCD Panel
