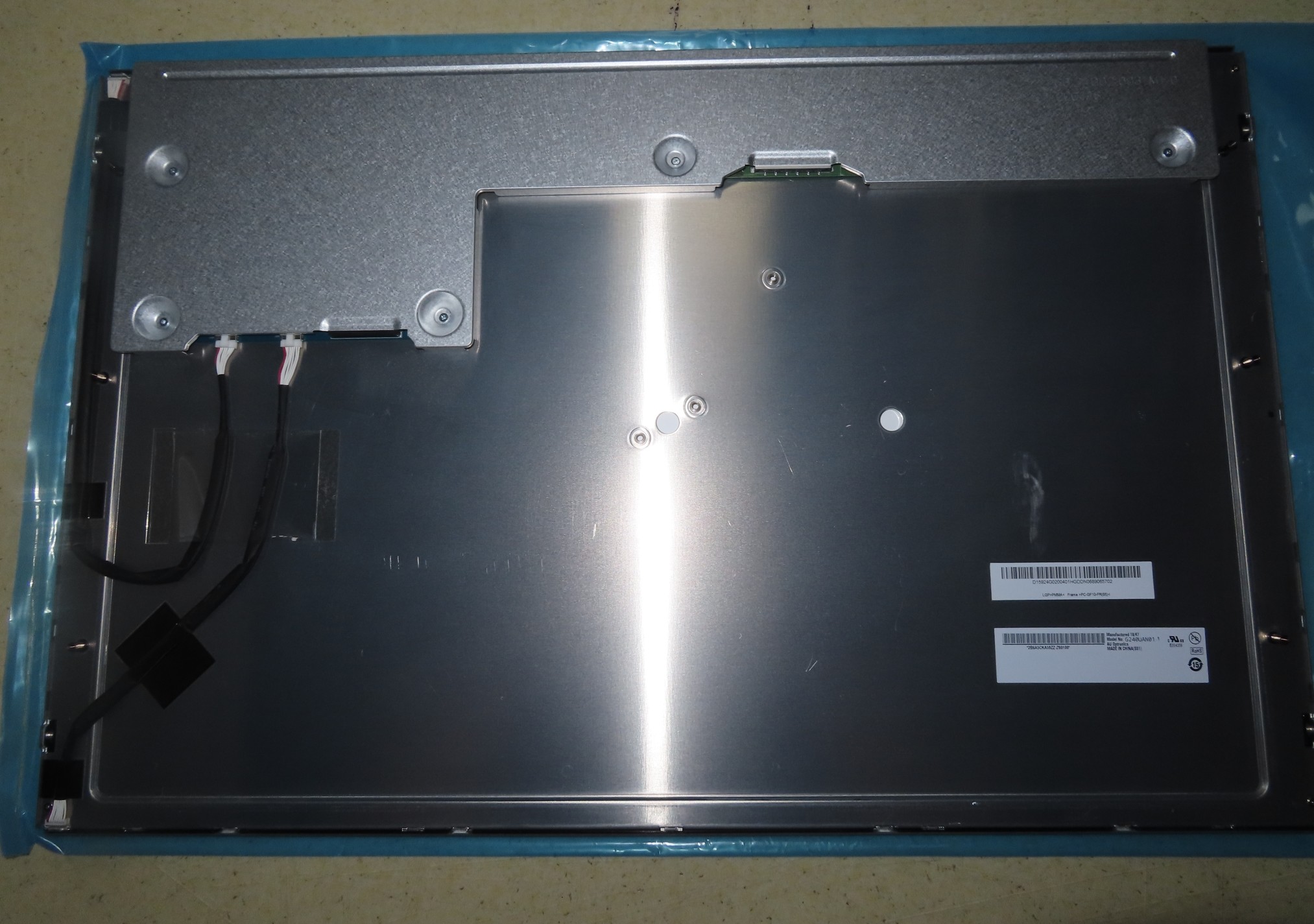

750 Cd/M² LCM G240UAN01.1 10 Bit 6485K AUO LCD Panel

Description Of AUO LCD Panel

AUOptronics Corp. (hereafter called AUO) G240UAN01.1 is a 24.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.0 which was released out on 7 17 2017, G240UAN01.1 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×18.6(D) mm, viewing area size of 521.4(W)×327.0(H) mm, with surface treament of Antiglare, net weight of 2.50Kgs (Typ.).

Specification Of AUO LCD Panel

Signal Electrical :	Input Current 0.4/0.6A (Typ./Max.) Input Voltage 12.0V (Typ.) Consumption 4.8/7.2W (Typ./Max.) Signal Interface LVDS (2 ch, 10-bit)
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JAE FI-RE51S-HF-R1500 0.5 mm 51 pins 1 pcs

Basic Detail :	Luminance 750 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(Tr+Td) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 1.07B (8-bit + Hi-FRC) Color Temperature 6485K White Variation 1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 88% sRGB 100% coverage Adobe RGB 80% coverage DCI-P3 90% coverage Rec.2020 65% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity -

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information

M270HVN02.1 CELL	AUO	27.0"
M270DTN01.0 CELL	AUO	27.0"
T320HVN05.7 CELL	AUO	31.5"
T320HVN05.4 CELL	AUO	31.5"
T215HVN01.2 CELL	AUO	21.5"
B070ATN02.0 CELL	AUO	7.0"
M238DAN01.3 CELL	AUO	23.8"
B070AAN01.0	AUO	7.0"
M238DAN01.1 CELL	AUO	23.8"
M270DAN02.0 CELL	AUO	27.0"
H598DAN03.0	AUO	6.0"
H546TAN02.3	AUO	5.5"
G173HW01 V0 CELL	AUO	17.3"
T320HVN05.A CELL	AUO	31.5"

Application Of AUO LCD Panel G240UAN01.1

1. Smart Home

2. Palm POS

3. Industrial Palm Terminal

4. Desktop financial Terminal

Advantage Of AUO LCD Panel

1. We are professional LCD module manufacture in China with precise and advanced equipments.

2. High quality Control with CE,ROHS and so on approved.

3. More than 10 years of industry experience and involved main markets all over the world

4. Dedicated and professional sales team will offer you 24 hours online and immediate service

5. OEM and ODM support,12 months warranty for all of our products

6. Our mission is to help our customers achieve success, then fulfill our both dreams

Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
