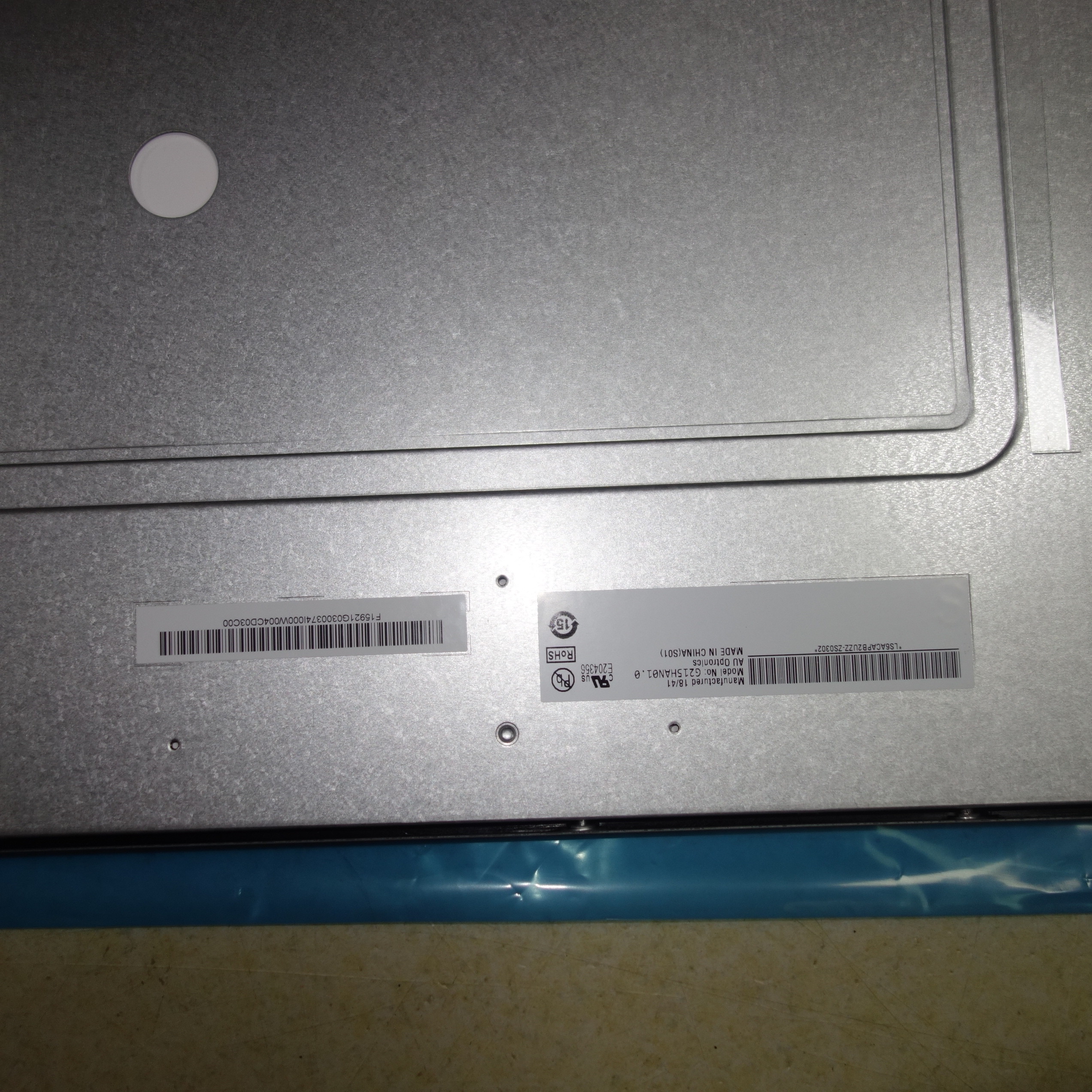

21.5" G215HAN01.0 LCM 1920×1080 AUO Medical LCD Panel

Description Of AUO LCD Panel

G215HAN01.0 (Alias: 97.21G03.000) is a 21.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.1 which was released out on 2 18 2019, G215HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

Specification Of AUO LCD Panel

Basic Information :	Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 12/10 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit) Color Temperature 6485K Uniformity 1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 73% sRGB 96% coverage Adobe RGB 75% coverage DCI-P3 76% coverage Rec.2020 55% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Back-light Features :	Lamp Type WLED Amount 9S7P Life Time 50K(Min.) (Hours) Replacement - Lamp Shape 7 strings Position Edge light type (Top side)
Interface Features :	Type Connector Position Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration STM MS24049HJ 1.25 mm 9 pins 1 pcs
Driver Electrical :	Voltage Input 12.0V (Typ.) Current Input 1.17/1.4A (Typ./Max.) Consumption 14.0/16.8W (Typ./Max.)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

Application Of AUO LCD Panel G215HAN01.0

1. Medical Equipment

2. Security Monitoring System

3. Industrial Control

4. On-board display

Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
