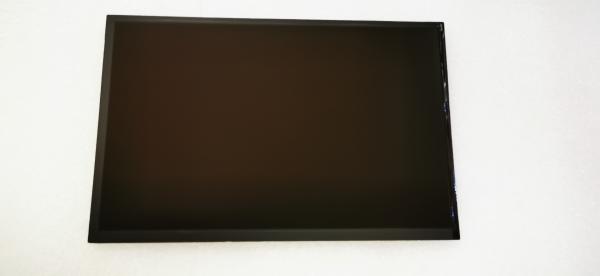

ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display

    Buy cheap ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display from wholesalers

    Buy cheap ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display from wholesalers
    • Buy cheap ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display from wholesalers
    • Buy cheap ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display from wholesalers
    • Buy cheap ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display from wholesalers

    ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G101EAN01.0
    Price : pls contact us
    Payment Terms : T/T ,Western Union,PAYPAL,BANK TRANSFER
    Supply Ability : 1000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display

    ROHS 7351K G101EAN01.0 10.1 Inch LCM Auo LCD Display


    Quick Details


    ManufacturerAUO
    Model NameG101EAN01.0
    Screen Size10.1 inch
    Screen TypeLCM , a-Si TFT-LCD
    Pixel Number800(RGB)×1280 (WXGA) 150PPI
    Arrangement RGB Vertical Stripe
    Active Area(mm)135.36 × 216.576 (H×V)
    Outline(mm) 150.3 × 232.43 × 4.8 (H×V×D)
    Bezel Area(mm)-TreatmentAntiglare, Antireflection
    Luminance 350 cd/m2 (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)

    AUO G101EAN01.0 Optical Details

    Basic Information :Luminance350 cd/m² (Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed30 (Typ.)(Tr+Td) (ms)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeAHVA, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.300; Wy:0.320Support Color16.7M (8-bit)
    Color Temperature7351KWhite Uniformity1.25/1.33 (Max.)(5/13 points)
    1931 Color Gamlt :NTSC Ratio58%sRGB78% coverage
    Adobe RGB60% coverageDCI-P360% coverage
    Rec.202043% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

      AUO G101EAN01.0 Specification Source

      Datasheet Referenced :File NumberVersionLanguageIssue Date
      -Ver0.1English2019 - 1 - 4
      Panelook Latest Update :

      2020-05-11 13:


      Application of AUO G101EAN01.0


      Industrial Control Equipment: remote control, punched-card machine...


      Advantage Of AUO LCD Panel

      1. We are professional LCD module manufacture in China with precise and advanced equipments.

      2. High quality Control with CE,ROHS and so on approved.

      3. More than 10 years of industry experience and involved main markets all over the world

      4. Dedicated and professional sales team will offer you 24 hours online and immediate service

      5. OEM and ODM support,12 months warranty for all of our products

      6. Our mission is to help our customers achieve success, then fulfill our both dreams


      >> Quality ensurance

      100% AUO original and brand new!


      warranty :12 months !You can enjoy the real panels directly from AUO factory;


      >> Packing ensurance

      all the products are in original package from original factory directly, and all the packages have labels andserial number!


      >> Delivery ensurance

      We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !


      Pre-sales service :

      1. Our team design and make solutions based on different requirements from different customers.

      2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.


      After-sales services:

      1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

      2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

      3. We have professional engineer customer to keep fastly reply.


      Please let us know your requirements on panels:

      1), Size

      2), Resolution

      3), Brightness/Luminance

      4), Viewing Angle

      5), Light Source

      6), Signal Interface: LVDS or eDP or V-by-One

      or tell us the exact model # for reference.

      we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
