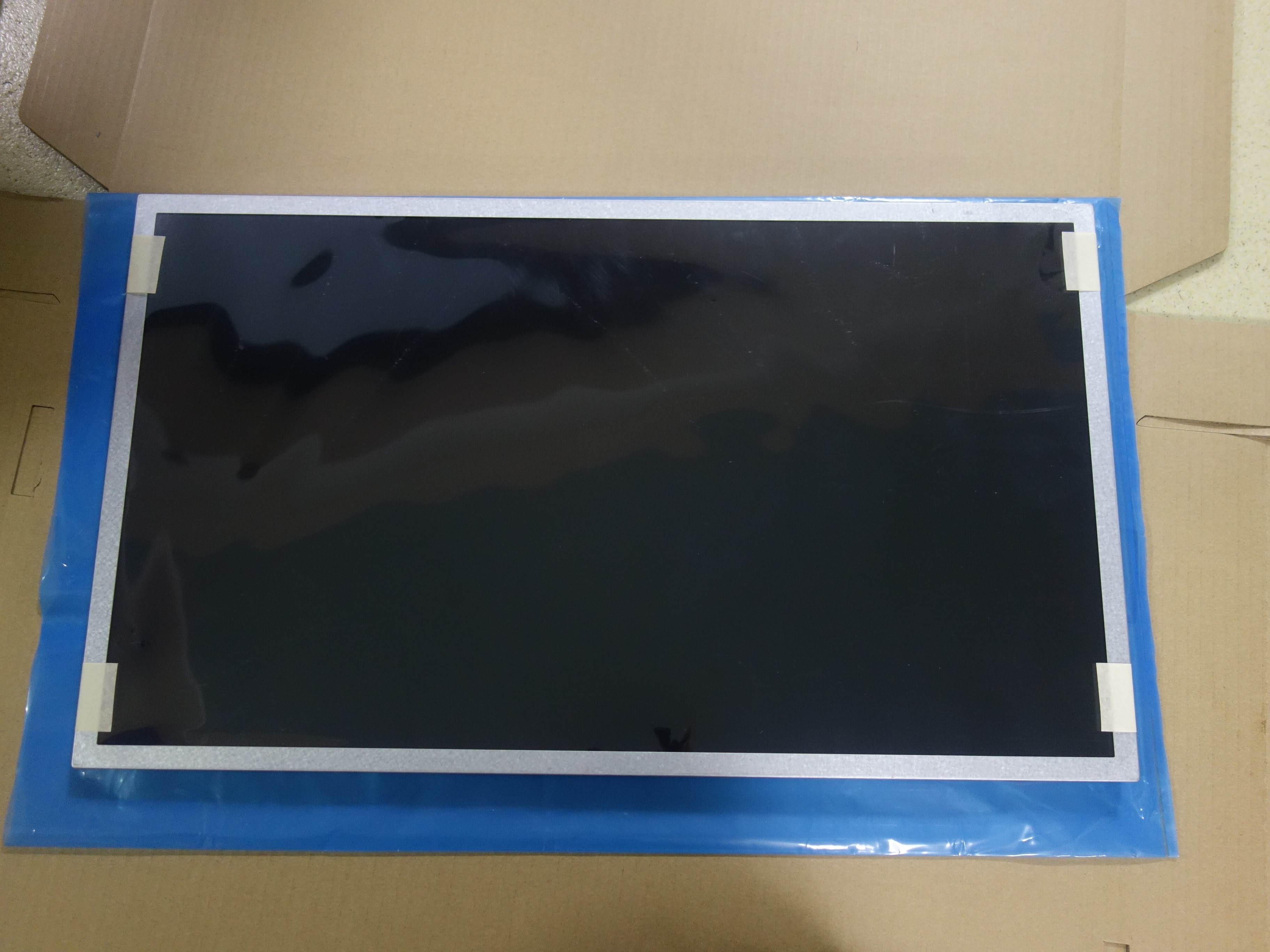

G270ZAN01.1 27" Outdoor High Brightness AUO LCD Panel

Ask Lasest Price
Brand Name :	AUO
Model Number :	G270ZAN01.1
Price :	pls contact us
Payment Terms :	T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :	1000
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

G270ZAN01.1 27" Outdoor High Brightness AUO LCD Panel

Quick Details

Model Number:	G270ZAN01.1
Screen Size	27.0 inch
Payment	T/T, Western Union,PAPLY,BANK TRANSFER
Color Depth	1.07B 94% NTSC
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Good View at	Symmetry

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H546DAN01.5	AUO	5.5"
H546DAN08.0	AUO	5.5"
B080XAN03.5	AUO	7.9"
B080XAN03.2	AUO	7.9"
H499TAN05.0	AUO	5.0"
H520DAN01.1	AUO	5.2"
B116XAN05.0 CELL	AUO	11.6"
H495TAN01.0	AUO	5.0"
H598QAN02.1	AUO	6.0"
M185XTN01.2 CELL	AUO	18.5"
H598QAN01.0	AUO	6.0"
T430HVN01.2 CELL	AUO	43"
H495TAN01.2	AUO	5.0"
T650QVN04.5 CELL	AUO	65"
M320DVN01.0 CELL	AUO	32.0"
M238HVN01.0 CELL	AUO	23.8"

AUO G270ZAN01.1 Mechanical Details

Pixel Features :	Resolution	3840(RGB)×2160, UHD	Dot Pitch(mm)	0.05175×0.15525 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.15525×0.15525 (H×V) [163PPI]
Mechanical Size :	Active Area(mm)	596.16(H) × 335.34(V)	Bezel Area(mm)	602.0(H) × 340.4(V)
Mechanical Size :	Outline Dim.(mm)	630(H) × 368.2(V)	Depth(mm)	22.9 (Typ.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	-
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	3.40Kgs (Typ.)	Treatment	Antiglare

AUO G270ZAN01.1 Interface Details

Signal Electrical :	Voltage Supply	12.0V (Typ.)		Current Supply	1.08/1.3A (Typ./Max.)
Signal Electrical :	Consumption	12.96/15.6W (Typ./Max.)
Signal Type :	V-by-One 8 lane			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JAE	FI-RTE51S-HF	1 pcs	51 pins	0.5 mm

Application Of AUO LCD Panel G270ZAN01.1

1. display

2. all-in-one machine

3. medical equipment

4. queuing machine

5. security cameras

6. cash register equipment

7. industrial equipment

8. on-board display

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.
