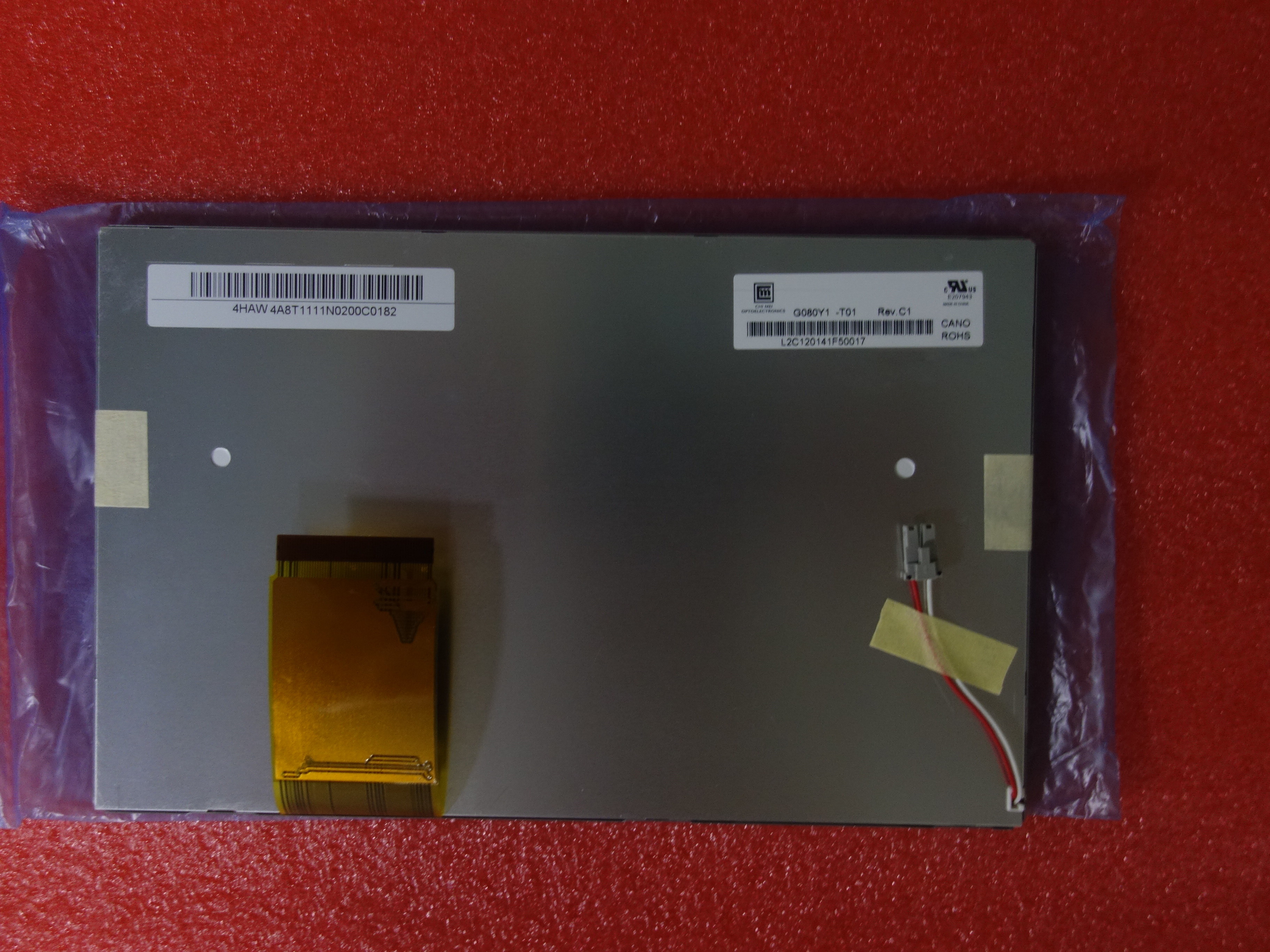

G080Y1-T01 Innolux 8" LCM 800×480 Industrial LCD Panel

Ask Lasest Price
Brand Name :	Innolux
Model Number :	G080Y1-T01
Price :	pls contact us
Payment Terms :	T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability :	1000
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

G080Y1-T01 Innolux 8" LCM 800×480 Industrial LCD Panel

Quick Details

Manufacturer	Chimei Innolux
Model Name	G080Y1-T01
Screen Size	8.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	800(RGB)×480 (WVGA) 117PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	173.4 × 104.04 (H×V)
Outline(mm)	190 × 120 (H×V×D)
Bezel Area(mm)	175.2 × 105.84 (H×V)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

HE080IA-01D	Innolux	8.0"
HE070IA-04F	Innolux	7.0"
N173FGE-P23	Innolux	17.3"
N116BGE-P32	Innolux	11.6"
N116BGE-P42	Innolux	11.6"
M220ZGE-P01	Innolux	22.0"
V236BJ1-P01	Innolux	23.6"
CT024TN01 V.X	Innolux	2.4"
M215HGE-P02	Innolux	21.5"
F03003-05L	Innolux	3.0"
EE027NA-02A	Innolux	2.7"
M236HGE-P02	Innolux	23.6"
M215HGE-P03	Innolux	21.5"
V236H3-PS1	Innolux	23.6"
HE050NA-01F	Innolux	5.0"
M236HGE-P01	Innolux	23.6"
M215HGE-P01	Innolux	21.5"
AT070TN90	Innolux	7.0"
PH030NA-04A	Innolux	3.0"
EE090NA-01C	Innolux	9.0"
EE080NA-06A	Innolux	8.0"

Chimei Innolux G080Y1-T01 Mechanical Features

Screen Size :	8.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	800(RGB)×480, WVGA	RGB Vertical Stripe	0.07225×0.21675 mm	0.21675×0.21675 mm [117PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	173.4×104.04 mm	175.2×105.84 mm	190×120 mm	5.06±0.3 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	15:9	Landscape type	-
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	172g (Typ.)	-	Antiglare, Hard coating (3H)

Chimei Innolux G080Y1-T01 Interface Features


Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)		22.8/36.5/0.206/0.211mA (Typ.)(ICC/IDD/IGG/IEE)			-
Voltage for Display Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	TTL (1 ch, 6/8-bit)			FPC		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :			1 pcs	60 pins	0.5 mm

Application Of Chimei Innolux G080Y1-T01

1)Medical Instrument

2)Adversting Machine

3)Eiectronic Watch

4 )Communication Equipment

5 )Military Products

Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months (3) We will do our best to solve any possible problem for your after sale. Please contact with warranty for every item, depend on the different item.
us.

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange

professional sales team to follow up your case.
