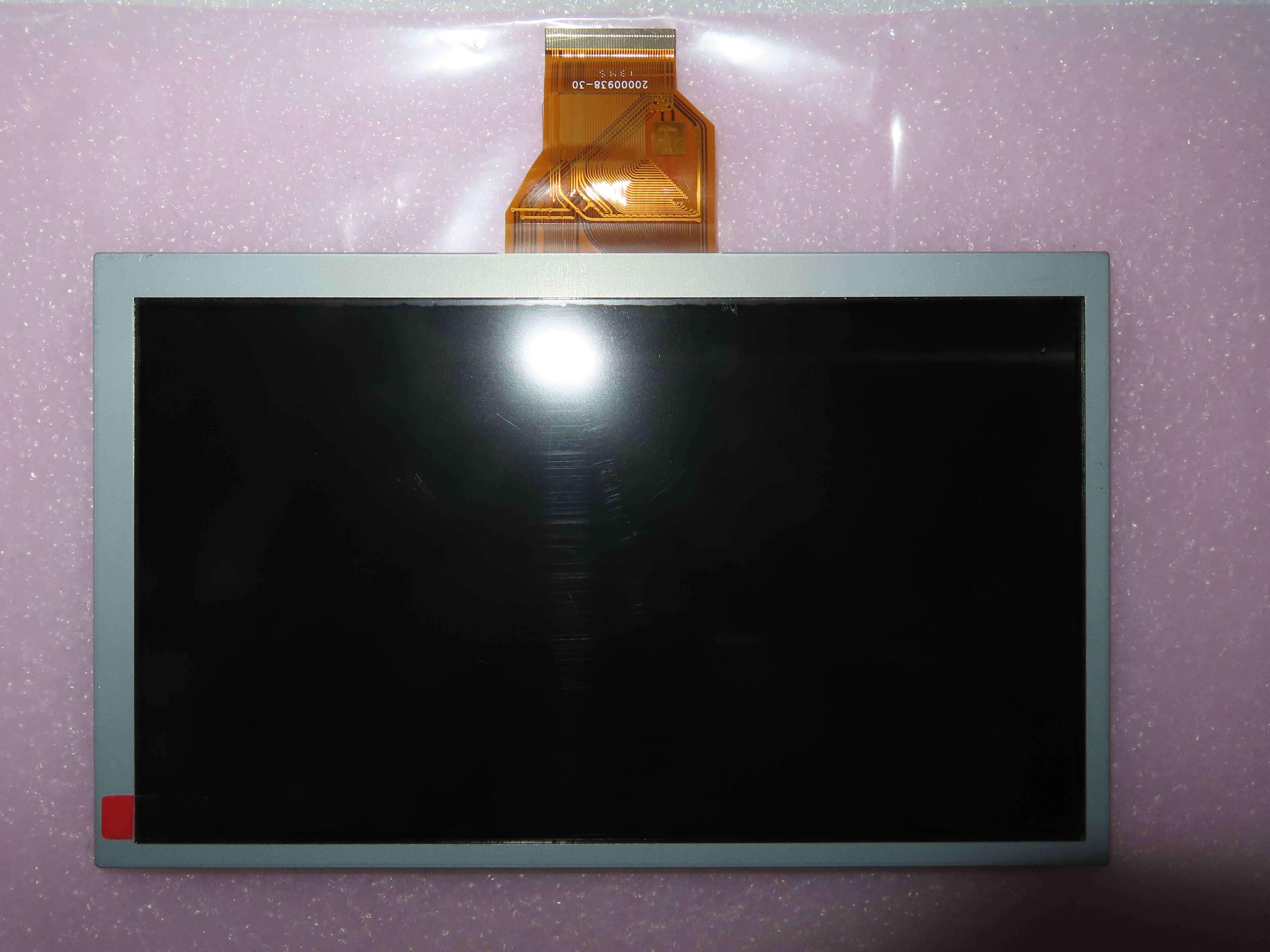

Description Of Innolux LCD Panel
AT080TN64 supports display 800(RGB)×480 (WVGA) with aspect ratio of
16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As
for mechanical detail, it features active area of
176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm,
viewing area size of 180.1(W)×103.4(H) mm, with surface treament of
Antiglare, net weight of 245g (Typ.).
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| N156BGE-P41 | Innolux | 15.6" |
| V500HJ1-PE8 | Innolux | 50" |
| V400HJ6-PE1 | Innolux | 40" |
| CD040JN13 | Innolux | 4.0" |
| HE070IA-04M | Innolux | 7.0" |
| M195FGE-P03 | Innolux | 19.5" |
| M195FGE-P02 | Innolux | 19.5" |
| HB050NA-07A | Innolux | 5.0" |
| F04013-04Z | Innolux | 4.0" |
| F05005-04U | Innolux | 5.0" |
| F05005-03U | Innolux | 5.0" |
| F05005-02U | Innolux | 5.0" |
| F05005-01U | Innolux | 5.0" |
| PP050IC-01B | Innolux | 5.0" |
| V650HP1-PS6 Rev.C1 | Innolux | 65" |
| M220ZGE-P02 | Innolux | 22.0" |
| V420HJ2-P01 | Innolux | 42" |
| F05501-01Z | Innolux | 5.5" |
| EE101IA-01D | Innolux | 10.1" |
| HE070IA-02E | Innolux | 7.0" |
| HE101NA-02C | Innolux | 10.1" |
| ZE090NA-01B | Innolux | 9.0" |
| HE080NA-04I | Innolux | 8.0" |
| HE070NA-13C | Innolux | 7.0" |
| HE070NA-13B | Innolux | 7.0" |
| HE080IA-01D | Innolux | 8.0" |
Chimei Innolux AT080TN64 Specification Details
Basic Info : Panel Brand Chimei Innolux Panel Model AT080TN64
Diagonal Size 8.0" Application Automotive Display
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -30 ~ 85 °C Storage Temp. -30 ~ 85 °C
RoHS State RoHS Compliance Vibration Rating -
Specific Features : Wide TemperatureWLED BacklightU/D,L/R
Reverse6/8 bitMat
Chimei Innolux AT080TN64 Optical Details| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + Dithering) |
|---|
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
Chimei Innolux AT080TN64 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤0.1DVDD≤0.3DVDD; 0.7DVDD≤0.9DVDD≤DVDD |
|---|
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) |
|---|
| Consumption | 0.226W (Typ.) |
| Interface Features : | Type | FPC | Position | - | |
|---|
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
|---|
| | 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A |
Application Of Chimei Innolux AT080TN64
1. Automotive Application
2. Industrail Security
3. Intelligent Interaction
4. Smart Home Appliances
5.Digital Signage
