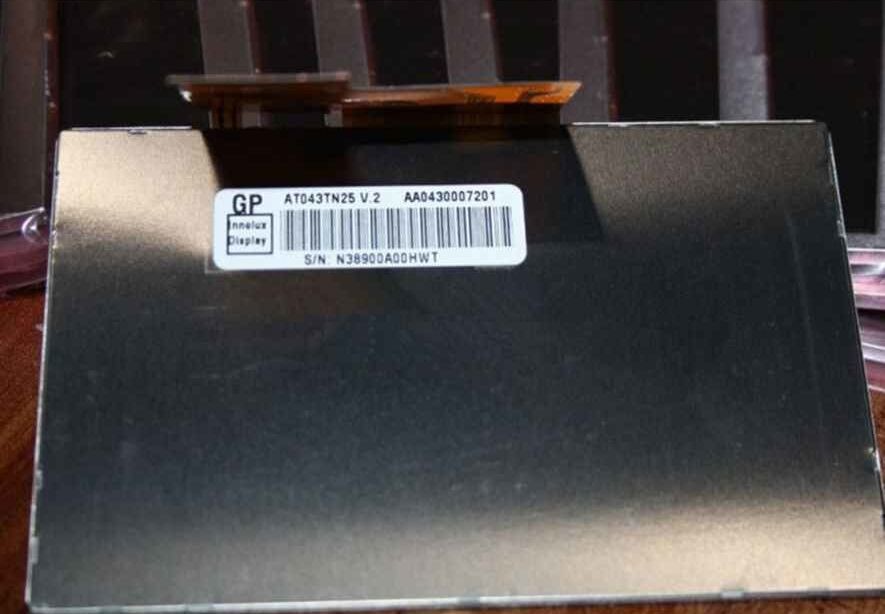

AT043TN25 V.2 Innolux 4.3" LCM 480×272 Automotive Display LCD Panel

Ask Lasest Price
Brand Name :	Innolux
Model Number :	AT043TN25 V.2
Price :	pls contact us
Payment Terms :	T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability :	1000
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

AT043TN25 V.2 Innolux 4.3" LCM 480×272 Automotive Display LCD Panel

4.3 inch Description Of Innolux LCD Panel

Chimei Innolux Corporation (hereafter called Chimei Innolux)AT043TN25 V2 (Alias: AT043TN25 V2) is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.

Chimei Innolux AT043TN25 V.2 Specification Details

Basic Detail :	Manufacturer		Model Name	AT043TN25 V.2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	AT043TN25 V2
	Panel Size	4.3 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :
Remarks :	2 in 1 FPC

Chimei Innolux AT043TN25 V.2 Optical Details

Basic Information :

Luminance

500 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Good View at

6 o'clock

Response Speed

10/15 (Typ.)(Tr/Td) ms

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Color Performance :

Chromaticity

Wx:0.310; Wy:0.330

Support Color

16.7M (8-bit)

Color Temperature

6638K

White Variation

1.33/1.43 (Typ./Max.)(9 points)

Panel Size :	4.3"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	480(RGB)×272 [WQVGA]	RGB Vertical Stripe	0.198×0.198 [128PPI]	0.066×0.198
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	95.04(H) × 53.856(V)	98.7(H) × 57.5(V)	105.5(H) × 67.2(V)	2.9±0.2 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	-
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	45.0g (Typ.)	-	Antiglare

Application Of Chimei Innolux AT043TN25 V.2

1. Automotive Display

2. Protable Navigation

3. Health care

4. electron

5. astronautic flight

6. electric

Pre-sales service :

1. Our team design and make solutions based on different requirements from different customers.

2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer customer to keep fastly reply.

Please let us know your requirements on panels:

1), Size

2), Resolution

3), Brightness/Luminance

4), Viewing Angle

5), Light Source

6), Signal Interface: LVDS or eDP or V-by-One

or tell us the exact model # for reference.

we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
