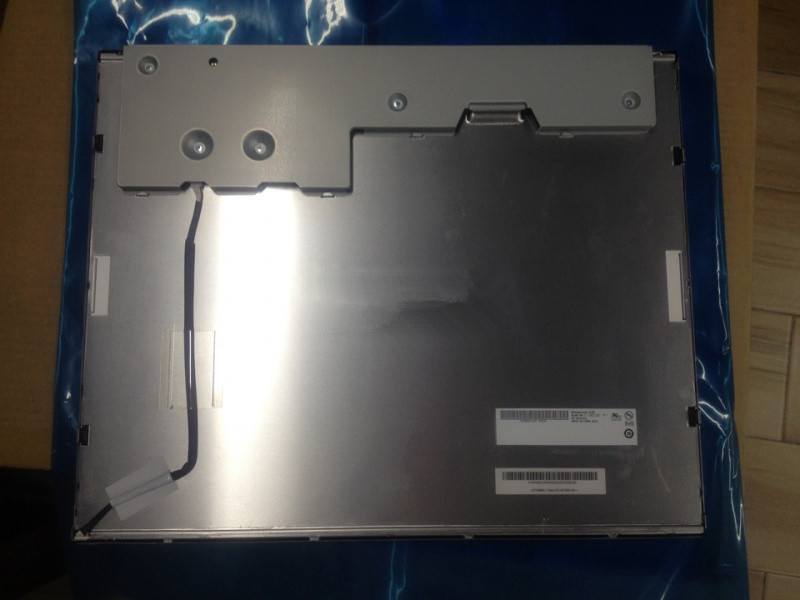

WLED Backlight Industrial G190EG01 V1 19" LCM AUO LCD Panel

Description Of AUO LCD Panel

G190EG01 V1 (Alias: G190EG01 V.1) is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.3 which was released out on 7 1 2013, G190EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.5(V)±0.46Kgs

AUO G190EG01 V1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	350 (Typ.)	85/85/80/80 (Typ.)(CR≥10)	3.6/1.4 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	94%	73%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25/1.33 (Typ./Max.)(9 points)

AUO G190EG01 V1 Mechanical Features

Panel Size :	19.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
	1280(RGB)×1024 [SXGA]	RGB Vertical Stripe	0.294×0.294 [86PPI]	0.098×0.294
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
	376.32(H) × 301.056(V)	380.32(H) × 305.06(V)	396(H) × 324(V)	18.3 (Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
	Flat Rectangle	Landscape type	5:4 (H:V)	-
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
	1.67Kgs (Typ.)	-	Antiglare, Hard coating (3H)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

T320HVN02.1 CELL	AUO	31.5"
M270DAN01.1 CELL	AUO	27.0"
T500QVN03.3 CELL	AUO	50"
T500QVN03.0 CELL	AUO	50"
H546DAN07.3	AUO	5.5"
M270HVN02.3 CELL	AUO	27.0"
M270HVN02.2 CELL	AUO	27.0"
M270HVN02.1 CELL	AUO	27.0"
M270DTN01.0 CELL	AUO	27.0"
T320HVN05.7 CELL	AUO	31.5"
T320HVN05.4 CELL	AUO	31.5"
T215HVN01.2 CELL	AUO	21.5"
B070ATN02.0 CELL	AUO	7.0"
M238DAN01.3 CELL	AUO	23.8"
B070AAN01.0	AUO	7.0"
M238DAN01.1 CELL	AUO	23.8"
M270DAN02.0 CELL	AUO	27.0"

Application Of AUO LCD Panel G190EG01 V1

1. Display Unit

2. Security Cameras

3. Cash register equipment

4. All in one machine

5. Industrial Equipment

6. Queuing machine

7. Medical Equipment

8. On-board display
