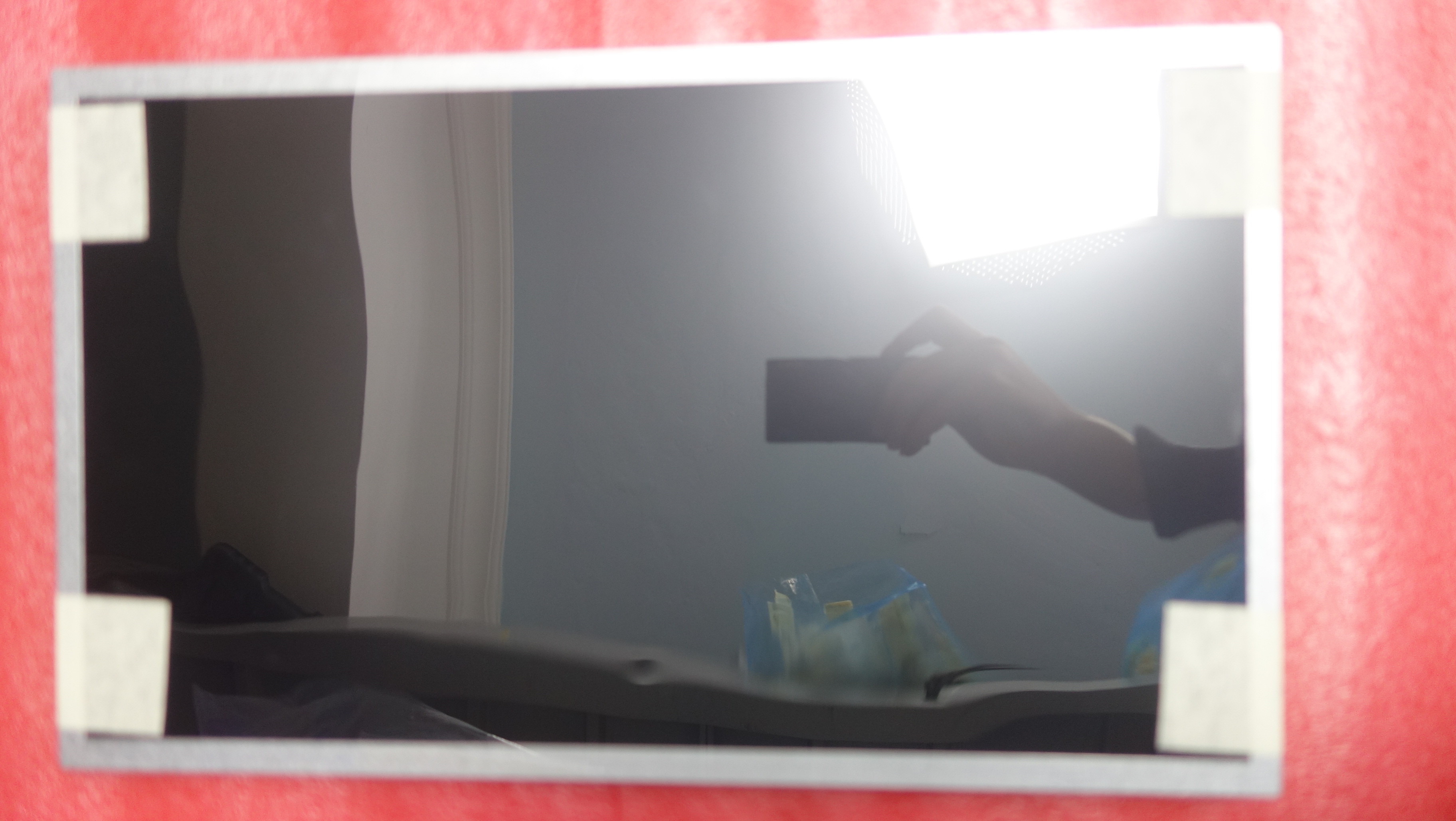

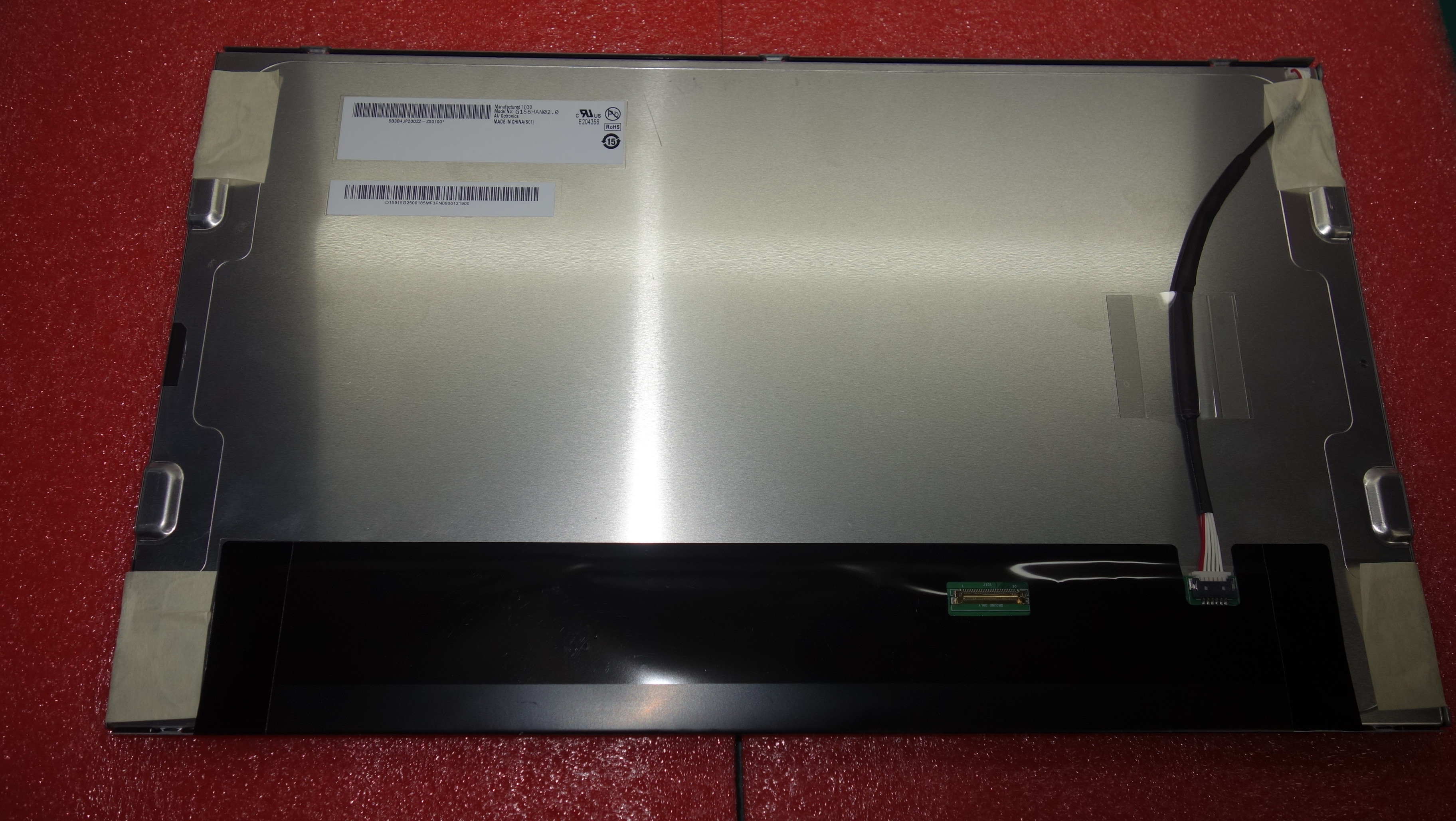

Sunlight Readable G156HAN02.0 15.6" LCM AUO LCD Panel

Description Of AUO LCD Panel

G156HAN02.0 (Product Code: AUO30ED) is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HAN02.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.05975×0.17925 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 344.16(H) × 193.59(V) Bezel Area(mm) 347.06(H) × 196.49(V) Outline Dim.(mm) 363.8(H) × 215.9(V) Depth(mm) 8.8±0.5
Outline Features :	Form Style Flat Rectangle Shape Style - Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 600/660g (Typ./Max.) Treatment Antiglare, Hard coating (3H)

AUO G156HAN02.0 Optical Details

Basic Information :	Luminance(cd/m²) 500 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AHVA, Normally Black, Transmissive Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.2M (6-bit + FRC) Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 75% sRGB 98% coverage Adobe RGB 77% coverage DCI-P3 78% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Application Of AUO LCD Panel G156HAN02.0

1. KIOSK

2. POS

3. ATM

4. INDUSTRIAL

5. MEDICAL

6. TRANSPORT

>> Quality ensurance
100% AUO original and brand new!

warranty :12 months !You can enjoy the real panels directly from AUO factory;

>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!

>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
