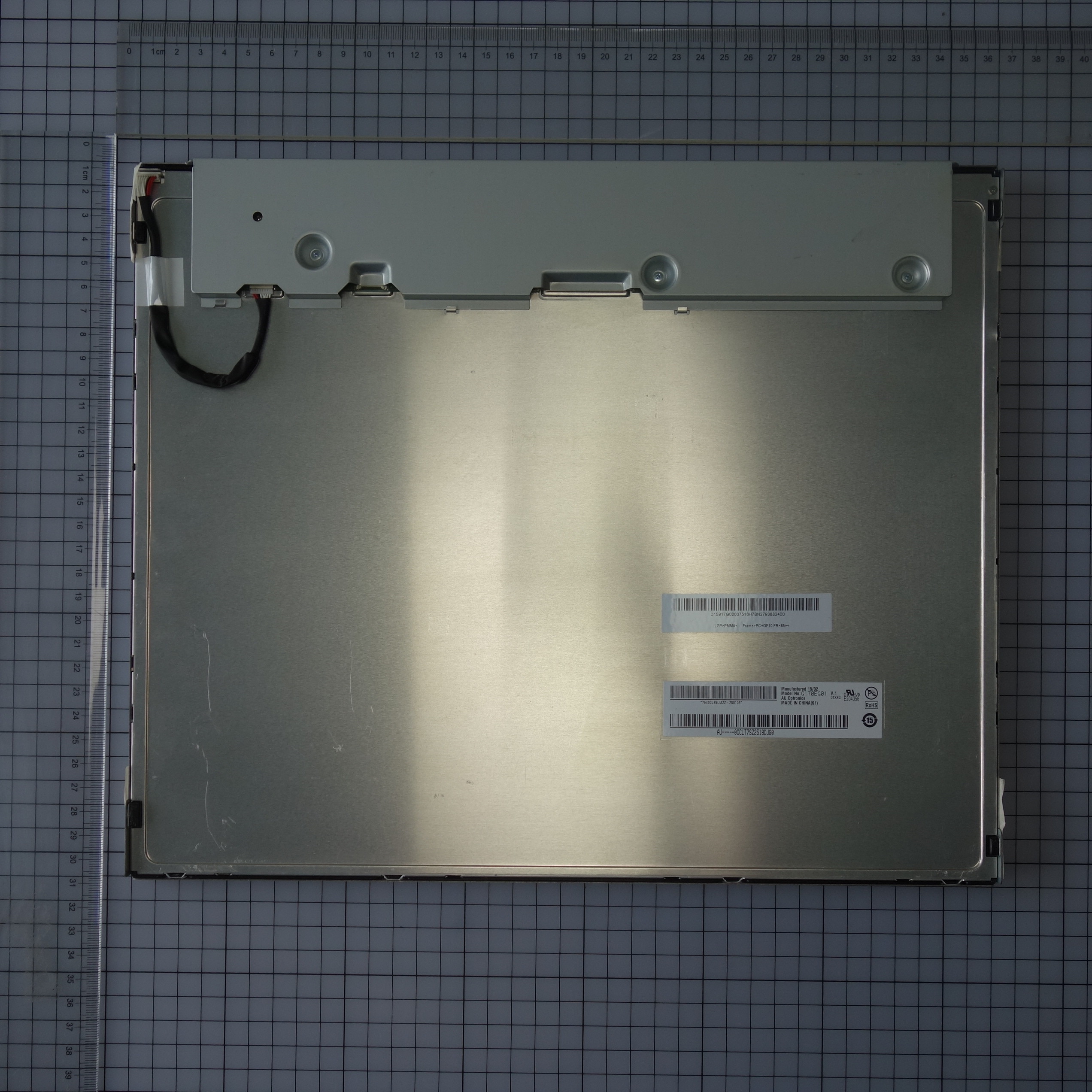

17" 1280×1024 G170EG01 V1 LCM AUO LCD Display Panel

Description Of AUO LCD Panel

G170EG01 V1 (Alias: G170EG01 V.1) is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.5 which was released out on 1 15 2014, G170EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.

Feature Of AUO LCD Panel

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	1.05/1.16A (Typ./Max.)
	Consumption	5.25/5.8W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
	JAE	FI-XB30SSL-HF15	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-190A

Basic Information :	Luminance(cd/m²)	350 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	20/10 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	93% coverage
	Adobe RGB	73% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

Application Of AUO LCD Panel G170EG01 V1

1. broadcasting securlty

2. factory automation marine

3. MFP

4. banking retail self-service

Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams

>> Quality ensurance
100% AUO original and brand new!

warranty :12 months !You can enjoy the real panels directly from AUO factory;

>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!

>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !

Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
