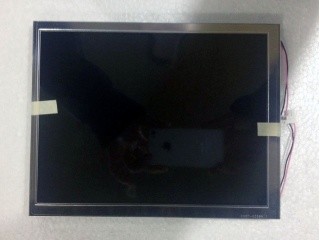

8.4 Inch 20 Pins Connector TFT LCD Display LB084S01-TL01 Without Driver

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Ask Lasest Price
Brand Name :	LG
Model Number :	LB084S01-TL01
Certification :	ISO9001
Payment Terms :	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :	2600
Delivery Time :	1-3 Working Days

Add to Cart

1.LB084S01-TL01 Optical Details:

Basic Information :	Luminance	600 cd/m² (Typ.)	Contrast Ratio	600 : 1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	7/18 (Typ.)(Tr/Td) (ms)
	Viewing Angle	75/75/70/50 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	44%	sRGB	61% coverage
	Adobe RGB	46% coverage	DCI-P3	45% coverage
	Rec.2020	33% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

2.LB084S01-TL01 Mechanical Details:

Pixel Features :	Number of Pixel	800(RGB)×600 [SVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.071×0.213 mm	Pixel Pitch(W×H)	0.213×0.213 mm [119PPI]
Physical Size :	Active Viewing	170.4(W)×127.8(H) mm	Overall Dim.	189.5(W)×148.6(H) mm
Physical Size :	Bezel Opening	173.0(W)×130.6(H) mm	Overall Depth	7.0/9.4 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style	-
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass	320/330g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

3.LB084S01-TL01 Interface Details:

4.LB084S01-TL01 Lightting Details:

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type (Top and Bottom)
Lamp Features:	Exchange	-	Amount	2 pcs	Life	30K(Typ.) (Hours)
Lamp Electrical :	Input Current	3.0/7.0/8.0mA (Min./Typ./Max.)		Input Voltage	380/390/480V (Min./Typ./Max.)
	Frequency	30/60/80KHz (Min./Typ./Max.)		Turn-on Voltage	800/1050V (Max.)(Ta=+25/0℃)
	Consumption	5.46/6.01W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHSR-02VS-2	2 pcs	3.5 mm	2 pins	BLL-2PINS-HL
Backlight Driver :	No

5.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
