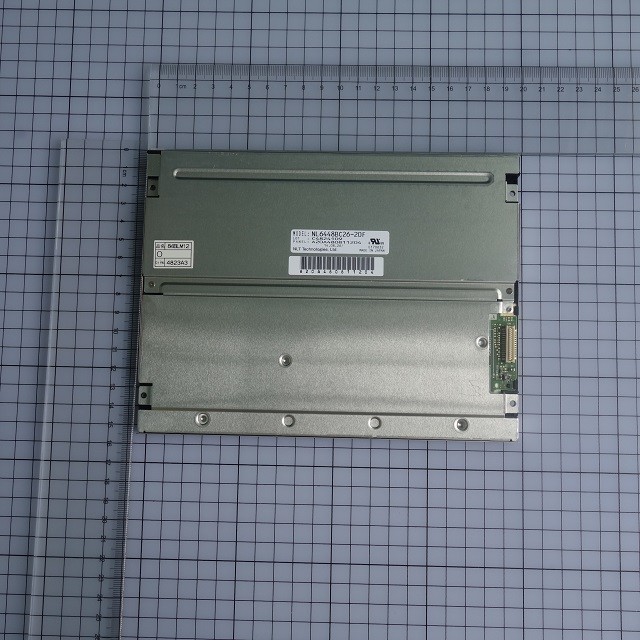

9S4P WLED Backlight NL6448BC26-20F 8.4 Inch TFT LCD Panel

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Ask Lasest Price
Brand Name :	NEC
Model Number :	NL6448BC26-20F
Certification :	ISO9001
Payment Terms :	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :	1800
Delivery Time :	1-3 Working Days

Add to Cart

9S4P WLED Backlight NL6448BC26-20F 8.4 Inch TFT LCD Panel

1.NL6448BC26-20F Mechanical Details:

Pixel Features :	Number of Pixel	640(RGB)×480 [VGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.089×0.267 mm	Pixel Pitch(W×H)	0.267×0.267 mm [95PPI]
Physical Size :	Active Viewing	170.88(W)×128.16(H) mm	Overall Dim.	200(W)×152(H) mm
Physical Size :	Bezel Opening	174.0(W)×131.4(H) mm	Overall Depth	8.2±0.5 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape / Portrait
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style	-
Fixation :	Face mounting holes (4-Ф2.8) on left, right bezel
Other Detail :	Mass	330/350g (Typ./Max.)	Surface	Clear, Hard coating (3H)

2.NL6448BC26-20F Optical Details:

Basic Information :	Luminance	800 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	3/15 (Typ.)(Tr/Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	40%	sRGB	56% coverage
	Adobe RGB	42% coverage	DCI-P3	42% coverage
	Rec.2020	30% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity	-

3.NL6448BC26-20F Lightting Details:

4.NL6448BC26-20F Interface Details:

5.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
