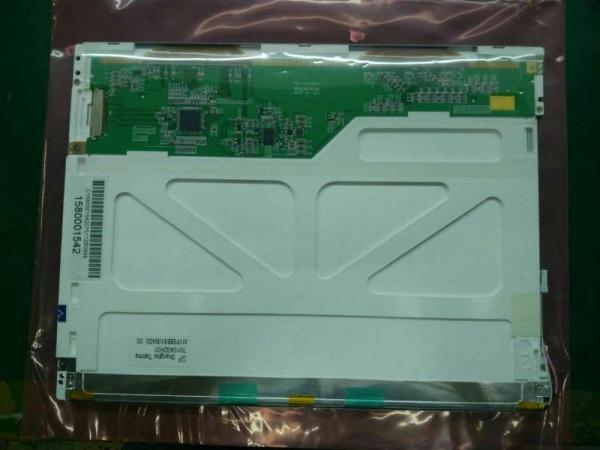

    800*600 Resolution Small Lcd Panel 10.4 Inch Anti Glare TM104SDH03 For Industrial

    Ask Lasest Price
    Brand Name : Tianma
    Model Number : TM104SDH03
    Certification : ISO9001
    Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
    Supply Ability : 300
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    800*600 Resolution Small Lcd Panel 10.4 Inch Anti Glare TM104SDH03 For Industrial

    1. TIANMA TM104SDH03 Mechanical Details

    Pixel Features :Pixel Format800(RGB)×600 [SVGA]Dot Pitch0.088×0.264 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.264×0.264 mm (H×V)
    Mechanical Size :Display Area211.2×158.4 mm (H×V)Bezel Area214.8×161.8 mm (H×V)
    Outline Dim.243×179.4 mm (H×V)Outline Depth8.5 (Max.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio4:3 (H:V)Shape Style-
    Holes & Brackets :Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
    Other Features :Weight433g (Typ.)SurfaceAntiglare, Hard coating (3H)


    2. TIANMA TM104SDH03 Optical Details

    Basic Information :Brightness400 cd/m² (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Viewing Angle70/70/60/70 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction12 o'clockResponse Time10/15 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.305; Wy:0.345Color Numbers262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature6760KWhite Uniformity1.25/1.43 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio50%sRGB67% coverage
    Adobe RGB52% coverageDCI-P351% coverage
    Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



    3. TIANMA TM104SDH03 Backlight Details

    Back-light Features:Lamp ShapeArrayLamp TypeWLEDLife Time50K(Typ.) (Hours)
    Replacement-Amount5S8PPositionEdge light type
    Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
    Interface Detail :BrandModelPin PitchPinsAmountConfiguration
    E&T3808K-F05N-03R1.25 mm5 pins1 pcs
    Driver Electrical :Voltage Input12/14.25/16.5V (Min./Typ./Max.)Current Input0.2A (Typ.)
    Consumption2.85W (Typ.)


    4. TIANMA TM104SDH03 Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current InputTBD
    Interface Features :TypeConnectorPosition-
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    STARCONN107A20-0021RA-G3-R1.0 mm20 pins1 pcsLVDS-20P1C8B-080C



    5.Our Service



    6.FAQ

    Q1:What's the quality of your LCD Panel?
    A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
    Q2:What is your return and refund policy?
    A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
    Q3:How long is the lead time?
    A:The lead time is about 2-3 working days after receipt of payment.
    Q4:Do you accept sample order?
    A:Yes,sample order is welcome.
    Q5:How can I get the quotation?
    A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
