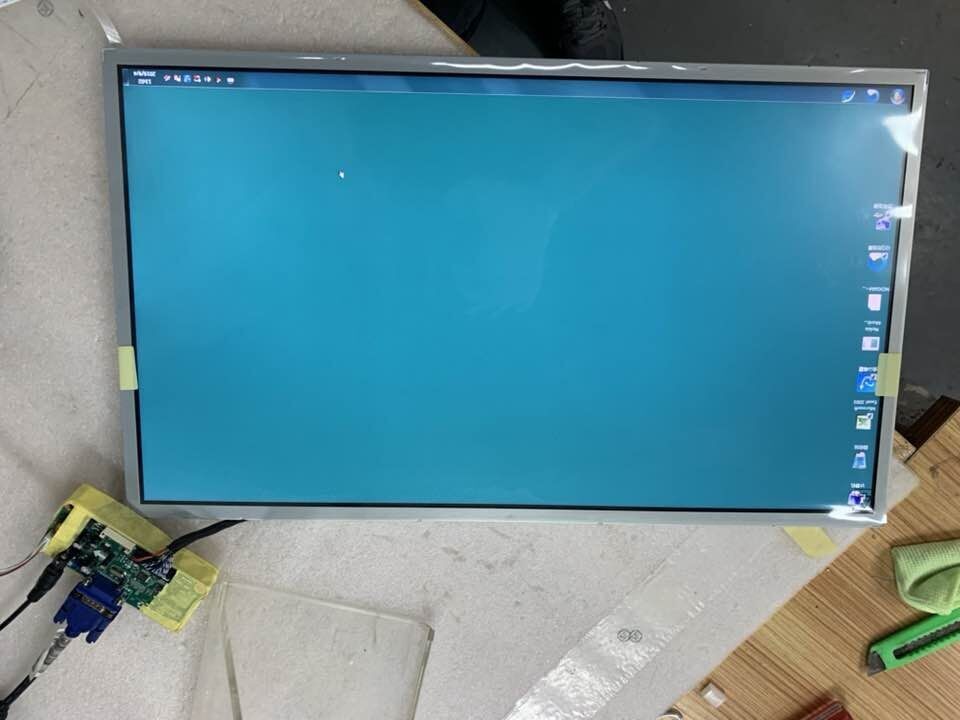

1920*1080 LG LCD Panel 23 Inch A-Si TFT-LCD LM230WF3-SLD1 For Desktop Monitor

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Name: 19201080 LG LCD Panel 23 Inch ASi TFTLCD LM230WF3SLD1 For Desktop Monitor
Brand: LG Display
Price: 1 USD

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM230WF3-SLD1
Certification :	ISO9001
Payment Terms :	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :	500PCS
Delivery Time :	1-3 Working Days

Add to Cart

1.LG Display LM230WF3-SLD1 Mechanical Features

Screen Size :	23.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0884×0.2652 mm	0.2652×0.2652 mm
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	509.184×286.416 mm	513.8×291.0 mm	533.2×312 mm	11.0 (Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	-
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	1.58/1.66Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel

2.LG Display LM230WF3-SLD1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	e-IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	97%	75%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.33 (Max.)(9 points)

3.LG Display LM230WF3-SLD1 Backlight Features

4.Service

5.FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
