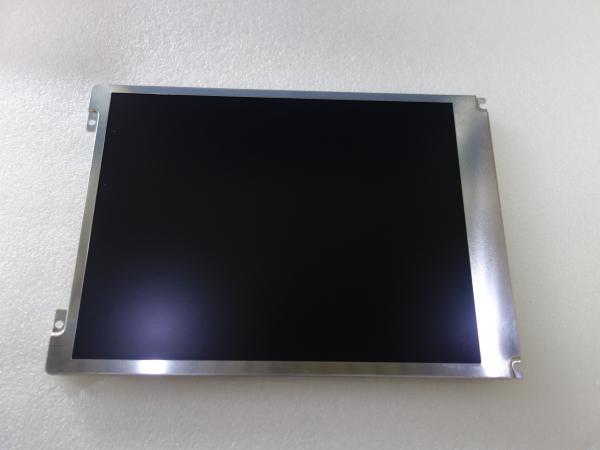

800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

Ask Lasest Price
Brand Name :	AUO
Model Number :	G070VTN01.0
Certification :	ISO9001
Payment Terms :	T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Add to Cart

Product Details
Company Profile

800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

1.General Description

This specification applies to the 7.0 inch color TFT LCD module G070VTN01.0.

G070VTN01.0 is built in timing controller and LVDS interface. The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). G070VTN01.0 is a RoHS product.

2. Display Characteristics

2.1AUO G070VTN01.0 Optical Details

Basic Detail :	Luminance:300 cd/m² (Typ.) Contrast Ratio:500:1 (Typ.) (Transmissive) Good View at:6 o'clock Response Speed:12/18 (Typ.)(Tr/Td) ms Viewing Angle:65/65/50/60 (Typ.)(CR≥10) Operating Mode:TN, Normally White, Transmissive
Color Performance :	Chromaticity:Wx:0.310; Wy:0.330 Support Color:262K/16.2M (6-bit / 6-bit + FRC) Color Temperature:6638K White Variation:1.30 (Max.)(5 points)

2.2AUO G070VTN01.0 Mechanical Details

Pixel Features :	Number of Pixel:800×480(RGB), WVGA Arrangement:RGB Horizontal Stripe Dot Pitch(W×H):0.1905×0.0635 mm Pixel Pitch(W×H):0.1905×0.1905 mm
Physical Size :	Active Viewing:152.4(W)×91.44(H) mm Overall Dim.:170(W)×111(H) mm Bezel Opening:155.2(W)×92.84(H) mm Overall Depth:8.0±0.3 mm
Outline Features :	Form Shape:Flat Rectangle Orientation:Landscape type Aspect Ratio(W:H):15:9 Shape Style:-
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass:180g Surface:Antiglare, Hard coating (3H)

3.Service

4.FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
