1．Scope of application

Reflective active-matrix with slightly transmissive type memory liquid crystal display module with 128 x128 panel which uses CG silicon thin film transistor.

2．Overview

・ 1.28 inch 128 x 128 monochrome HR-TFT transflective panel

・ Transmissive mode is available by implemention with backlight. (Transmition ratio is around 0.2%)

・ 128x 128 dot stripe arrangement

・ Display control with serial data signal communication

・ Arbitrary gate line is selectable to data update

・ Internal 1bit memory within the panel for data memory

・ Thin, light and compact module with monolithic technology

・ Super low power consumption TFT panel

・ With FPC

3．Mechanical specification

Table 3 Module mechanical specification table

4.Carton storage conditions

(1) Max number stacked: 8pcs Max number stored: 2240pcs

(2) Environment

・ Temperature 0～40°C

・Humidity Less than 60% RH(at 40°C)

There should be no condensation at low temperatures even with high humidity.

・Atmosphere No toxic gases that significantly corrode the electronic parts and wiring material such as acid and alkali should be detected.

・Period Around 3 months

・Unpacking In order to prevent electrostatic damage to TFT modules, room humidity should be made over

50% RH and take effective measure such as use of earth when opening the package.

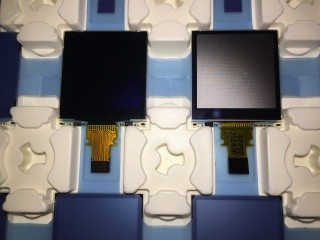

5. Packing

The packing condition is shown in Figure 10-2.

The packaging is designed such that the module does not break during transit.
