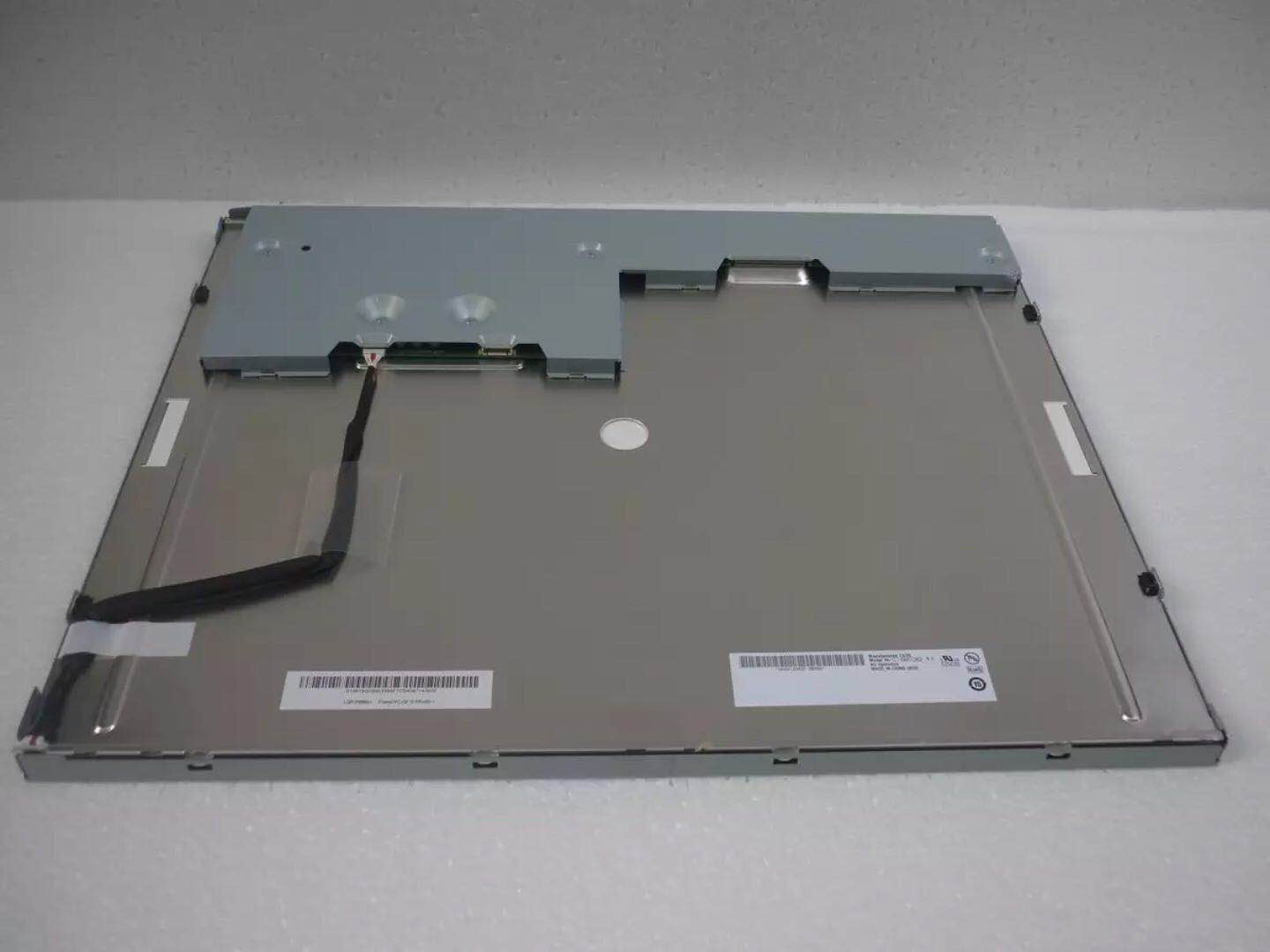

    60Hz Frame Rate AUO LCD Panel G190EG02 V2 19 Inch LCM 1280×1024 Touch Screen

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G190EG02 V2
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    60Hz Frame Rate AUO LCD Panel G190EG02 V2 19 Inch LCM 1280×1024 Touch Screen

    G190EG02 V2 AUO 19 inch LCM 1280×1024 Touch screen


    AUO G190EG02 V2 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    300 (Typ.)89/89/89/89 (Typ.)(CR≥10)15/5 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    SymmetryMVA, Normally Black, Transmissive2000 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color GamutDisplay ColorsWhite Coordinate
    70% NTSC (CIE1931)16.7M (8-bit)X:0.313; Y:0.329
    White Variation :1.25/1.33 (Typ./Max.)(9 points)

    AUO G190EG02 V1 Mechanical Features

    Panel Size :19.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1280(RGB)×1024 [SXGA]RGB Vertical Stripe0.294×0.2940.098×0.294
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    376.32(H) × 301.056(V)380.32(H) × 305.06(V)396(H) × 324(V)18.9 (Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type5:4 (H:V)-
    Mounting :Side mounting holes (4-M3) on left, right bezel
    Other Detail :WeightPanel CoverTreatment
    1.75Kgs (Typ.)-Antiglare

    AUO G190EG02 V1 Electronics Features

    Reverse Scan :No
    Vertical Frequency :60Hz
    Power Consumption :30.6W

    We also have other industrial LCD panels, pls contact to us for the further information
