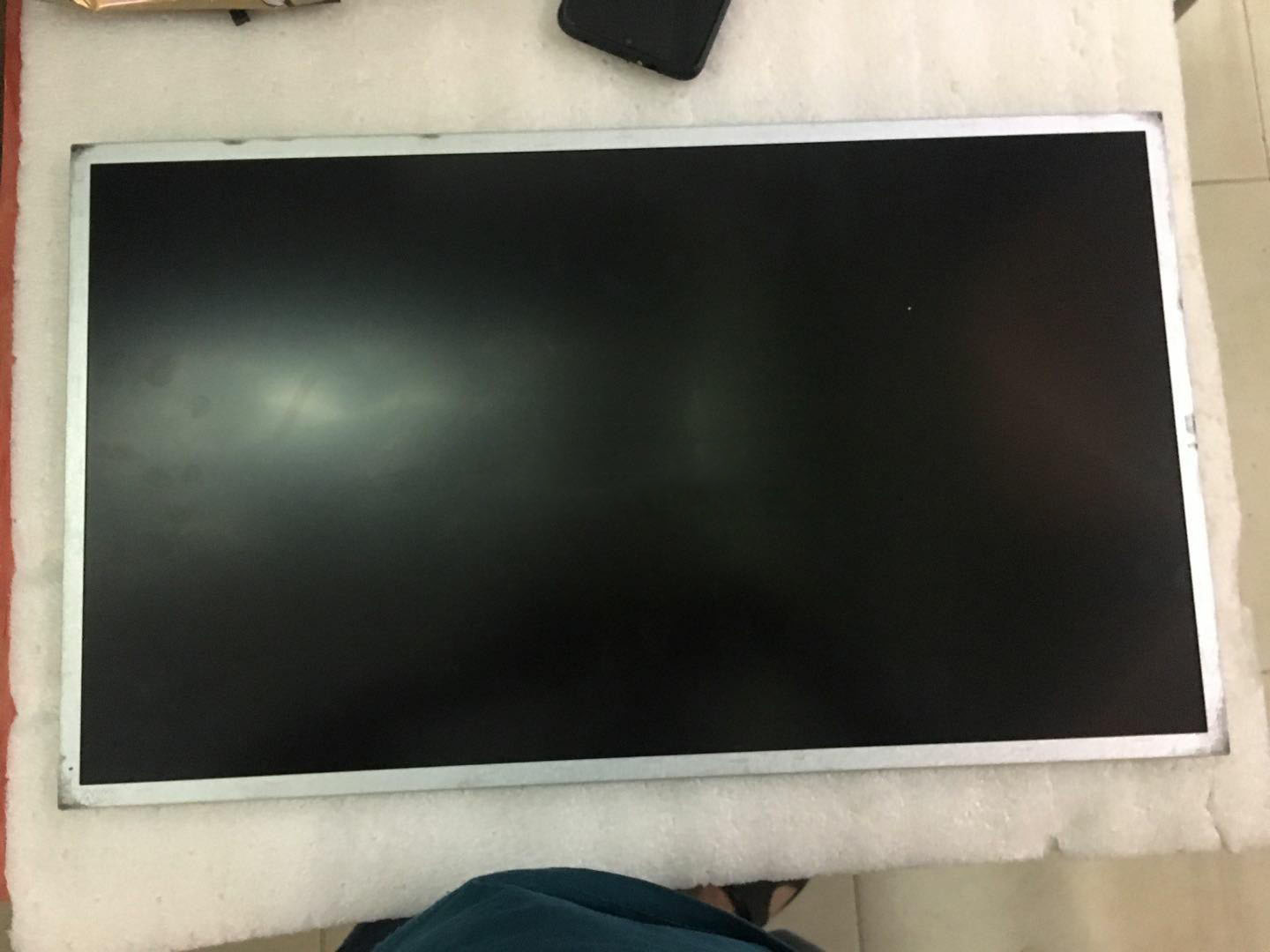

    Anti Glare Surface AUO LCD Panel G230HAN01.0 AUO 23 Inch LCM 1920×1080 Screen

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G230HAN01.0
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Anti Glare Surface AUO LCD Panel G230HAN01.0 AUO 23 Inch LCM 1920×1080 Screen

    G230HAN01.0 AUO 23 inch LCM 1920×1080 LCD screen


    Panel ModelG230HAN01.0
    Panel BrandAUO
    Descritiona-Si TFT-LCD ,23.0 inch, 1920×1080
    Panel Typea-Si TFT-LCD
    Display ModeAHVA, Normally Black, Transmissive
    Active Area509.184×286.416 mm
    Outline533.2×312×11 mm
    SurfaceAntiglare
    Contrast Ratio1000:1 (Typ.)
    Display Colors16.7M (8-bit) , CIE1931 72%
    Response Time8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency60Hz
    Lamp TypeWLED
    Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins
    Input Voltage5.0V (Typ.)

    G230HAN01.0 Basic Information

    Panel ModelG230HAN01.0
    Panel BrandAUO
    Descritiona-Si TFT-LCD ,23.0 inch, 1920×1080
    Panel Typea-Si TFT-LCD
    Operating Temperature0 ~ 50 °C
    Storage Temperature-20 ~ 60 °C

    G230HAN01.0 Mechanical Features

    Dot Resolution1920(RGB)×1080 (FHD)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density95 PPI
    Aspect Ratio16:9 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.0884×0.2652 mm (H×V)
    Pixel Pitch0.2652×0.2652 mm (H×V)
    SurfaceAntiglare
    Active Area509.184×286.416 mm (H×V)
    Outline Dimension533.2×312 mm (H×V)
    Outline Depth10.5±0.5 mm
    Holes & BracketsSide mounting holes (4-M3) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout

    We also have other industrial LCD panels, pls contact to us for the further information
