G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate from wholesalers

    Buy cheap G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate from wholesalers
    • Buy cheap G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate from wholesalers
    • Buy cheap G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate from wholesalers

    G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G185HAN01.1
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    G185HAN01.1 AUO Display Panel 18.5 Inch LCM 1920×1080 LCD Module 60Hz Frame Rate

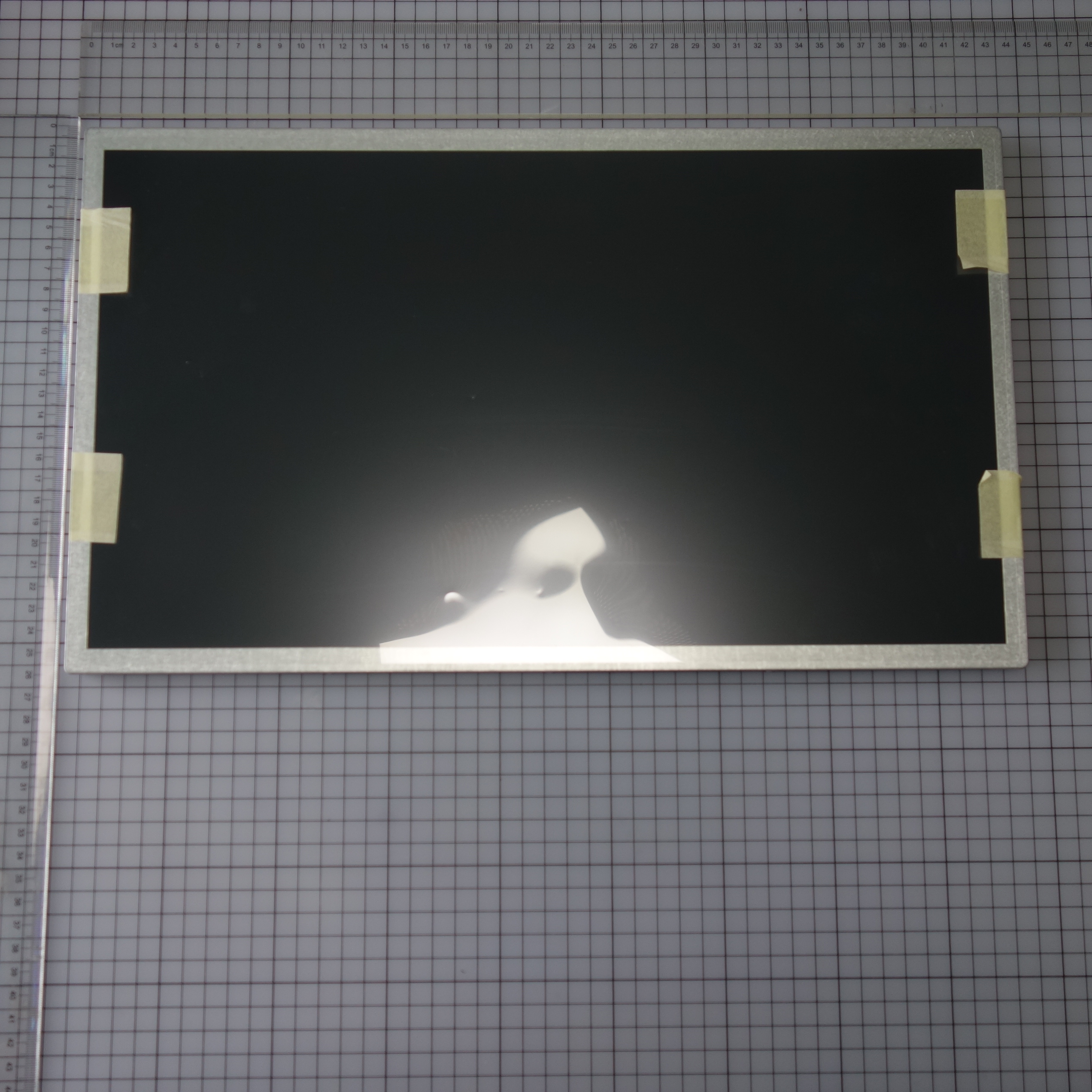

    G185HAN01.1 AUO 18.5 inch LCM 1920×1080 LCD module


    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.


    AUO G185HAN01.1 Mechanical Features

    Screen Size :18.5"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1920(RGB)×1080, FHDRGB Vertical Stripe0.071×0.213 mm0.213×0.213 mm
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    409.86×230.4 mm412.56×233.64 mm430.4×254.6 mm12.0±0.5 mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle16:9Landscape type-
    Other Spec :MassPanel CoverSurface Treatment
    1.20Kgs (Typ.)-Antiglare, Hard coating (3H)
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel

    AUO G185HAN01.1 Interface Features


    Signal Electrical :Input VoltageInput CurrentPower Consumption
    5.0V (Typ.)0.8/1.0A (Typ./Max.)4.0/5.5W (Typ./Max.)
    Interface Features :Signal TypePhysical TypeInterface Position
    LVDS (2 ch, 8-bit)ConnectorRear
    Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
    JAEFI-XB30SSRLA-HF161 pcs30 pins1.0 mmLVDS-30P2C8B-160A
    We also have other industrial LCD panels, pls contact to us for the further information
