Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating

    Buy cheap Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating from wholesalers

    Buy cheap Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating from wholesalers
    • Buy cheap Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating from wholesalers

    Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating

    Ask Lasest Price
    Brand Name : Chimei LCD Panel
    Model Number : EE080NA-04C
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating

    Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating


    Description :


    Panel Brand :CHIMEI INNOLUX
    Panel Model :EE080NA-04C
    Panel Type :a-Si TFT-LCD , CELL
    Panel Size :8.0 inch
    Resolution :1024(RGB)×768 , XGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :162.048×121.536 mm
    Outline :170.9×132.4 mm
    Surface :Hard coating
    Glass Depth :0.50+0.50 mm
    Transmissivity :4.2% (Typ.)(with Polarizer)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
    Response Time :6/14 (Typ.)(Tr/Td)
    Viewing Angle :75/75/75/75 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Signal Interface :LVDS (1 ch, 6/8-bit) , 40 pins
    Input Voltage :3.3/11.8/22/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

    Laptop lcd and led screen:from 4.5 inch to 18.4 inch


    1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" , 15.0",15.4",15.6",16.0",17.0",17.3",18.4"

    2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++

    3. Backlight:LED,1CCFL,2CCFL


    More Information For N&S electronic Co.,LTD:


    1. Agent Brand:

    * AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.

    2. Quality to be ensure:

    All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.

    3. Quickly delivery:

    We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;


    Trade Terms:


    1. Payment terms: 100% by T/T when order confirmed

    2. Lead time: 2-5 working days according to the order quantity

    3. Sample lead time: within 3 working days after we get payment.

    4. The price based on FOB Shenzhen,we will offer best discount according to order quantity.

    5. Warranty:offer free spare parts within ONE year.

    6. Offer OEM service for batch orders,to print logo and design box.

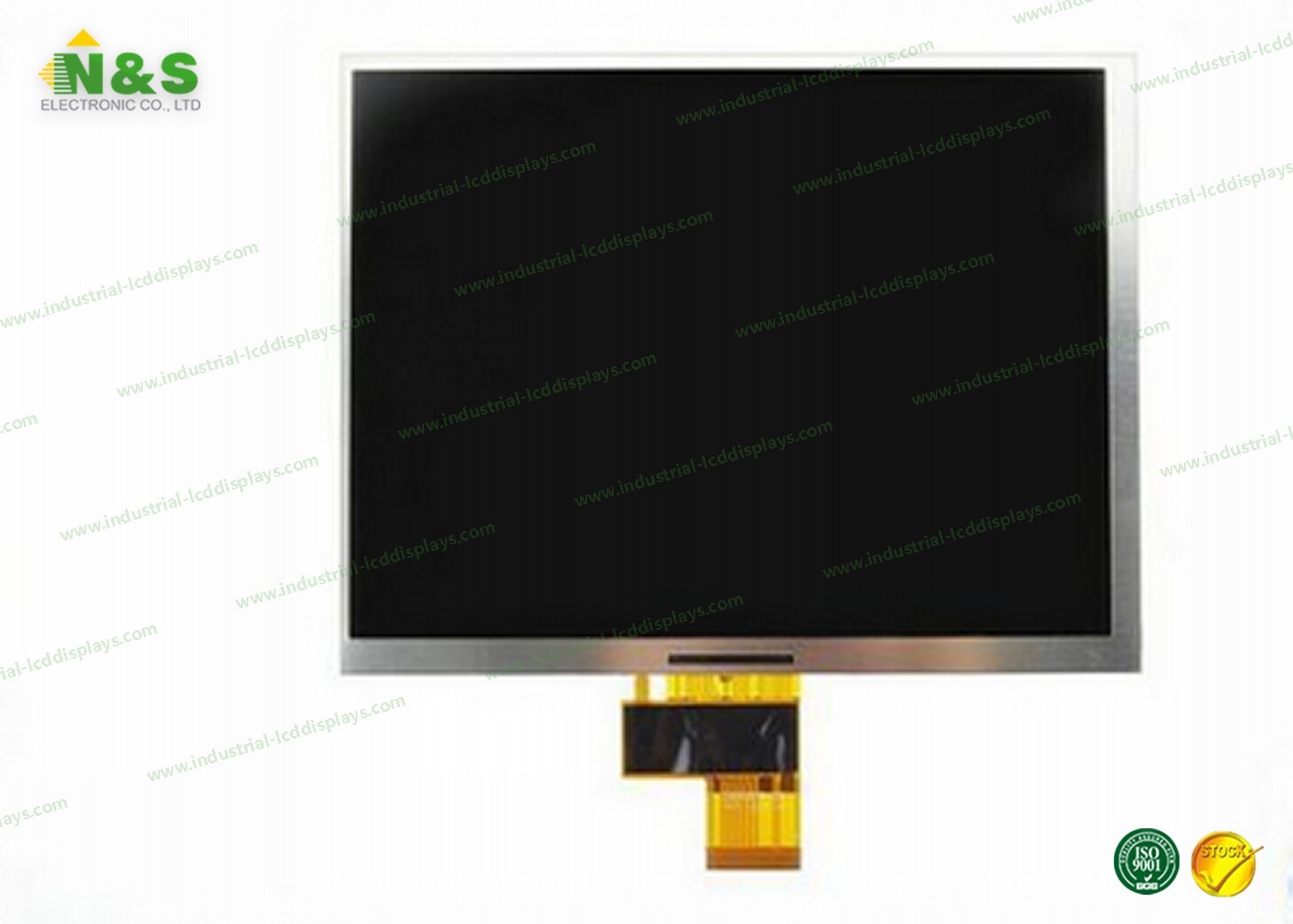

    Pictures of EE080NA-04C LCD Display:


    Glare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard CoatingGlare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard CoatingGlare Chimei Lcd Monitor EE080NA-04C TFT LCD Panel Hard Coating
