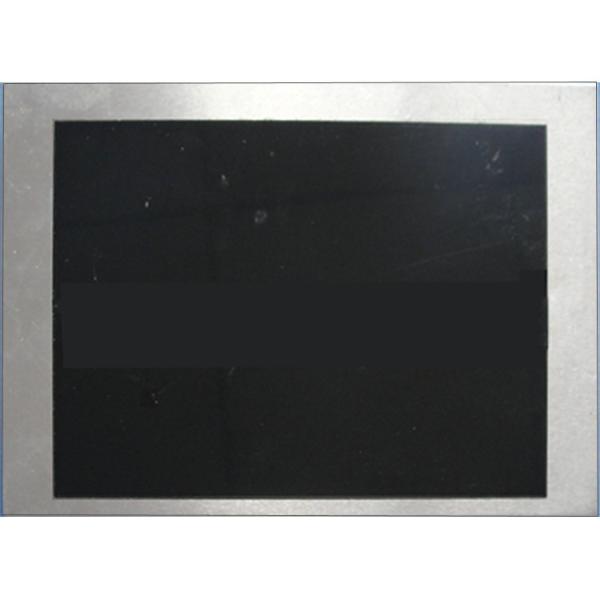

Flat Rectangle 5.7 Inch Tianma LCD Displays LCM 320×240
TM057KDH01-00
TIANMA TM057KDH01-00 Mechanical Details
| Pixel Features : | Resolution 320(RGB)×240, QVGA Dot Pitch(mm) 0.120×0.360 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.360×0.360 (H×V) [70PPI] |
|---|
| Mechanical Size : | Active Area(mm) 115.2(H) × 86.4(V) Bezel Area(mm) 118.2(H) × 89.4(V) Outline Dim.(mm) 144(H) × 104.6(V) Depth(mm) 12.8 (Max.) |
|---|
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type |
|---|
| Mounting : | Rear mounting poles (4-Φ2.6) |
|---|
| Other Spec : | Weight 160g (Typ.) Treatment Antiglare, Hard coating (3H) |
|---|
- Disclaimer : Inputted by panelook engineers according to datasheet,
but we cannot guarantee the spec listed is entirely correct.
Back
to Top
TIANMA TM057KDH01-00 Optical Details
| Basic Information : | Luminance(cd/m²) 400 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/70/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 20 (Typ.)(Tr+Td) |
|---|
| Color Performance : | White Coordinate Wx:0.324; Wy:0.362 Display Colors 262K (6-bit) Color Temperature 5814K White Uniformity 1.25/1.33 (Typ./Max.)(9 points) |
|---|
| 1931 Color Gamlt : | NTSC Ratio 54% sRGB 73% coverage Adobe RGB 56% coverage DCI-P3 55% coverage Rec.2020 40% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
|---|
- Disclaimer : Inputted by panelook engineers according to datasheet,
but we cannot guarantee the spec listed is entirely correct.
