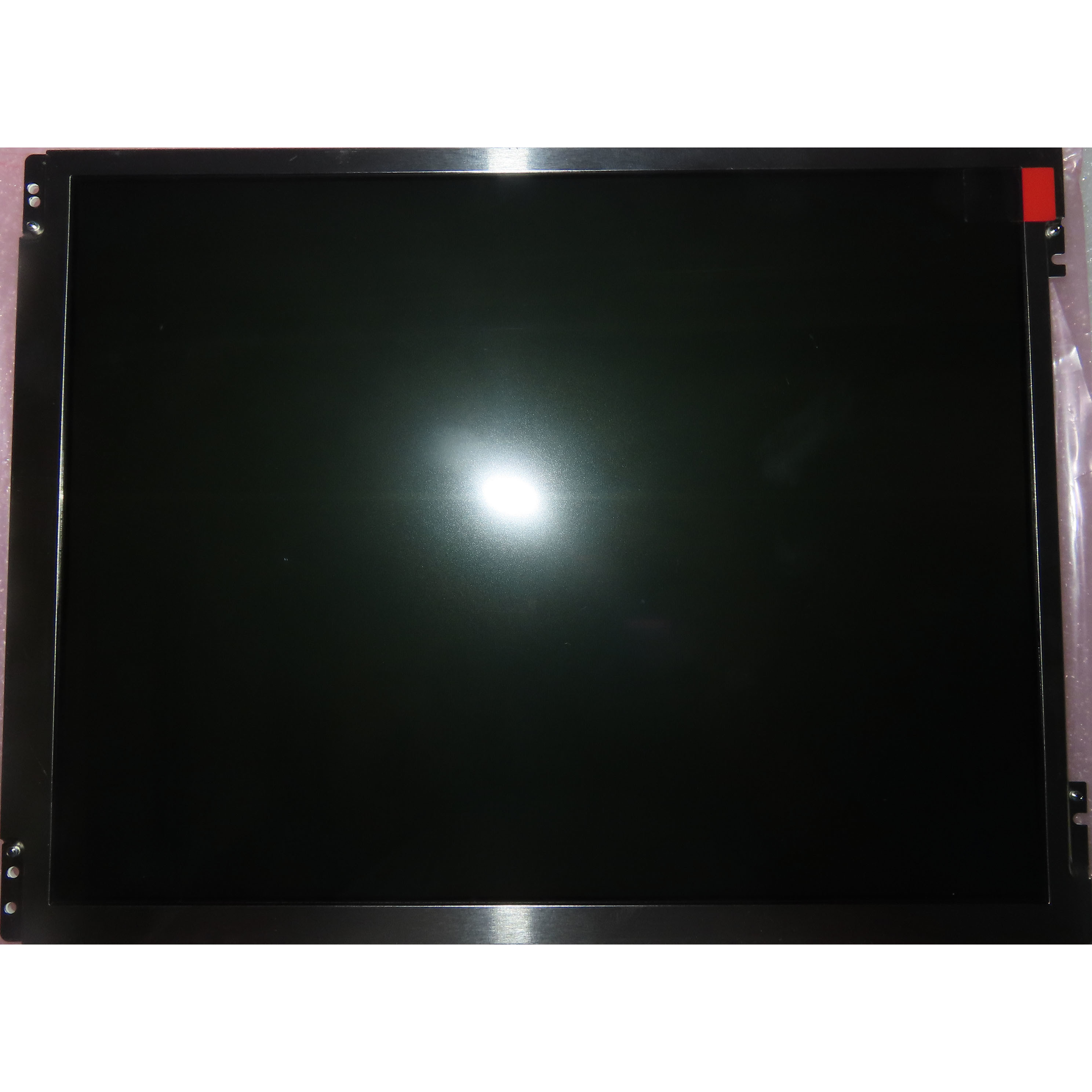

TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

Product Categories

N&S ELECTRONIC CO., LIMITED

Contact Now

Name: TM104SDH01 104 Inch Tianma LCD Displays LCM 800600 For Medical Imaging
Brand: TIANMA
Price: 1 USD

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM104SDH01
Price :	pls contact us
Payment Terms :	T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability :	200

Add to Cart

TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging

TIANMA TM104SDH01 Mechanical Details

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.088×0.264 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.264×0.264 (H×V) [96PPI]
Mechanical Size :	Active Area(mm) 211.2(H) × 158.4(V) Bezel Area(mm) 215.0(H) × 162.0(V) Outline Dim.(mm) 236(H) × 176.9(V) Depth(mm) 5.6±0.3
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Spec :	Weight 288g Treatment Antiglare, Hard coating (3H)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 400:1 (Typ.) (Transmissive) Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 10/15 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.309; Wy:0.334 Display Colors 262K (6-bit) Color Temperature 6655K White Uniformity 1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 51% sRGB 71% coverage Adobe RGB 54% coverage DCI-P3 53% coverage Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands TM104SDH01 10.4 Inch Tianma LCD Displays LCM 800×600 For Medical Imaging
