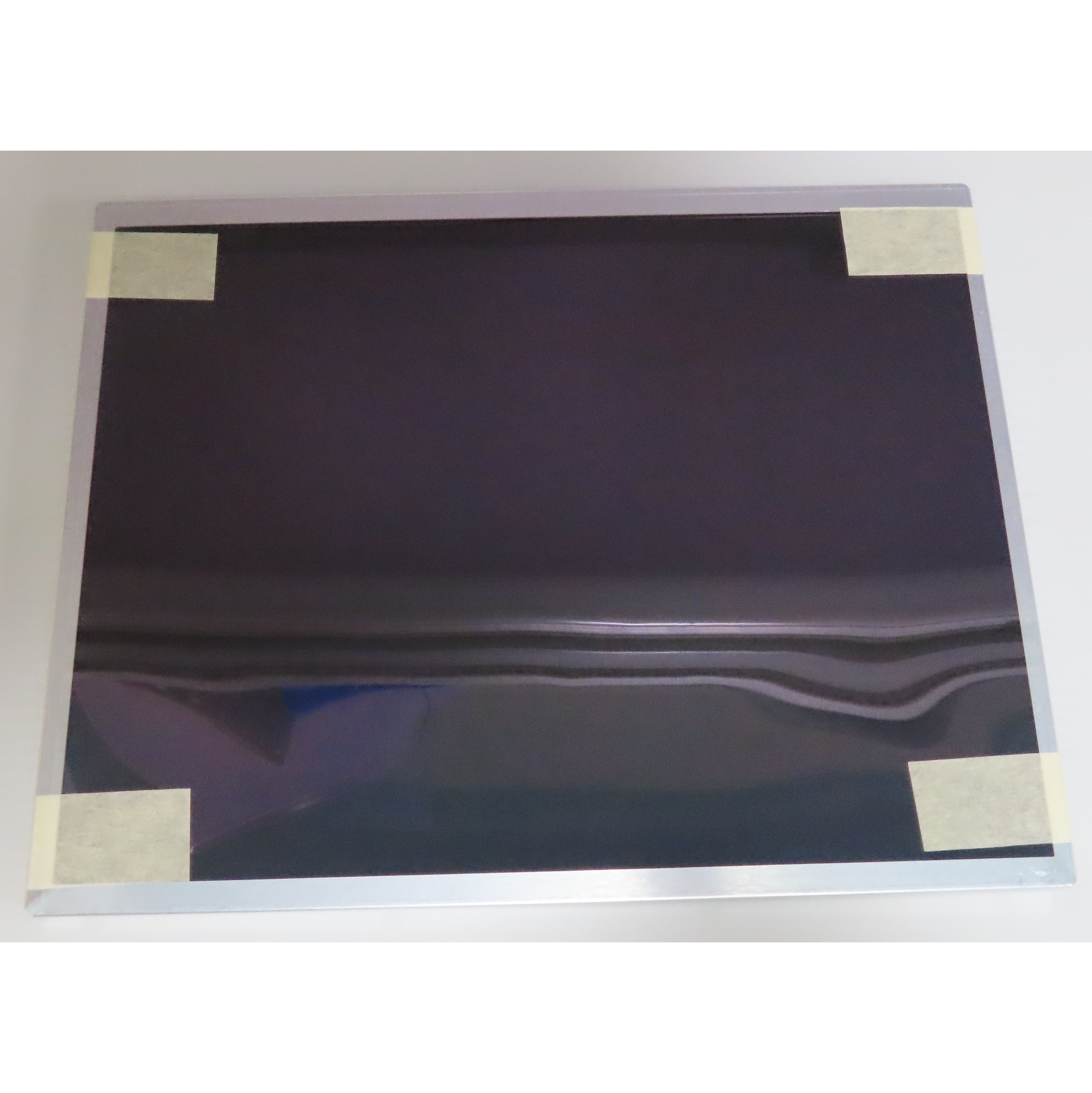

G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

    Buy cheap G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen from wholesalers

    Buy cheap G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen from wholesalers
    • Buy cheap G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen from wholesalers

    G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : G104X1-L04
    Price : pls contact us
    Supply Ability : 500
    • Product Details
    • Company Profile

    G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

    G104X1-L04 Innolux LCD Panel 10.4" LCM 1024×768 Without Touch Screen

    Innolux G104X1-L04 Mechanical Details

    Pixel Features :Resolution1024(RGB)×768, XGADot Pitch(mm)0.0685×0.2055 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.2055×0.2055 (H×V) [123PPI]
    Mechanical Size :Active Area(mm)210.4(H) × 157.8(V)Bezel Area(mm)215.4(H) × 161.8(V)
    Outline Dim.(mm)225.5(H) × 176.3(V)Depth(mm)7.96/9.2 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Mounting :Side mounting holes (4-M2) on left, right bezel
    Other Spec :Weight430±50gTreatmentAntiglare
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    Innolux G104X1-L04 Optical Details

    Basic Information :Luminance(cd/m²)500 (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle88/88/88/88 (Typ.)(CR≥10)Display ModeSuper MVA, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)14/11 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.313; Y:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature6485KWhite Uniformity1.25/1.40 (Typ./Max.)(5 points)
    1931 Color Gamlt :NTSC Ratio55%sRGB77% coverage
    Adobe RGB58% coverageDCI-P357% coverage
    Rec.202041% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    Below are our other LCD panels stock for your easy reference:


    Panel ModelBrandSize
    P079ZCZ-3Z2Innolux7.9"
    M315DJJ-Q01Innolux31.5"
    V320BJ6-Q01Innolux31.5"
    V650DK2-QS2Innolux65"
    F055A07-601Innolux5.5"
    F050A07-6T2Innolux5.0"
    V650HP1-PS6 Rev.C6Innolux65"
    P101LCA-3P1Innolux10.1"
    V650HP2-PS5Innolux65"
    N156HGE-DB1Innolux15.6"
    V500DJ4-QS1Innolux50"
    V500DJ2-QS5Innolux50"
    V400DJ1-QS5Innolux40"
    P089DCZ-3A1Innolux8.9"
    N101JSA-P11Innolux10.1"
    F050A13-601Innolux5.0"
    P097ZCA-1Z2Innolux9.7"

    FAQ

    Q1: How do we place an order?

    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

    Q2: How do we make the payment?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: What's the delivery time?

    A3: The delivery time is normally 1-3 working days after payment.

    Q4: How would the goods be shipped?

    A4: We ship via DHL, UPS, TNT and others.

    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    Return and Refund:

    (1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

    (2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

    (3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

    Feedback:

    (1) Your early confirmation will be highly appreciated after receiving the item.

    (2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
