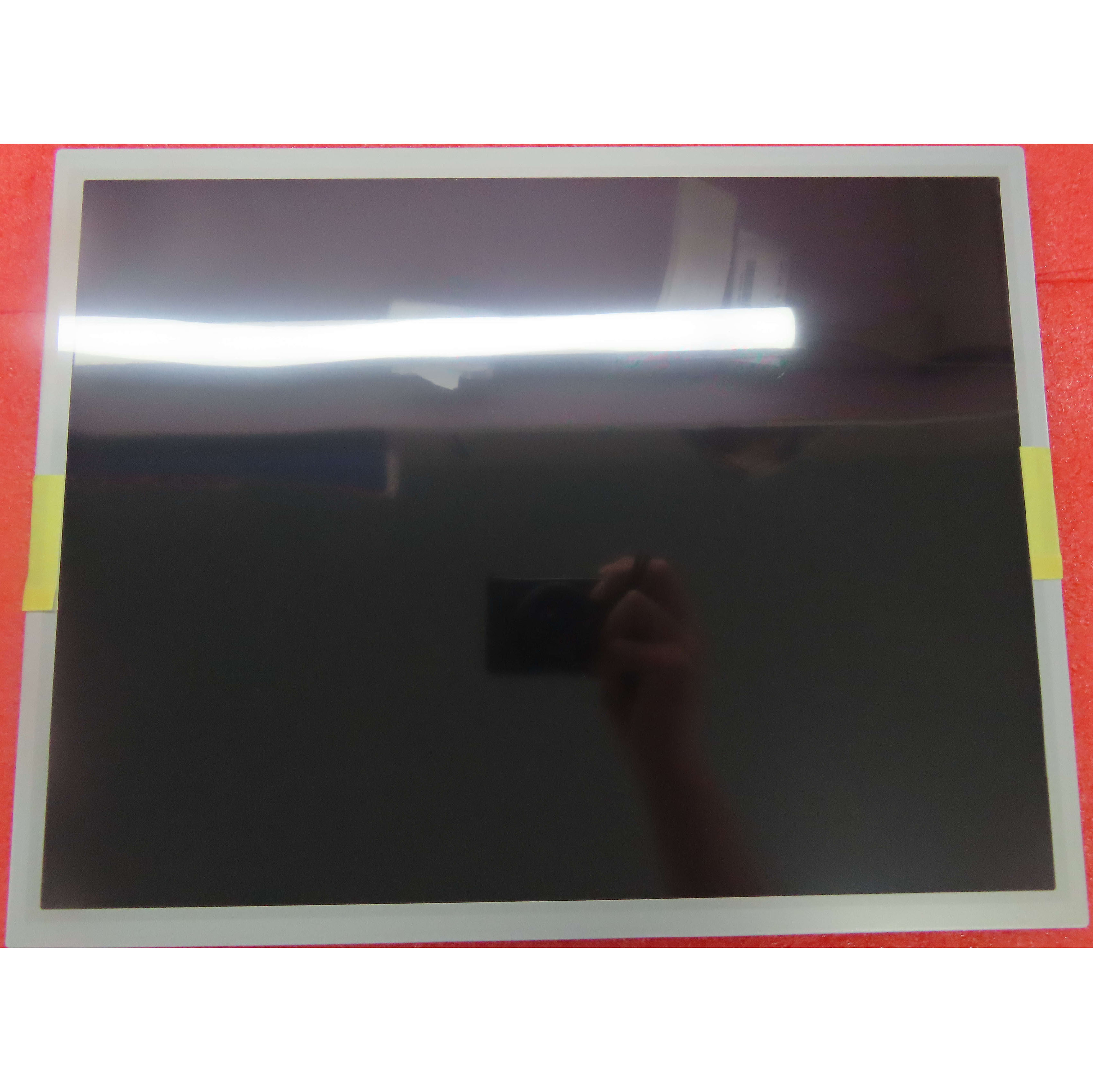

OEM 15" LCM Nec Large Screen Display 1024×768 NL10276AC30-42C
NEC NL10276AC30-42C Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Outline Dim.
307.4×231.3 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
11.8±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.05/1.10Kgs (Typ./Max.)
Surface
Clear, Hard coating (2H), Antireflection
- Disclaimer : Inputted by panelook engineers according to datasheet,
but we cannot guarantee the spec listed is entirely correct.
Back
to Top
NEC NL10276AC30-42C Optical Details
Basic Information :
Brightness
600 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
3/5 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
62%
sRGB
80% coverage
Adobe RGB
62% coverage
DCI-P3
65% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
- Disclaimer : Inputted by panelook engineers according to datasheet,
but we cannot guarantee the spec listed is entirely correct.
