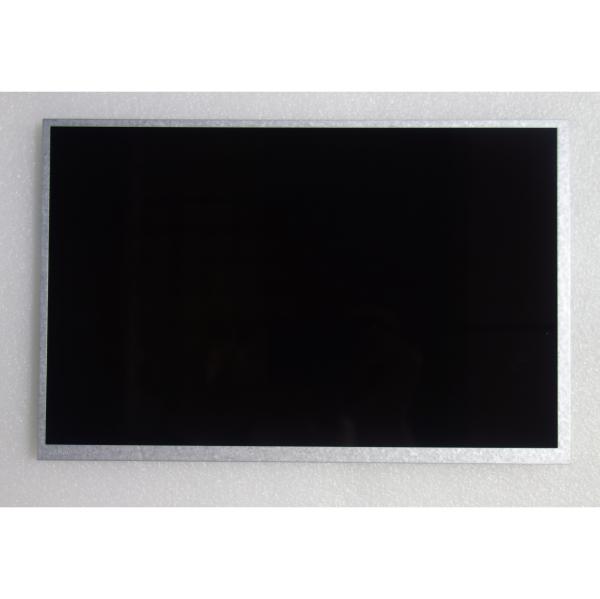

G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial

    Buy cheap G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial from wholesalers

    Buy cheap G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial from wholesalers
    • Buy cheap G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial from wholesalers

    G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G101EVN01.2
    Price : pls contact us
    Payment Terms : Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 500
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial

    G101EVN01.2 Auo Lcd Screen 1280×800 Without Touch Screen Industrial

    AUO G101EVN01.2 Mechanical Details

    Pixel Features :
    Pixel Format
    1280(RGB)×800, WXGA
    Dot Pitch
    0.0565×0.1695 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.1695×0.1695 mm (H×V) [149PPI]
    Mechanical Size :
    Display Area
    216.96×135.6 mm (H×V)
    Outline Dim.
    220.36×139.1 mm (H×V)
    Outline Dim.
    227.91×148 mm (H×V)
    Outline Depth
    8.34 (Max.) mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    16:10 (H:V)
    Shape Style
    Holes & Brackets :
    Without
    Other Features :
    Weight
    -
    Surface
    Hard coating, Reflection 1.5% (Typ.)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    AUO G101EVN01.2 Optical Details

    Basic Information :
    Brightness
    500 cd/m² (Typ.)
    Contrast Ratio
    1300:1 (Typ.) (Transmissive)
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Optical Mode
    MVA, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    25 (Typ.)(Tr+Td) ms
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Color Numbers
    262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature
    6485K
    Uniformity
    1.43 (Max.)(5 points)
    1931 Color Gamlt :
    NTSC Ratio
    47%
    sRGB
    66% coverage
    Adobe RGB
    49% coverage
    DCI-P3
    49% coverage
    Rec.2020
    35% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct

    We also have other industrial LCD panels, pls contact to us for the further information


    Panel ModelBrandSize
    X139BLB01.0AUO1.39"
    H381DLN01.0AUO3.8"
    H497TLB01.4AUO5.0"
    G173HW01 V0 CELLAUO17.3"
    T320HVN05.A CELLAUO31.5"
    B080EAN04.1 CELLAUO8.0"
    T500HVN08.8 CELLAUO50"
    H546DAN01.5AUO5.5"
    H546DAN08.0AUO5.5"
    B080XAN03.5AUO7.9"
    B080XAN03.2AUO7.9"
    H499TAN05.0AUO5.0"
    H520DAN01.1AUO5.2"

    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    4. Carton Box.


    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box


    Warranty:

    1. All panels’ grade is promised strictly same as original factory’s standard.

    2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

    3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

    4. ISO 9001 guarantee.
