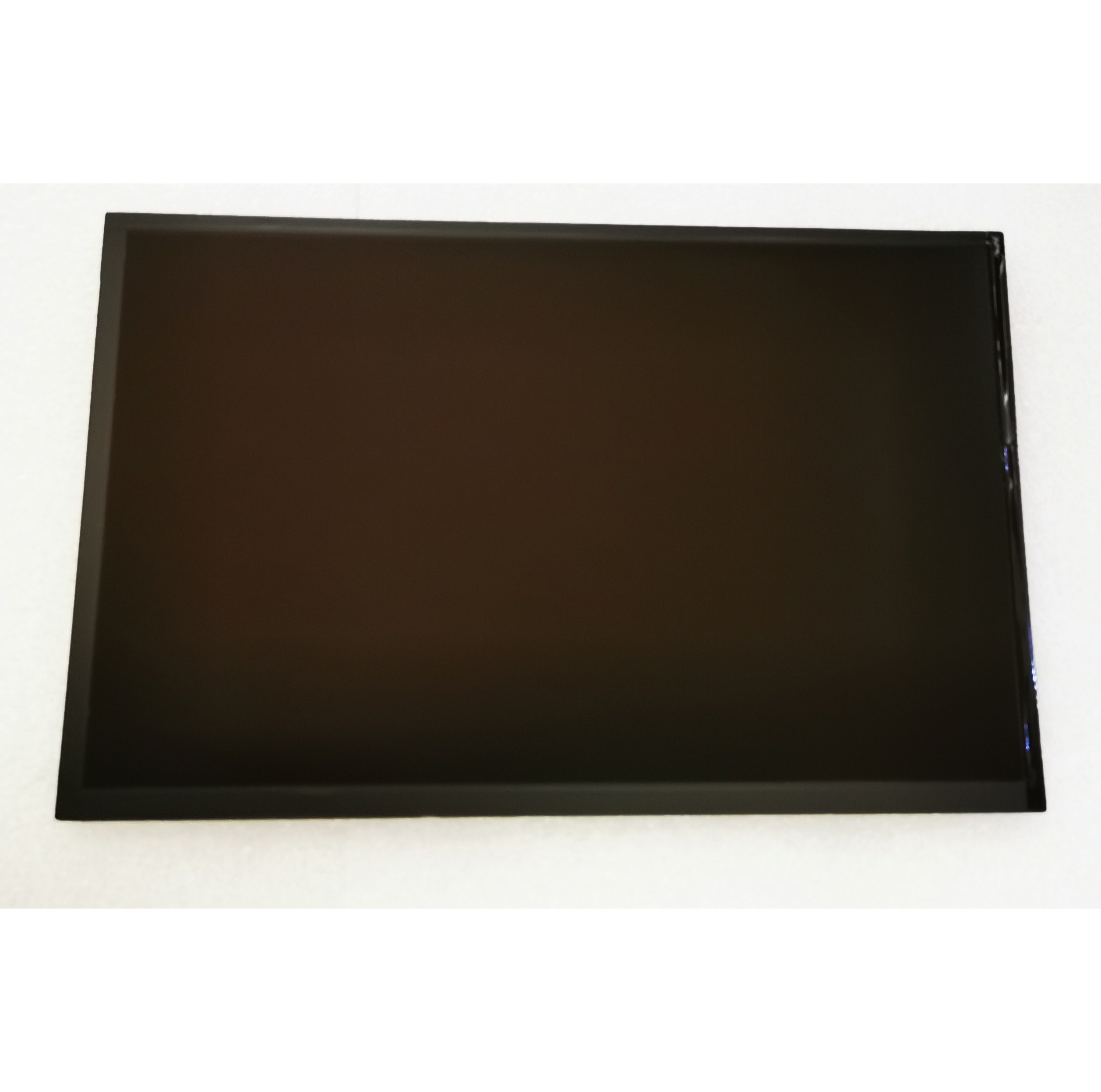

Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0

    Buy cheap Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0 from wholesalers

    Buy cheap Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0 from wholesalers
    • Buy cheap Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0 from wholesalers
    • Buy cheap Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0 from wholesalers

    Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G101EAN01.0
    Price : pls contact us
    Payment Terms : Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 500
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0

    Flat Rectangle AUO LCD Panel 10.1" LCM 800×1280 G101EAN01.0

    AUO G101EAN01.0 Mechanical Details

    Pixel Features :
    Resolution
    800(RGB)×1280, WXGA
    Dot Pitch(mm)
    0.0564×0.1692 (H×V)
    Pixel Format
    RGB Vertical Stripe
    Pixel Pitch(mm)
    0.1692×0.1692 (H×V) [150PPI]
    Mechanical Size :
    Active Area(mm)
    135.36(H) × 216.576(V)
    Bezel Area(mm)
    -
    Outline Dim.(mm)
    150.3(H) × 232.43(V)
    Depth(mm)
    2.6/4.8 (Typ./Max.)
    Outline Features :
    Form Style
    Flat Rectangle
    Shape Style
    Aspect Ratio
    10:16 (H:V)
    Orientation
    Portrait type
    Mounting :
    Without
    Other Spec :
    Weight
    161g (Max.)
    Treatment
    Antiglare, Antireflection
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    AUO G101EAN01.0 Optical Details

    Basic Information :
    Luminance(cd/m²)
    350 (Typ.)
    Contrast Ratio
    1000:1 (Typ.) (Transmissive)
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Display Mode
    AHVA, Normally Black, Transmissive
    Best View on
    Symmetry
    Response(ms)
    30 (Typ.)(Tr+Td)
    Color Performance :
    White Coordinate
    Wx:0.300; Wy:0.320
    Display Colors
    16.7M (8-bit)
    Color Temperature
    7351K
    White Uniformity
    1.25/1.33 (Max.)(5/13 points)
    1931 Color Gamlt :
    NTSC Ratio
    58%
    sRGB
    78% coverage
    Adobe RGB
    60% coverage
    DCI-P3
    60% coverage
    Rec.2020
    43% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
