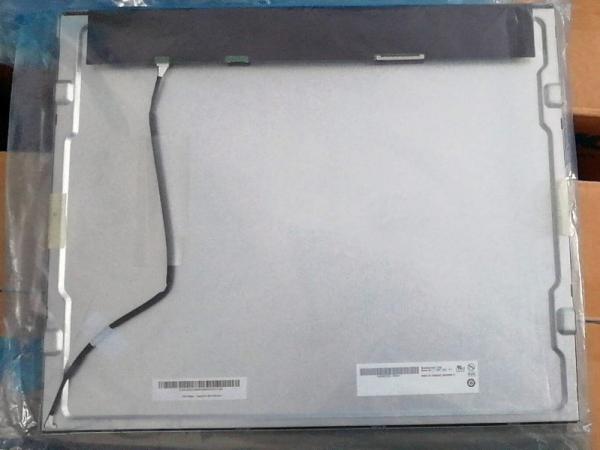

G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

    Buy cheap G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen from wholesalers

    Buy cheap G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen from wholesalers
    • Buy cheap G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen from wholesalers

    G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G190EG02 V104
    Price : pls contact us
    Payment Terms : Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 500
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen

    G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen


    G190EG02 V104 AUO 19" LCM 1280×1024 Without Touchscreen And Industrial,Medical Imaging

    AUO G190EG02 V104 Mechanical Features

    Screen Size :19.0"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1280(RGB)×1024, SXGARGB Vertical Stripe0.098×0.294 mm0.294×0.294 mm [86PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    376.32×301.056 mm380.32×305.06 mm396×324 mm15.8 (Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle5:4Landscape type
    Other Spec :MassPanel CoverSurface Treatment
    1.74Kgs (Typ.)-Antiglare
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
    • G190EG02 V104 AUO LCD Panel 19 Inch 1280×1024 Without Touchscreen Back to Top

    AUO G190EG02 V104 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    350 cd/m² (Typ.)MVA, Normally Black, Transmissive2000:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    Symmetry89/89/89/89 (Typ.)(CR≥10)15/5 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    6485K16.7M (8-bit)X:0.313; Y:0.329
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    73%93%72%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    75%54%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Uniformity :1.25/1.33 (Typ./Max.)(9 points)
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information


    Panel ModelBrandSize
    X139BLB01.0AUO1.39"
    H381DLN01.0AUO3.8"
    H499TAN03.1AUO5.0"
    G150XG03 V3 CELLAUO15.0"
    B080XAN03.1 CELLAUO7.9"
    H572DAN01.2AUO5.7"
    H598AAN01.0AUO6.0"
    H497DAN01.1AUO5.0"
    H650DAN01.0AUO6.4"

    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    4. Carton Box.


    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box


    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.
