6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

    Buy cheap 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection from wholesalers

    Buy cheap 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection from wholesalers
    • Buy cheap 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection from wholesalers
    • Buy cheap 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection from wholesalers

    6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G150XTN06.B
    Price : pls contact us
    Payment Terms : Western Union,PAPLY,BANK TRANSFER
    Supply Ability : 500
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

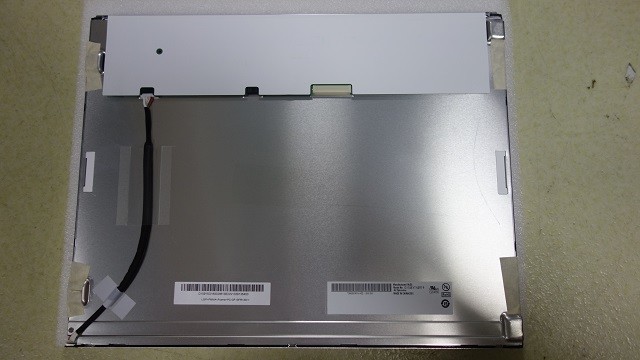

    6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection

    6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection


    G150XTN06.B AUO 15" LCM 1024×768 Without Touchscreen And Industrial,outdoor High Brightness

    AUO G150XTN06.B Optical Details

    Basic Information :
    Luminance
    800 cd/m² (Typ.)
    Contrast Ratio
    800:1 (Typ.) (Transmissive)
    Good View at
    -
    Response Speed
    5.7/2.3 (Typ.)(Tr/Td) ms
    Viewing Angle
    80/80/70/80 (Typ.)(CR≥10)
    Operating Mode
    TN, Normally White, Transmissive
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Support Color
    262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature
    6485K
    White Variation
    1.25/1.33 (Typ./max.)(9 points)
    1931 Color Gamlt :
    NTSC Ratio
    60%
    sRGB
    84% coverage
    Adobe RGB
    63% coverage
    DCI-P3
    63% coverage
    Rec.2020
    45% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :
    Outdoor Visibility
    Sunlight Readable
    Transmissivity
    -
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
    • 6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection Back to Top

    AUO G150XTN06.B Mechanical Details

    Pixel Features :
    Number of Pixel
    1024(RGB)×768, XGA
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.099×0.297 mm
    Pixel Pitch(W×H)
    0.297×0.297 mm [85PPI]
    Physical Size :
    Active Viewing
    304.128(W)×228.096(H) mm
    Overall Dim.
    326.5(W)×253.5(H) mm
    Bezel Opening
    311.9(W)×236.85(H) mm
    Overall Depth
    10.0 (Max.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    4:3
    Shape Style
    Fixation :
    Side mounting holes (4-M3) on left, right bezel
    Other Detail :
    Mass
    1.00Kgs (Max.)
    Surface
    Antireflection
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
