    Innolux LCD Panel N080ICE-GB0 Rev.A0 8.0 inch 107.64×172.224 mm Active Area 114.6×184.1×3.5 mm Outline

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : N080ICE-GB0 Rev.A0
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Innolux LCD Panel N080ICE-GB0 Rev.A0 8.0 inch 107.64×172.224 mm Active Area 114.6×184.1×3.5 mm Outline

    Innolux LCD Panel N080ICE-GB0 Rev.A0 8.0 inch 107.64×172.224 mm Active Area 114.6×184.1×3.5 mm Outline


    INNOLUX N080ICE-GB0 Rev.A0 General Features

    Panel Brand :INNOLUX
    Panel Model :N080ICE-GB0 Rev.A0
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :8.0 inch
    Resolution :800(RGB)×1280 , WXGA
    Display Mode :AAS, Normally Black, Transmissive
    Active Area :107.64×172.224 mm
    Outline :114.6×184.1×3.5 mm
    Surface :Glare (Haze 0%), Hard coating, Antireflection
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 60%
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED
    Signal Interface :MIPI (4 data lanes) , 39 pins
    Input Voltage :1.8/3.3V (Typ.)(VCC/VDDI)

    Our Advantage

    Q1: Can I place sample order first?

    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

    Q2: How could I pay them?

    A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.

    Q3: How to place the order?

    A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.

    Q4: How long can I get my order?

    A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.

    Q5: How to send us the products?

    A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.

    Q6: Can you customize according to our designs and put our logo on the products?

    A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.


    INNOLUX N080ICE-GB0 Rev.A0 Mechanical Features

    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×1280 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :188 PPI
    Aspect Ratio :10:16 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.04485×0.13455 mm (H×V)
    Pixel Pitch :0.13455×0.13455 mm (H×V)
    Weight :75g (Max.)
    Surface :Glare (Haze 0%), Hard coating, Antireflection
    Active Area :107.64×172.224 mm (H×V)
    Outline Dimension :114.6×184.1 mm (H×V)
    Outline Depth :1.9/3.5 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Portrait type
    Touch Panel :Without

    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.

    2. Anti-Shock Bubble Bag Packing

    3. Foam and Hard Carton Packing

    4. Picked up by forward and delivered by express services.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V156B2-P02Innolux15.6"1366×768
    N154I2-P05Innolux15.4"1280×800
    C03024-01ZInnolux3.0"960×480(dot)
    G121IJ1-P01Innolux12.1"1280×800
    F04307-06ZInnolux4.3"480×800
    CG043JN16Innolux4.3"480×800
    F04008-01UInnolux4.0"480×800
    N156BGE-P21Innolux15.6"1366×768
    F04801-01ZInnolux4.8"540×960
    N133HSG-D31Innolux13.3"1920×1080

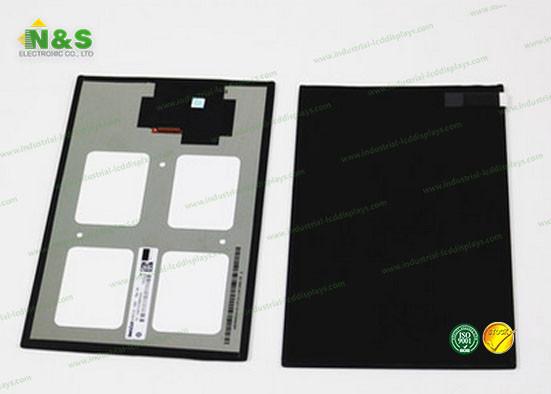

    Details Pictures for Innolux LCD Panel N080ICE-GB0 Rev.A0
