8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display from wholesalers

    Buy cheap 8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display from wholesalers
    • Buy cheap 8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display from wholesalers
    • Buy cheap 8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display from wholesalers

    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : AT080TN64
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display

    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display


    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.
    2. Anti-Shock Bubble Bag Packing
    3. Foam and Hard Carton Packing
    4. Picked up by forward and delivered by express services.

    INNOLUX AT080TN64 Mechanical Features

    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :116 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0736×0.2070 mm (H×V)
    Pixel Pitch :0.2208×0.2070 mm (H×V)
    Weight :251g (Typ.)
    Surface :Antiglare
    Active Area :176.64×99.36 mm (H×V)
    Bezel Area :180.1×103.4 mm (H×V)
    Outline Dimension :192.8×116.9 mm (H×V)
    Outline Depth :6.3±0.3 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    INNOLUX AT080TN64 Optical Features

    Display Mode:TN, Normally White, Transmissive
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.2M (6-bit / 6-bit + Dithering)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V156B2-P02Innolux15.6"1366×768
    N154I2-P05Innolux15.4"1280×800
    C03024-01ZInnolux3.0"960×480(dot)
    G121IJ1-P01Innolux12.1"1280×800
    F04307-06ZInnolux4.3"480×800
    CG043JN16Innolux4.3"480×800
    F04008-01UInnolux4.0"480×800
    N156BGE-P21Innolux15.6"1366×768
    F04801-01ZInnolux4.8"540×960

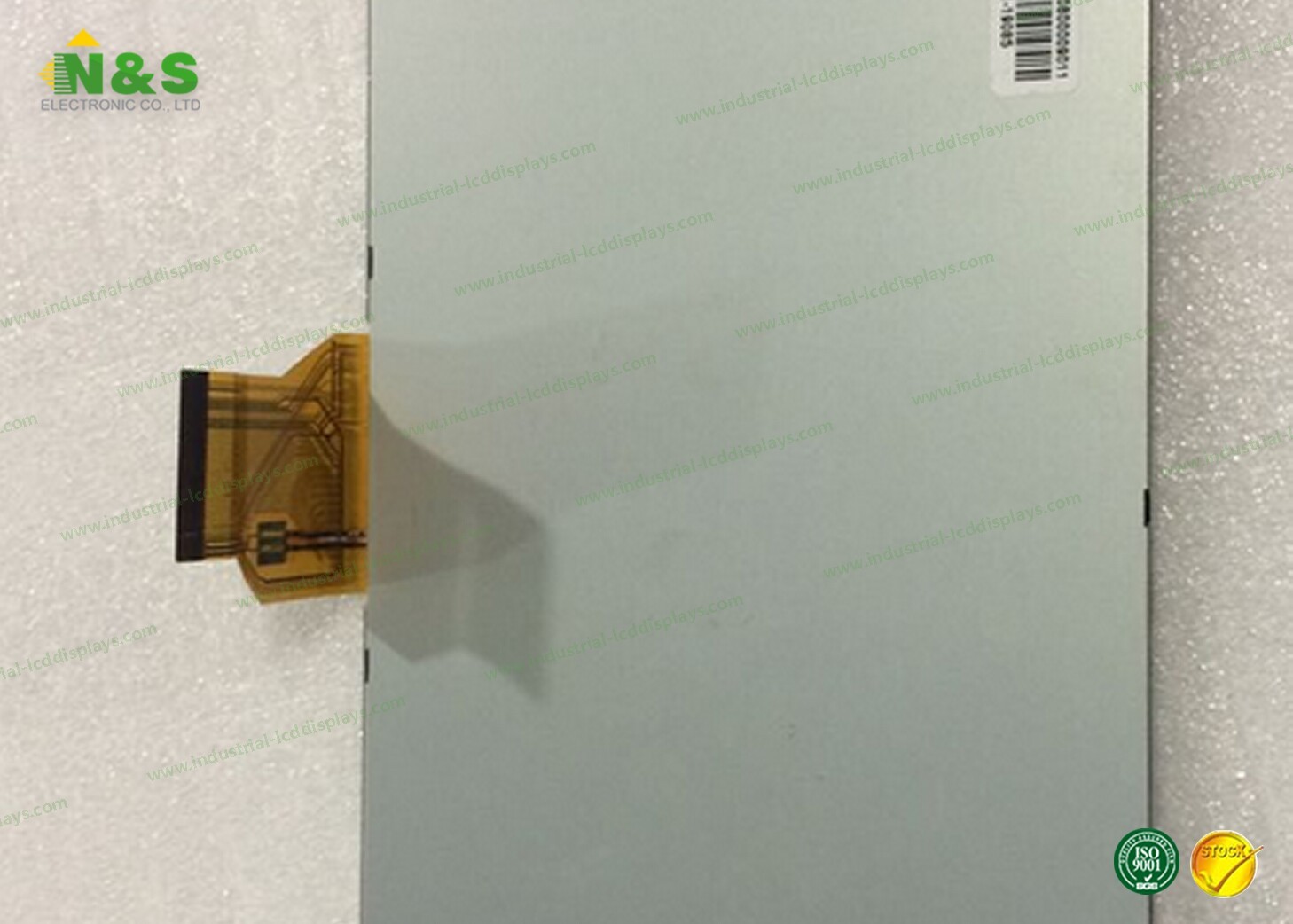

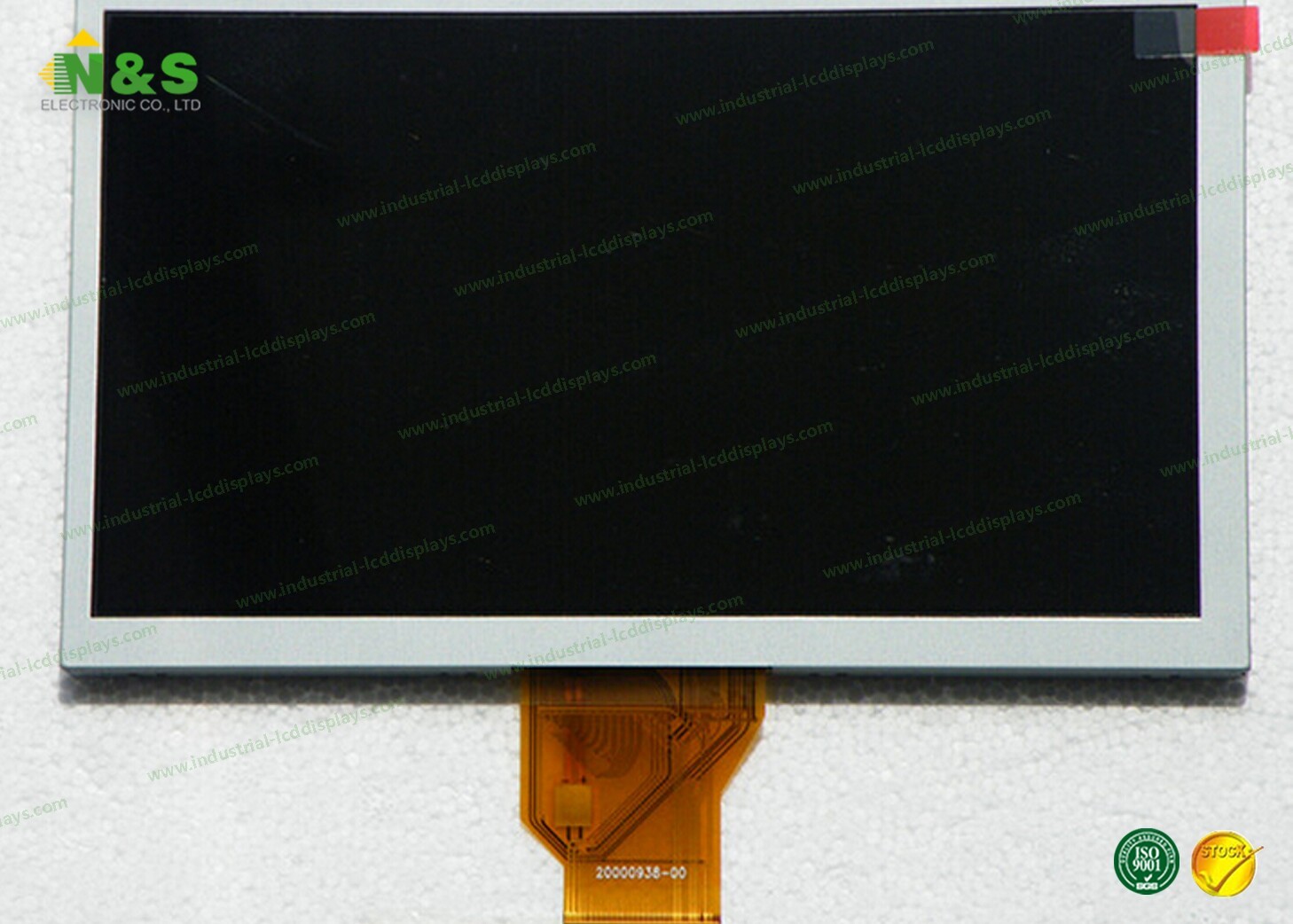

    Details Pictures for AT080TN64
    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display
    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display
    8.0 inch AT080TN64 Innolux LCD Panel , 450 cd / m² Brightness industrial lcd display
