Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01

    Buy cheap Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01 from wholesalers

    Buy cheap Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01 from wholesalers
    • Buy cheap Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01 from wholesalers

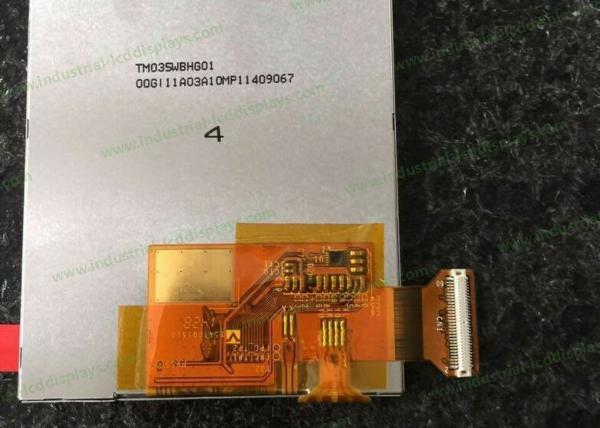

    Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01

    Ask Lasest Price
    Brand Name : Tianma
    Model Number : TM035WBHG01
    Certification : ISO9001
    Payment Terms : T/T, Paypal , Western Unkion, MoneyGram
    Supply Ability : 100 PCS / Day
    Delivery Time : 2-3 Working Days after Order Confirmed
    • Product Details
    • Company Profile

    Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01

    Colors 262K 6 bit CIE1931 50% custom lcd panel 3.5 inch TIANMA TM035WBHG01


    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM045YYSP02Tianma4.5"480×854
    TM016XYHP01Tianma1.6"256×320
    TM050JYSP01Tianma5.0"720×1280
    TL055VGXP01Tianma5.5"1080×1920
    TM045YYHP08Tianma4.5"480×854
    TL050JGXP01Tianma5.0"720×1280

    Pls contact to us for more stock information: salespm@nselectronic.com.hk


    Quick Details:

    Panel Brand :TIANMA
    Panel Model :TM035WBHG01
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :3.5 inch
    Resolution :480(RGB)×640 , VGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :53.28×71.04 mm
    Outline :64×85×4.63 mm
    Surface :Antiglare
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 50%
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Lamp Type :6S1P WLED Without Driver
    Signal Interface :Parallel RGB (1 ch, 6-bit) , 60 pins
    Input Voltage :2.8V (Typ.)


    TIANMA TM035WBHG01 Optical Features:

    Display Mode :TN, Normally White, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :9 o'clock
    White color Chromaticity :Wx:0.301; Wy:0.321
    White Variation :1.33/1.43 (Typ./Max.)(9 points)


    Application TM035WBHG01 Tianma 3.5 inch TFT LCD Panel Display:
    - Workstation & desktop monitors
    - Display terminals for AV application products
    - Monitors for industrial machine
    - Industrial control system
    - Indoor/ outdoor kiosks
    - Automobile DVD navigation
    - Advertisement machine
    - Medical and healthcare kiosks
    - ATM/ POS/ Arcade gaming/ kiosks/ GPS/ Gas station/ Self service thermal

    Our sevice in the TFT LCD Display area:

    1FOG automatical device can ensure the capacity of 1000,000 per month.
    2MOQ can be 100pcs, lead time of standard products is 20 days.
    3Reliability test and full examination to ensure the high quality of the display.
    4OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
    5Strictly ISO quality management system.
    6Mature and Professional R&D and after service.
    7Various cooperation experience with big brands

    ompany Information

    N&S is a manufacturer of capacitive touch panel and LCD/LCM display module with well-equipped testing facilities and strong technical force.


    With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used

    in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.


    Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business

    relationships and mutual success.

    custom original industrail lcd display
    1. customized is welcome
    2. fast delivery time
    3. ISO 9001 certificate
    4. small size


    Tag: Indurstrial LCD Diaplay Replacements, LCD Display Replacements.
