AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution

    Buy cheap AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution from wholesalers

    Buy cheap AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution from wholesalers
    • Buy cheap AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution from wholesalers
    • Buy cheap AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution from wholesalers
    • Buy cheap AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution from wholesalers

    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : AT056TN53 V.1
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution

    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution


    Related Products:


    Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.


    Specification of 5.6 inch AT056TN53 V.1 LCD:

    Panel Brand :INNOLUX
    Panel Model :AT056TN53 V.1
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :5.6 inch
    Resolution :640(RGB)×480 , VGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :112.896×84.672 mm
    Outline :126.5×100 mm
    Surface :Antiglare
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 50%
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

    Company Strength:


    1. ISO9001 certificated, Factory Direct Supplied.

    2. Competitive Price and Short Lead-time.

    3. Professional Team with Rich Experiences in Design / Mfg / Quality Control

    4. Small MOQ Support & Fast Response to Customers.

    5. Long Porduct Life Time.


    Mechanical Features:


    Panel Size :5.6 inch
    Dot Resolution :640(RGB)×480 (VGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :143 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0588×0.1764 mm (H×V)
    Pixel Pitch :0.1764×0.1764 mm (H×V)
    Weight :83.1g (Typ.)
    Surface :Antiglare
    Active Area :112.896×84.672 mm (H×V)
    Bezel Area :115.90×87.67 mm (H×V)
    Outline Dimension :126.5×100 mm (H×V)
    Outline Depth :5.7±0.3 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Our Advantages for LCD panel:

    1FOG automatical device can ensure the capacity of 1000,000 per month.
    2MOQ can be 100pcs, lead time of standard products is 20 days.
    3Reliability test and full examination to ensure the high quality of the display.
    4OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
    5Strictly ISO quality management system.
    6Mature and Professional R&D and after service.
    7Various cooperation experience with big brands

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V156B2-P02Innolux15.6"1366×768
    N154I2-P05Innolux15.4"1280×800
    C03024-01ZInnolux3.0"960×480(dot)
    G121IJ1-P01Innolux12.1"1280×800
    F04307-06ZInnolux4.3"480×800
    CG043JN16Innolux4.3"480×800
    F04008-01UInnolux4.0"480×800

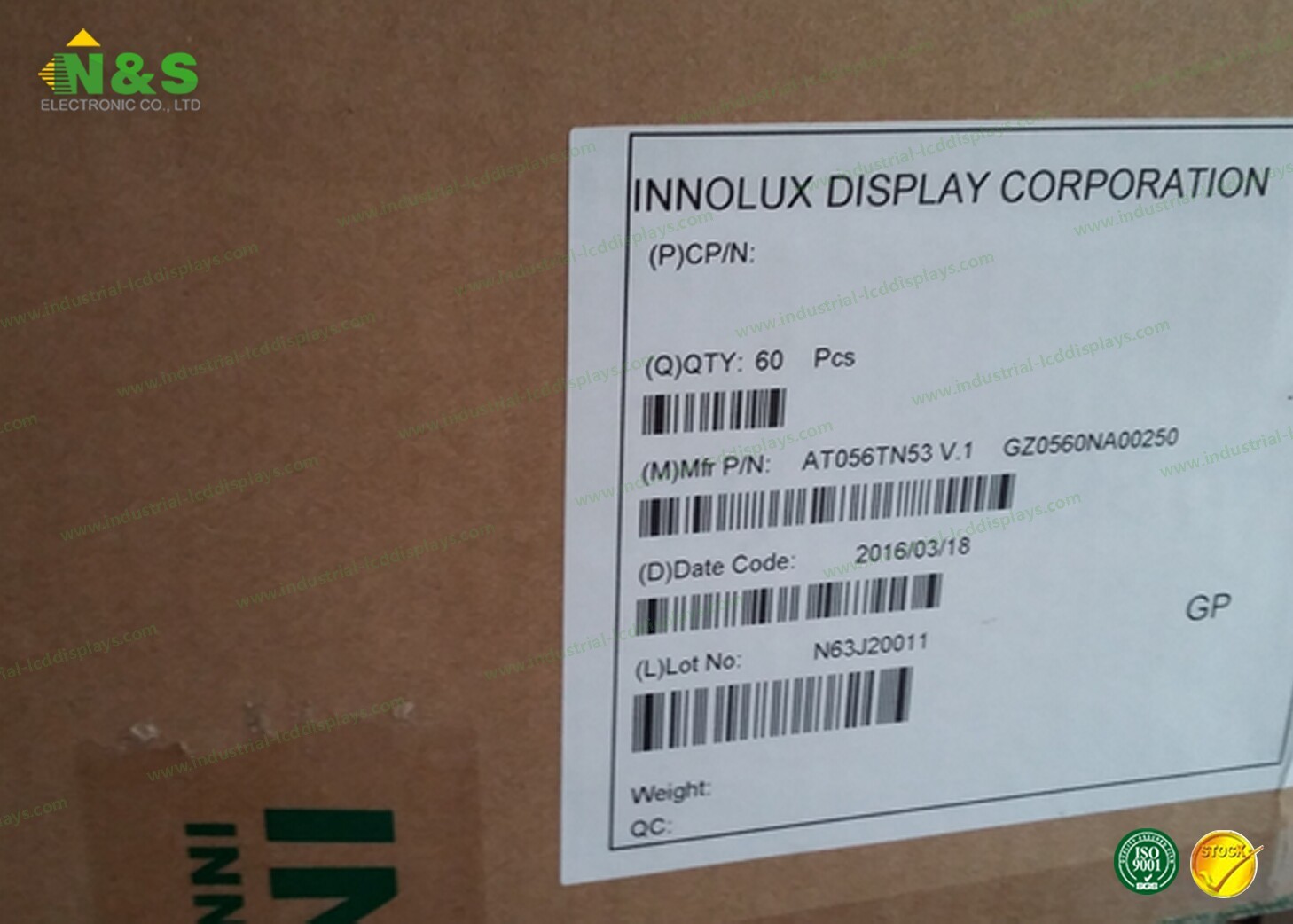

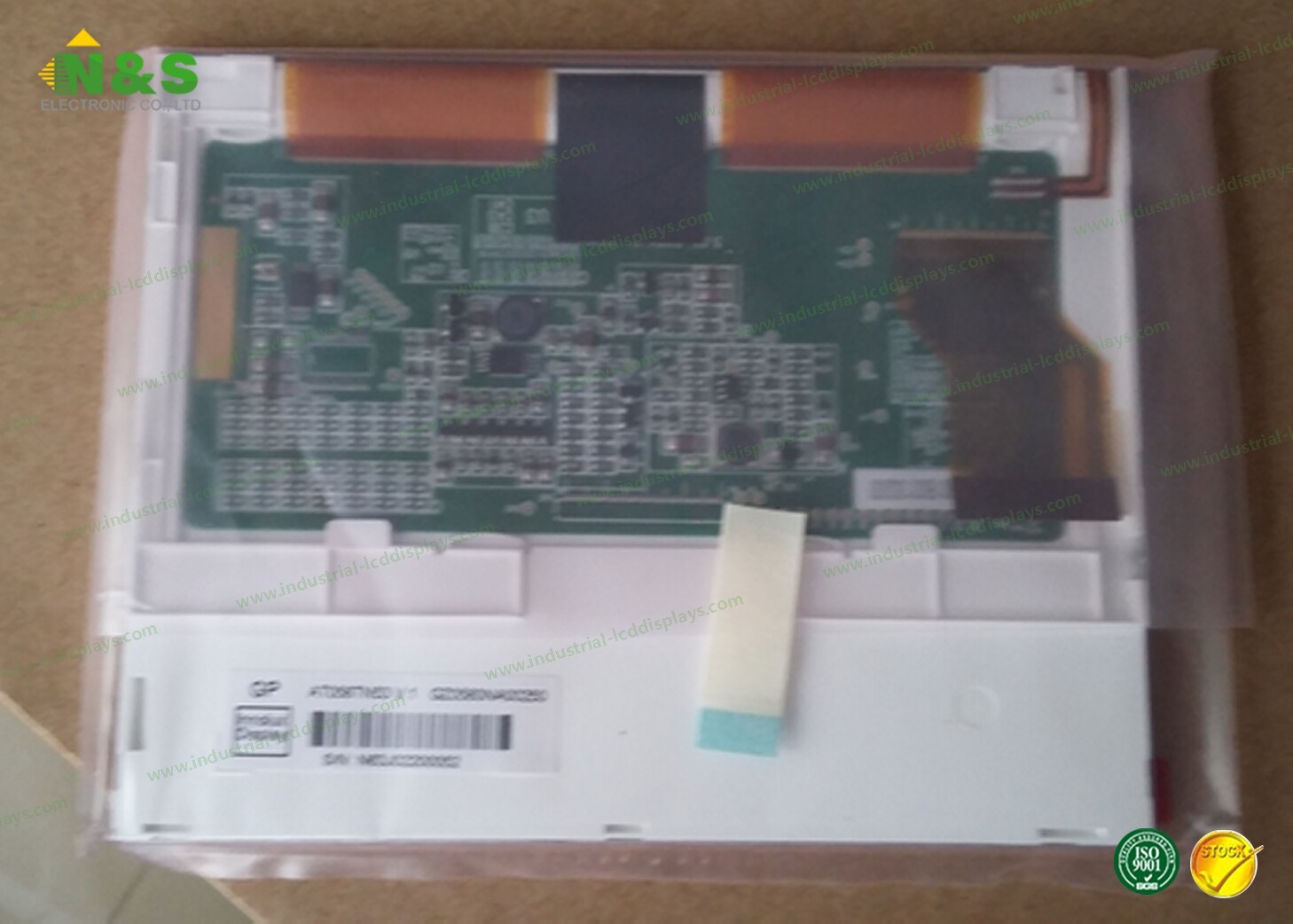

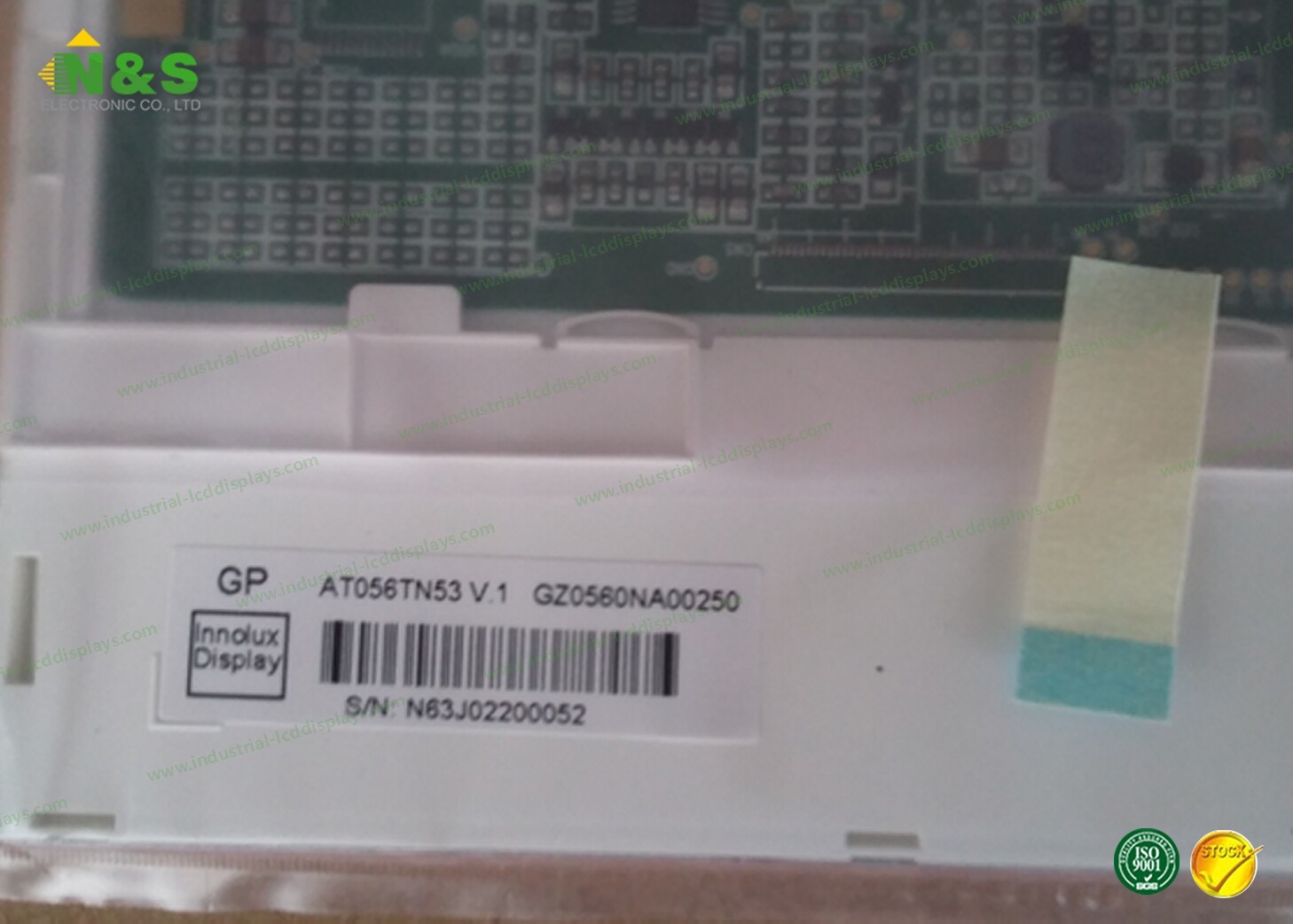

    Details Pictures for the AT056TN53 V.1 Innolux LCD Panel Panel:


    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution


    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution


    AT056TN53 V.1 Innolux LCD Panel 640 ( RGB ) × 480 VGA Resolution
