    Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area

    Ask Lasest Price
    Brand Name : Tianma LCD Displays
    Model Number : TM070RDH28
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

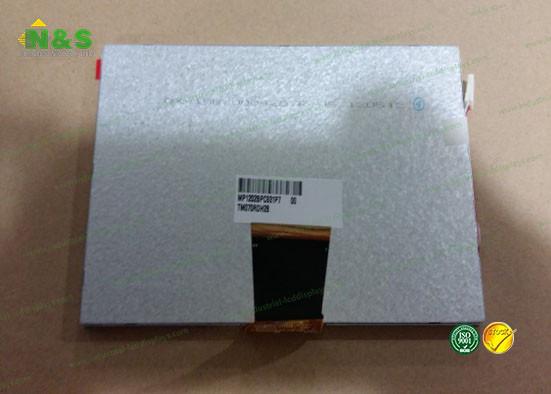

    Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area

    Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area


    TIANMA TM070RDH28 General Features

    Panel Brand :TIANMA
    Panel Model :TM070RDH28
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :7.0 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :154.08×85.92 mm
    Outline :164.9×100 mm
    Surface :Antiglare
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 50%
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :3S8P WLED
    Signal Interface :Parallel RGB (1 ch, 8-bit) , 50 pins
    Input Voltage :3.3/10.4/-16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

    Company Strength:

    1. ISO9001 certificated, Factory Direct Supplied

    2. RoHS Compliant, Lead Free, Reach Compliant

    3.Competitive Price and Short Lead-time

    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

    5. Small MOQ Support & Fast Response to Customers

    6. Long Product Life Time


    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM045YYSP02Tianma4.5"480×854
    TM016XYHP01Tianma1.6"256×320
    TM050JYSP01Tianma5.0"720×1280
    TL055VGXP01Tianma5.5"1080×1920
    TM045YYHP08Tianma4.5"480×854
    TL050JGXP01Tianma5.0"720×1280
    TM050JYHP05Tianma5.0"720×1280

    Pls contact to us for more stock information: salespm@nselectronic.com.hk


    TIANMA TM070RDH28 Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :12 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.335

    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.

    2. Anti-Shock Bubble Bag Packing

    3. Foam and Hard Carton Packing

    4. Picked up by forward and delivered by express services.
