Transmissive INNOLUX hd lcd display AT050TN33 5.0 inch
110.88×62.832 mm
Product Description:
| Panel Brand : | INNOLUX |
| Panel Model : | AT050TN33 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.832 mm |
| Outline : | 120.7×75.8×4.45 mm |
| Surface : | Antiglare |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S2P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
Related Products:
Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2",
3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2",
10.4", , etc.
Safety:
Liquid crystal is poisonous. Do not put it in your mouth. If liquid
crystal touches your skin or clothes, wash it off immediately by
using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and
65%RH or less.
2. Do not store the module in surroundings containing organic
solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Application:
Museum, Bank, Restaurant, Airport, Shopping mall,Exhibition
,Railway station, Police office, Control room, Studio room. All the
places where require high display advertisement or Security
surveillance.
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Our Company Advantage in Industrial LCD Panel:
N&S Electronics Co., LTD, integrated LCD touch display
solutions, which will make the process of your development easy.
The module seals LCD, touch screen, the foundation hardware and
software (driver), and universal connection (USB or RS232) to PC
and embedded system.We focuses on LCD display module integrate
touch screen in medium and small size between 5~12.1 inches. Touch
screen technology is the most popular form in applications ranging
from industry to consumer . It is more convenient compaired with
key button control technology. The input signal includes HDMI, AV,
VGA, S-video, DVI, YPbPr and 3G-SDI, etc.
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10
years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per
customer’s design.
4. We are the 5-years four star member of Globalsources and the
Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from
Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock.
Delivery can be made in 5 days.
8. 3-years warranty is offered.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information:
salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |

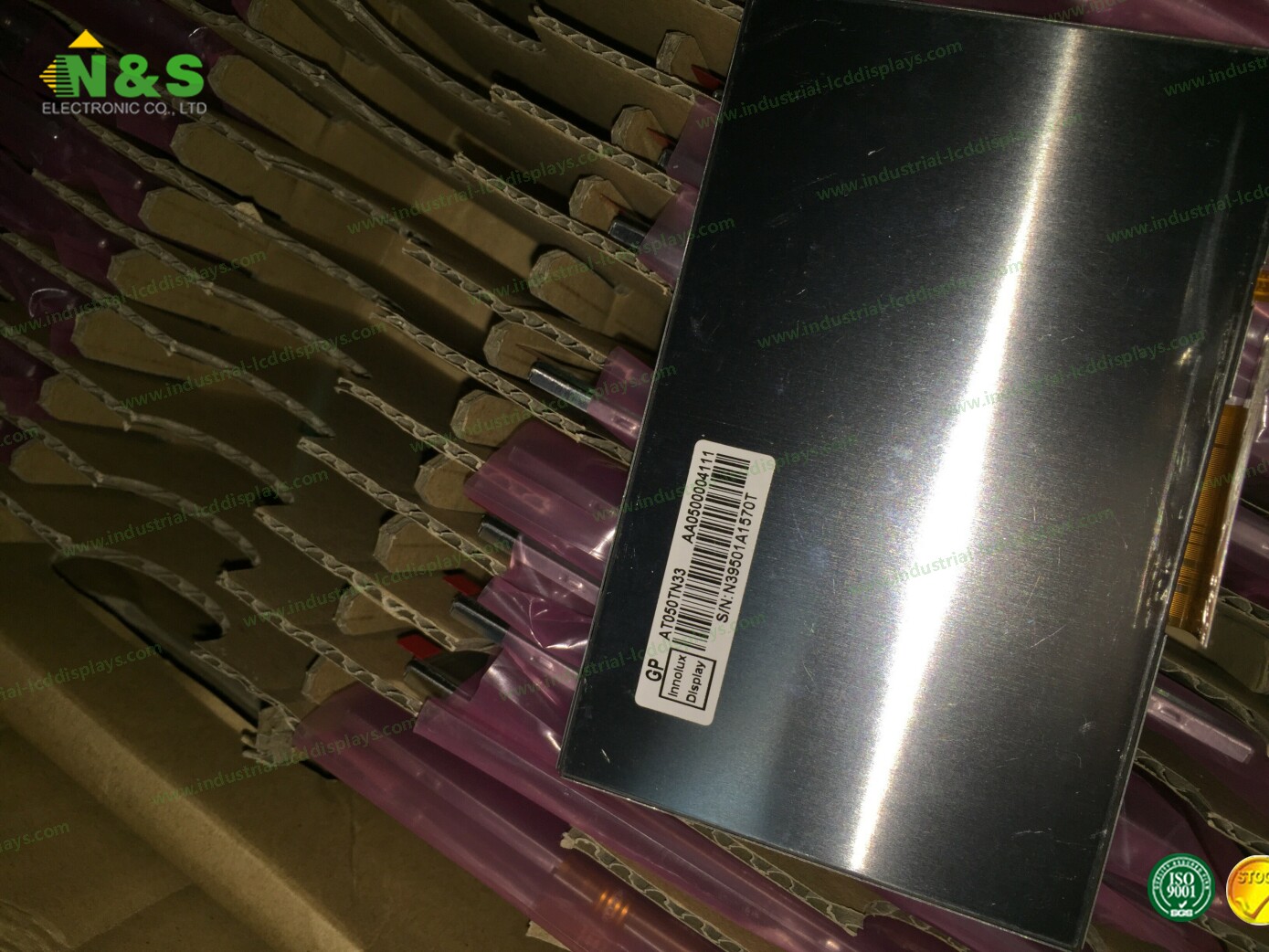

Details Pictures for the Screen Display Panel:
Tag, Innolux LCD Screen, Industrial TFT LCD Display
