TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel

    Buy cheap TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel from wholesalers

    Buy cheap TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel from wholesalers
    • Buy cheap TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel from wholesalers

    TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel

    Ask Lasest Price
    Brand Name : Tianma LCD Displays
    Model Number : TM070RDH01
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel

    TM070RDH01 7.0 inch Tianma LCD Displays , industrial lcd panel


    What is our advantages?

    1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.


    Packing & Delivery for our LCD Screen Panel Replacements

    1. Anti-static Bag Packing.

    2. Anti-Shock Bubble Bag Packing

    3. Foam and Hard Carton Packing

    4. Picked up by forward and delivered by express services.


    TIANMA TM070RDH01 General Features

    Panel Brand :TIANMA
    Panel Model :TM070RDH01
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :7.0 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :157.2×82.32 mm
    Outline :167×93×6.1 mm
    Surface :Antiglare
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :400:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 50%
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :3S10P WLED
    Signal Interface :TTL (1 ch, 6-bit) , 60 pins
    Input Voltage :3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)

    TIANMA TM070RDH01 Mechanical Features

    Panel Size :7.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :133 PPI
    Aspect Ratio :17:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0655×0.1715 mm (H×V)
    Pixel Pitch :0.1965×0.1715 mm (H×V)
    Weight :138.4g (Typ.)
    Surface :Antiglare
    Active Area :157.2×82.32 mm (H×V)
    Bezel Area :160.2×85.32 mm (H×V)
    Outline Dimension :167×93 mm (H×V)
    Outline Depth :5.4/6.1 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Landscape type
    Touch Panel :Without

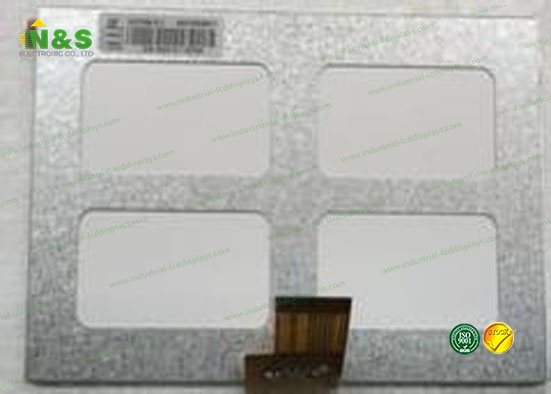

    Details Pictures for TM070RDH01
