    LQ150X1LAP5 15.0 inch lcd monitor display 315.8×243.2×10.3 mm

    Ask Lasest Price
    Brand Name : Sharp LCD Panel
    Model Number : LQ150X1LAP5
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    LQ150X1LAP5 15.0 inch lcd monitor display 315.8×243.2×10.3 mm

    LQ150X1LAP5 15.0 inch lcd monitor display 315.8×243.2×10.3 mm

    SHARP LQ150X1LAP5 General Features

    Panel Brand :SHARP
    Panel Model :LQ150X1LAP5
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :15.0 inch
    Resolution :1024(RGB)×768 , XGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :304.1×228.1 mm
    Outline :315.8×243.2×10.3 mm
    Shape Style :Wedge (PCBA Bent, Depth ≥5.2mm)
    Surface :Glare (Haze 0%), Hard coating (2H), Antireflection
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :450:1 (Typ.)
    Display Colors :262K (6-bit)
    Response Time :30 (Typ.)(Tr+Td)
    Viewing Angle :70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz


    SHARP LQ150X1LAP5 Optical Features
    <

    Display Mode :TN, Normally White, Transmissive
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :450 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :30 (Typ.)(Tr+Td)
    Viewing Angle :70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.10/1.30 (Typ./Max.)(5 points)


    Our Advantage
    Q1: Can I place sample order first?
    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
    Q2: How could I pay them?
    A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
    Q3: How to place the order?
    A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
    Q4: How long can I get my order?
    A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
    Q5: How to send us the products?
    A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
    Q6: Can you customize according to our designs and put our logo on the products?
    A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.

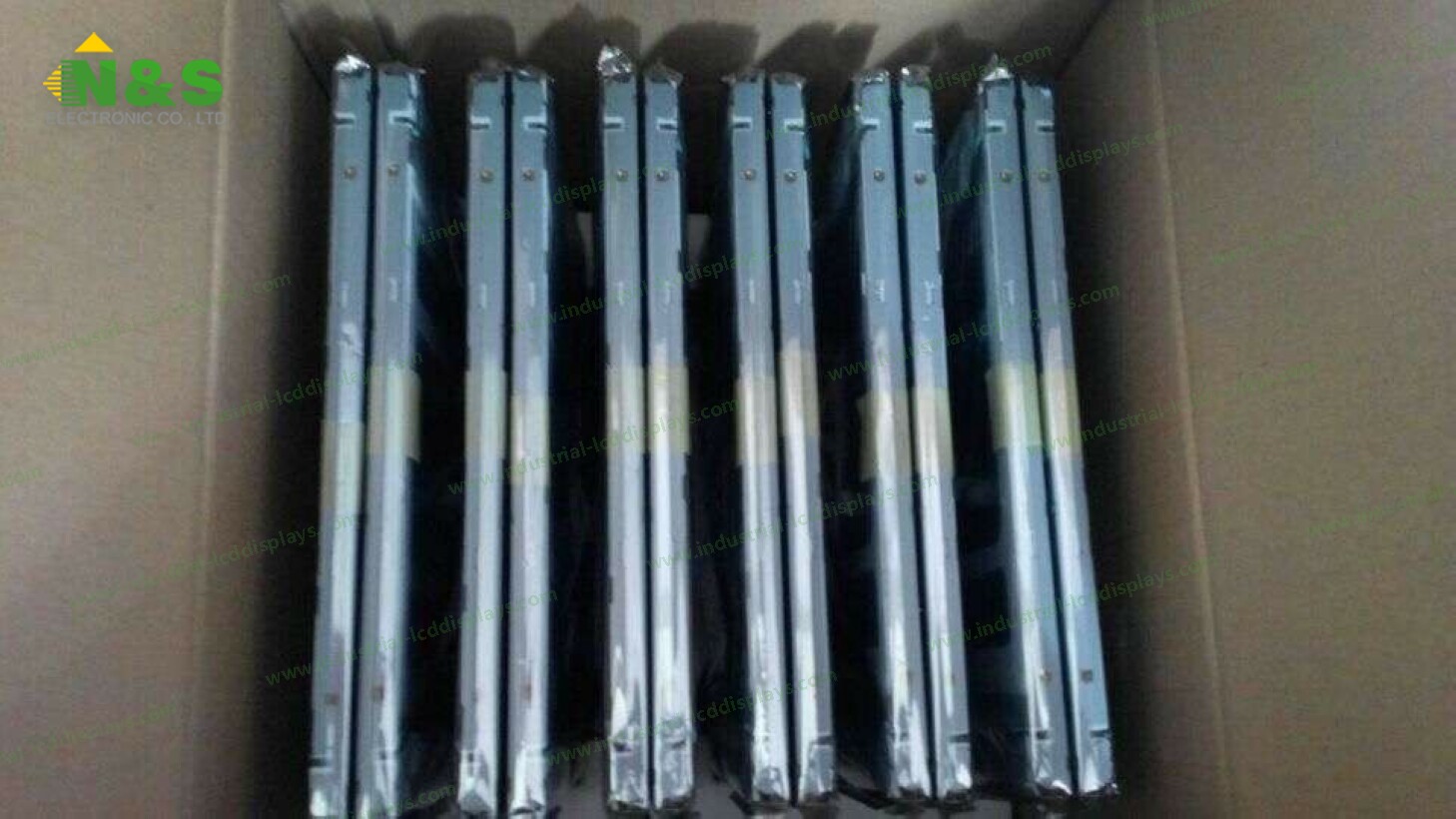

    Packing & Delivery for our LCD Screen Panel Replacements
    1. Anti-static Bag Packing.
    2. Anti-Shock Bubble Bag Packing
    3. Foam and Hard Carton Packing
    4. Picked up by forward and delivered by express services.

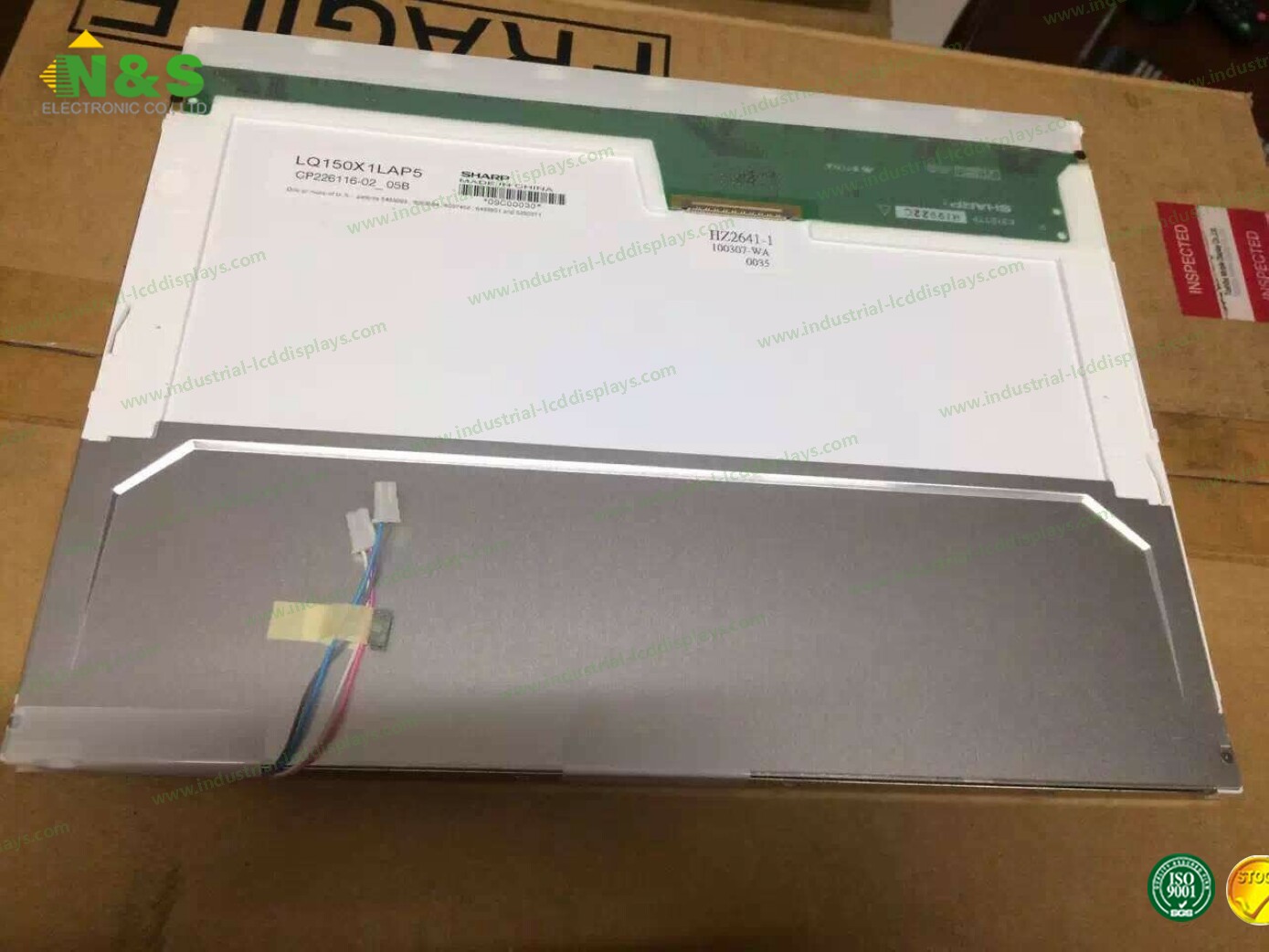

    Details Pictures for Sharp LCD Panel:
