EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel

    Buy cheap EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel from wholesalers

    Buy cheap EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel from wholesalers
    • Buy cheap EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel from wholesalers

    EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel

    Ask Lasest Price
    Brand Name : Chimei LCD Panel
    Model Number : EE070NA-01D
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel


    EE070NA - 01D Chimei LCD Panel , Hard coating lcd flat panel


    Company Strength


    1. ISO9001 certificated, Factory Direct Supplied

    2. RoHS Compliant, Lead Free, Reach Compliant

    3. Competitive Price and Short Lead-time

    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

    5. Small MOQ Support & Fast Response to Customers

    6. Long Product Life Time


    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Easy-to-install console, Open Frame chassis-mount display

    • Slim dimensions enable better enclosure designs

    • Multiple mounting options (100mm VESA mount and side brackets)

    • All steel construction provides rugged frame for public use environments

    • Two independent touch points (with Windows 7 OS)

    • Improved power efficiency and reduced consumption

    • TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals


    CHIMEI INNOLUX EE070NA-01D General Features

    Panel Brand :CHIMEI INNOLUX
    Panel Model :EE070NA-01D
    Panel Type :a-Si TFT-LCD , CELL
    Panel Size :7.0 inch
    Resolution :1024(RGB)×600 , WSVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :153.6×90 mm
    Outline :160×101.1×1.43 mm
    Surface :Glare (Haze 0%), Hard coating
    Glass Depth :0.50+0.50 mm
    Transmissivity :3.5% (Typ.)(with Polarizer)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Signal Interface :LVDS (1 ch, 6/8-bit) , 40 pins
    Input Voltage :3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)

    CHIMEI INNOLUX EE070NA-01D Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :0 cd/m²
    Contrast Ratio :700 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.299; Wy:0.323
    Transmissivity :3.5% (Typ.)(with Polarizer)

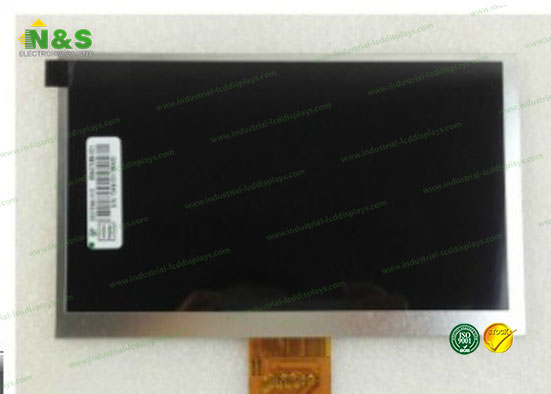

    Details Pictures for Chimei LCD Panel
