ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²

    Buy cheap ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m² from wholesalers

    Buy cheap ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m² from wholesalers
    • Buy cheap ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m² from wholesalers
    • Buy cheap ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m² from wholesalers

    ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : AT102TN03 V.9
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²


    ISO9001 Innolux LCD Panel , 10.2 inch Anti Glare LCD Screen 250 cd / m²


    INNOLUX AT102TN03 V.9 General Features

    Panel Brand :INNOLUX
    Panel Model :AT102TN03 V.9
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :10.2 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :222×132.48 mm
    Outline :235×145.8×6.3 mm
    Surface :Antiglare
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :300:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 50%
    Response Time :15/20 (Typ.)(Tr/Td)
    Viewing Angle :65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :3S10P WLED
    Signal Interface :TTL (1 ch, 6-bit) , 60 pins
    Input Voltage :3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)

    INNOLUX AT102TN03 V.9 Mechanical Features

    Panel Size :10.2 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :91 PPI
    Aspect Ratio :15:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0925×0.2760 mm (H×V)
    Pixel Pitch :0.2775×0.2760 mm (H×V)
    Weight :325g (Typ.)
    Surface :Antiglare
    Active Area :222×132.48 mm (H×V)
    Bezel Area :225.3×135.7 mm (H×V)
    Outline Dimension :235×145.8 mm (H×V)
    Outline Depth :6.1±0.3 mm
    Holes & Brackets :Side mounting holes (6-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    What We Can Do for You

    1. Quality ensurance

    100% original new and A grade,

    You can enjoy the real panels directly from original factory;

    2. Fast reply

    Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

    3. Delivery ensurance

    Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.

    4. After-Sale Service

    Professional support team to provide effective service, we are young and full of passion!

    5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.

    We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.

    6. Competitive quotation

    We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.


    Company Strength

    1. ISO9001 certificated, Factory Direct Supplied

    2. RoHS Compliant, Lead Free, Reach Compliant

    3. Competitive Price and Short Lead-time

    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

    5. Small MOQ Support & Fast Response to Customers

    6. Long Product Life Time

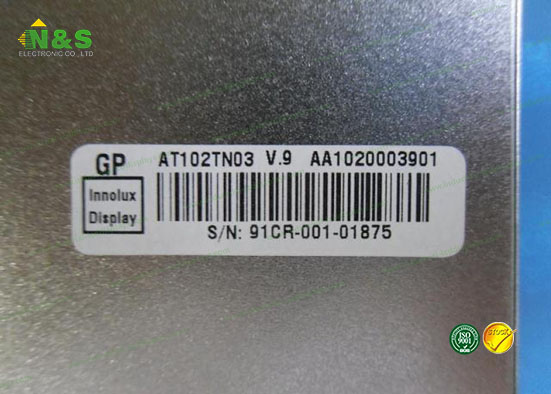

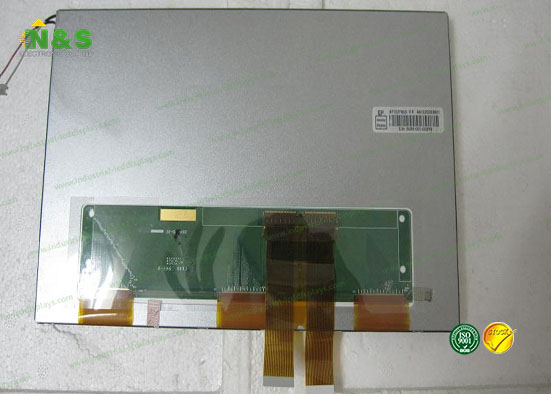

    Details Pictures for Innolux LCD Panel
