Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21

    Buy cheap Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21 from wholesalers

    Buy cheap Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21 from wholesalers
    • Buy cheap Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21 from wholesalers
    • Buy cheap Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21 from wholesalers

    Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ104V1DG21
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21

    10.4 inch Flat Rectangle Display LQ104V1DG21 262K SHARP LCD Display Panel


    Technical parameters for SHARP LQ104V1DG21:

    <

    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.110 0.330 mm (H V)
    Pixel Pitch :0.330 0.330 mm (H V)
    Weight :700g (Max.)
    Surface :Antiglare, Hard coating (3H), Antireflection
    Active Area :211.2 158.4 mm (H V)
    Bezel Area :214.6 162.4 mm (H V)
    Outline Dimension :265 195 mm (H V)
    Outline Depth :11.5 (Max.) mm
    Holes & Brackets :Face mounting holes
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    The LQ104V1DG21 Series Sunlight Readable LCD monitors are designed for use in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen.


    Our Advantages for LCD panel:

    With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in medical,industrial control,handheld device,Smartwatch, automotive,smart home and other fields.


    Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.


    Descriptions for SHARP LQ104V1DG21 :

    <

    <

    Display Mode :TN, Normally White, Transmissive
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :300 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :20/40 (Typ.)(Tr/Td)
    Viewing Angle :70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.45 (Max.)(5 points)

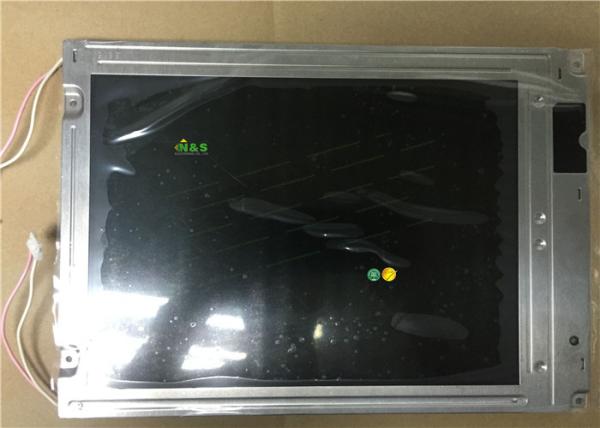

    Details Pictures for SHARP LQ104V1DG21:



    Quality Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21 for sale
