TM070RDZ07 TIANMA original new 7.0 inch LCD Screen display panel
apply in GPS Navigation
Overview of Production :
<
TIANMA TM070RDZ07 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM070RDZ07 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 157.2×82.32 mm |
| Outline : | 167×93×6 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 650 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 70% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5S3P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
TIANMA TM070RDZ07 Backlight System
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 5S3P |
| Lamp Shape : | 3 strings |
| Lamp Life Time : | 10K(Min.) (Hours) |
| Lamp Voltage : | 16V (Typ.) |
| Lamp Current : | 100/150mA (Typ./Max.) |
| Lamps Power Consumption : | 4.8/8.1W (Typ./Max.) |
| Interface Type : | FPC |
Accept batch order, Please contact us via mail or trademanager
Factory direct offers with professional factory support
1. We will double QC test before shipping
2. Focus on 100% customer satisfaction
More Information For N&S electronic Co.,LTD:
We have a good reputation in the trading of electronic components
and have built up a wide and stable relationship with agency and
distributors of electronic components.
Our products have won praise from customers worldwide. We not only
offer our own stock, but also help clients to search the parts in
Chinese market.
We have implemented a strict and complete quality control system
which ensures that all parts we offer are of good quality.
We have experienced workers and professional equipment to inspect
the parts before shipment and always inform clients the true
conditions of the parts.
We would appreciate the opportunity of serving your component
needs. You will be pleased to do business with us for our best
services and high quality components.
Please contact us by fax, phone or email, so we can quote you the
best price as per your requirements.
Our aim is to help customers realize their goals. We are making
great efforts to achieve this win-win situation and sincerely
welcome you to join us.
Guarantee and Refund :
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us
within 3 days after you receive it and return it within warranty
period ( 12 months )
3. Returned items should have original packaging and in good
condition if possible. Please provide us the tracking number and
the returning reason.
Shipping:
1. Pls make sure the model you need is the exact model you ordered.
We shipping according to the ordered model.
2. Pls make sure the address is correct. We will ship to the address
in the order. If you need to ship to different place, pls email us
the address right after you made the payment.
3. Shipment will be made within 3 business days after the payment
received.
4. We will test each panel strictly before shipping and make very
good package of it.
5. LCD will be sent by EMS/DHL/UPS/ according to the place or
customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.

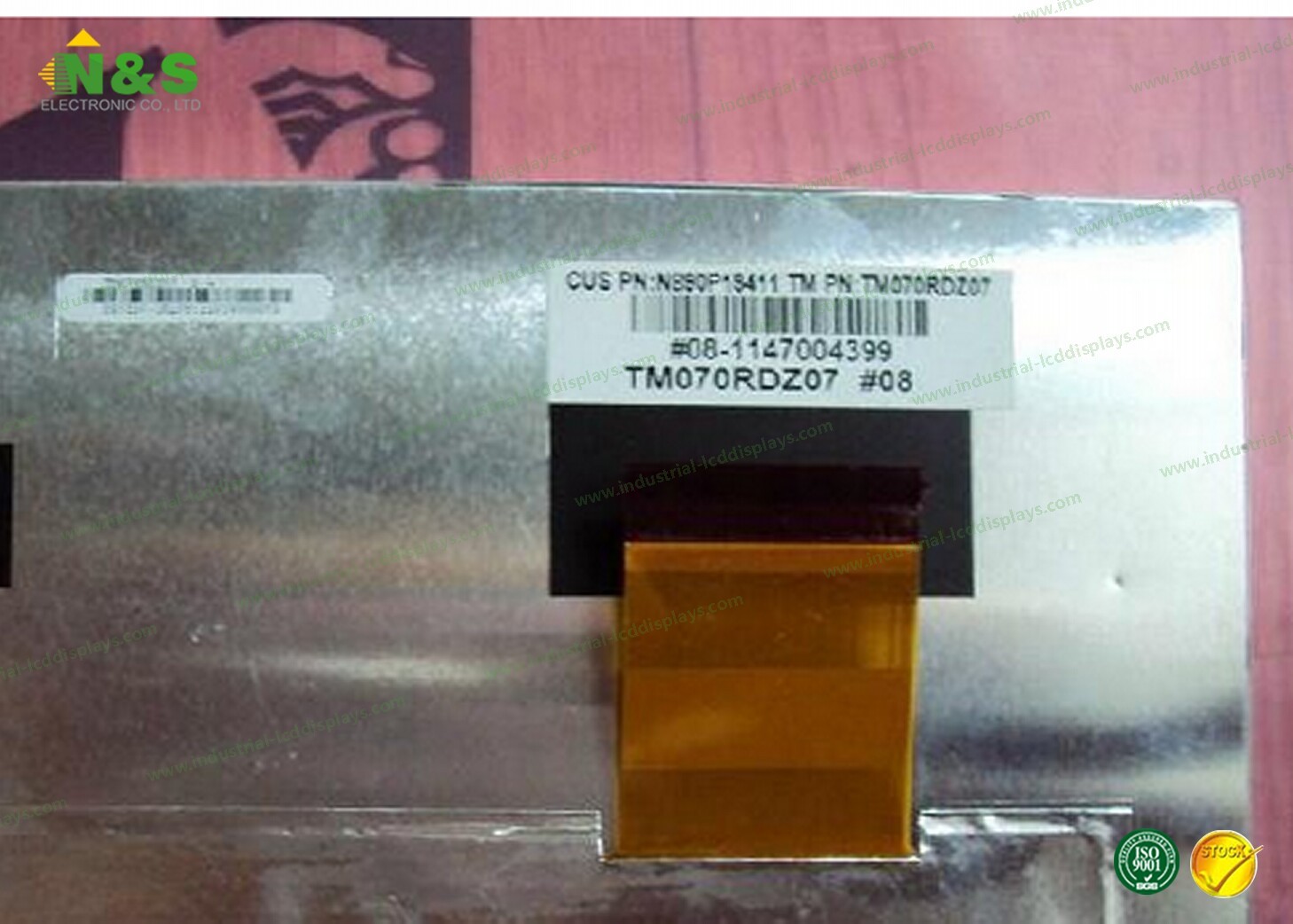

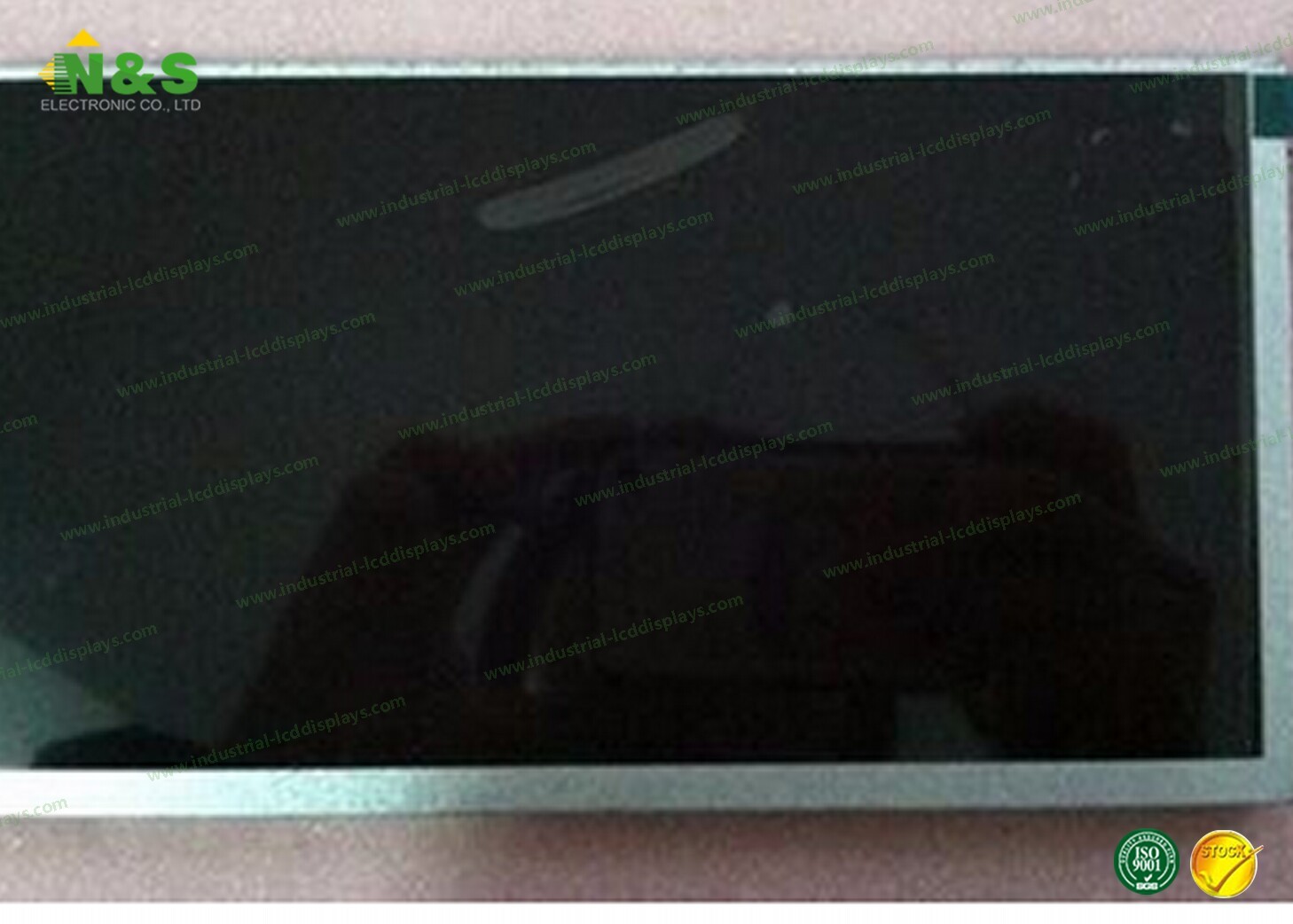

Pictures of TIANMA TM070RDZ07 LCD Display:
