    Full Colour 7 Lcd Display Panel TM070RDH10 , TFT LCD Touch Screen Module With 350 Nits Brightness

    Ask Lasest Price
    Brand Name : Tianma
    Model Number : M070RDH10
    Certification : ISO9001
    Payment Terms : T/T, Paypal, / MoneyGram / Wester Union
    Supply Ability : 100 Pcs Per Day
    Delivery Time : 2-3 Working Days after Order Confirned
    • Product Details
    • Company Profile

    Full Colour 7 Lcd Display Panel TM070RDH10 , TFT LCD Touch Screen Module With 350 Nits Brightness

    Full Colour 7 Lcd Display Panel TM070RDH10 , TFT LCD Touch Screen Module With 350 Nits Brightness


    Industrial Flat Panel Monitor ELECTRICAL AND DISPLAY SPECIFICATIONS:

    Active Matrix7.0" TFT color LCD (154.08 mm diagonal)
    Viewing Size (mm)164.9 x 100*6 mm
    Viewing AngleHorizontal - right & left 80 degrees
    Vertical - upper & lower 70 degrees
    Max Resolution800 x 480 pixels
    Max Colors16.2 M / 262K colors
    Outline Depth5.7 mm
    Response TimeRise Time: 15 millisec
    Fall Time: 10 millisec
    BrightnessFull white: 800 nits
    Contrast Ratio500:01:00
    Horizontal FrequencyVGA mode 31.5 to 38 kHz / NTSC mode 15.75 kHz
    Vertical Frequency60 to 75 Hz
    Signal InputsParallel RGB
    VGA/SVGA Models31.4 kHz to 38 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
    NTSC/PAL ModelsStandard RCA connector or optional BNC adaptor
    DC Power InputStandard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
    AC Power InputStandard 100-240 VAC auto ranging @ 47 to 63 Hz through standard IEC-320 connector or 3-wire AC power cord
    TemperatureOperating from -20 to +70 degrees C
    Storage from -30 to +80 degrees C

    Our Service For TFT LCD Display:


    1). Products Range:Wide range of TFT lcd module available.
    2). Quality Control:Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
    3). Packing:Packed in anti-static bags with foam box to ensure safty in transportation.
    4). Payment Terms:T/T, Western Union, Cash, Paypal, MoneyGram.
    5). Shipping Methods:Prompt delivery by UPS, EMS, DHL, TNT, or by air.
    6). Service:Best after sales service to ensure satisfication from customers.
    7). Delivery:3 working days after payment confirmed.
    8). Warranty:Usually, product warrantees last 12months, but it depends on the merchandise in question.
    9). Samples:Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

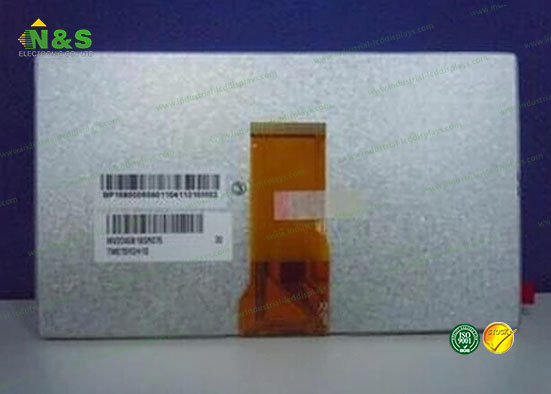

    Details Picture for TM070RDH10 Tianma 7 Inch TFT LCD Touch Screen:
