TIANMA 5.6 inch TFT LCD Analog Screen TM056KDH01 320 x 234 TN Normally White

Ask Lasest Price
Brand Name :	Tianma LCD Displays
Model Number :	TM056KDH01
Certification :	ISO9001
Payment Terms :	T/T, Paypal, Western Union, MoneyGram
Supply Ability :	100 PCS / DAY
Delivery Time :	2-3 working days after payment confirmation

Add to Cart

Product Details
Company Profile

TIANMA 5.6 inch TFT LCD Analog Screen TM056KDH01 320 x 234 TN Normally White

Overview the production:

TIANMA TM056KDH01 Mechanical Features	Panel Size :	5.6 inch
	Dot Resolution :	320(RGB)×234
	Pixel Configuration :	RGB Vertical Stripe
	Pixel Density :	71 PPI
	Aspect Ratio :	4:3 (H:V)
	Form Factor :	Flat Rectangle Display
	Dot Pitch :	0.118×0.362 mm (H×V)
	Pixel Pitch :	0.354×0.362 mm (H×V)
	Weight :	123.0g (Typ.)
	Surface :	Antiglare
	Active Area :	113.28×84.708 mm (H×V)
	Bezel Area :	116.08×87.51 mm (H×V)
	Outline Dimension :	126.5×100 mm (H×V)
	Outline Depth :	5.7 (Typ.) mm
	Landscape or Portrait :	Landscape type
	Touch Panel :	Without
TIANMA TM056KDH01 Backlight System	Lamp Position :	Edge light type
	Lamp Type :	WLED
	Lamp Amount :	2S7P
	Lamp Shape :	Array
	Lamp Voltage :	6.4V (Typ.)
	Lamp Current :	140mA (Typ.)
	Lamps Power Consumption :	896mW (Typ.)
	Interface Type :	Connector
TIANMA TM056KDH01 Signal Interface	Signal Category :	Analog
	Signal Class :	TFT Specific Analog RGB
	Input Voltage for Panel :	5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
	Input Current for Panel :	0.8/3.41/0.056/0.056mA (Typ.)(ICC/IAVDD/IGH/IGL)
	Interface Type :	FPC

About Shipping:

1. we will test them strictly before shipping.

2. we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

3. Delivery time is approx:

United States / United Kingdom / Australia 7-14 working days.

Canada 7-25 working days.

France / Spain / Germany may take 7-20 working days.

Eastern Europe may take up to 16-30 working days.

Italy / Brazil / South America may take up to 30-50 working days.

Shipped by DHL Express (Need 3-6 working days to arrive)

Our Advantages for LCD panel:

1	FOG automatical device can ensure the capacity of 1000,000 per month.
2	MOQ can be 100pcs, lead time of standard products is 20 days.
3	Reliability test and full examination to ensure the high quality of the display.
4	OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5	Strictly ISO quality management system.
6	Mature and Professional R&D and after service.
7	Various cooperation experience with big brands

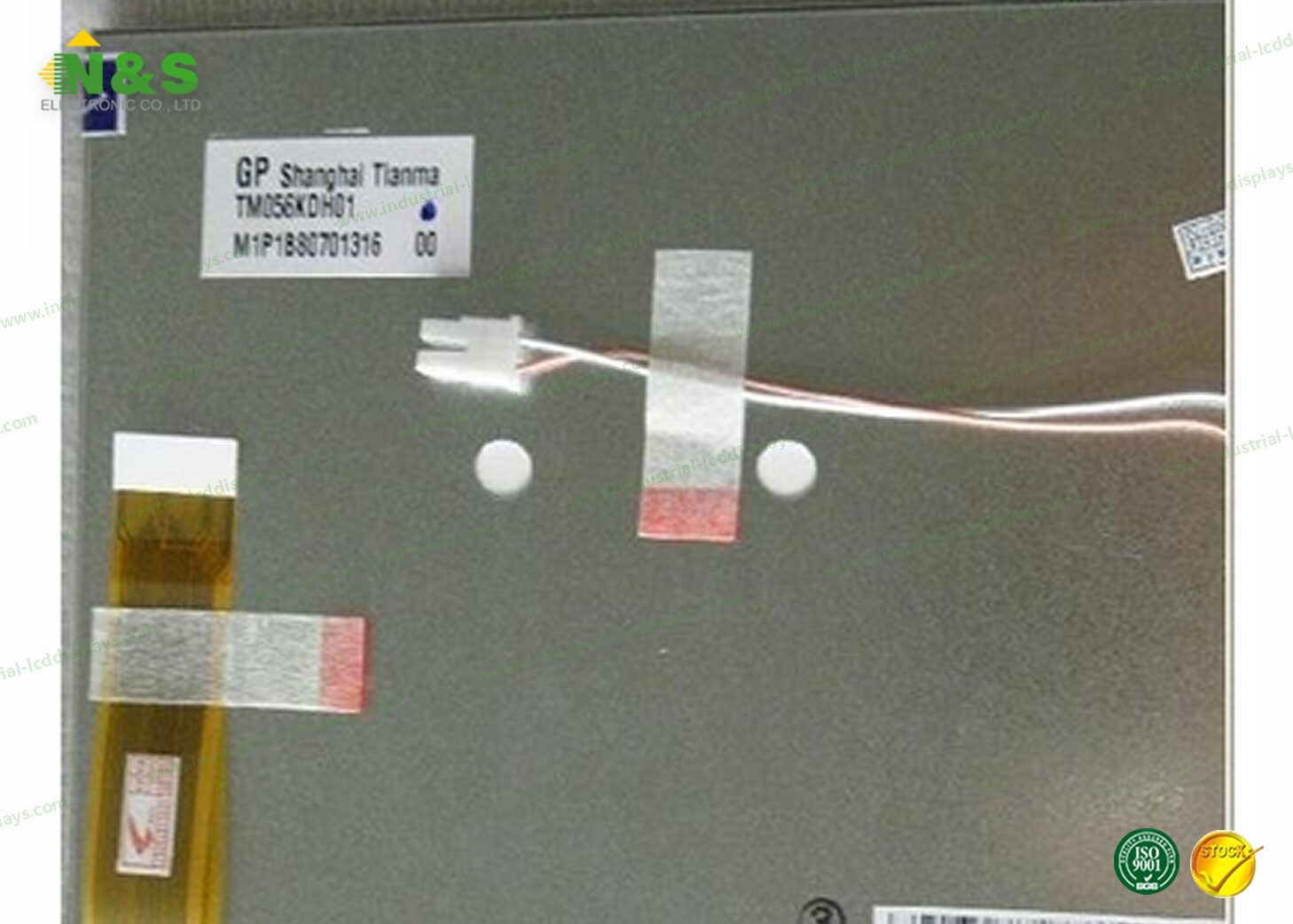

Pictures of TIANMA TM056KDH01 LCD Display:

TIANMA 5.6 inch TFT LCD Analog Screen TM056KDH01 320 x 234 TN Normally White
