    AUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcd

    Ask Lasest Price
    Brand Name : AUO LCD Panel
    Model Number : G104SN03 V5
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    AUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcd

    AUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcd


    AUO G104SN03 V5 Features :


    <







    AUO G104SN03 V5 Mechanical Features







    Panel Size :10.4 inch
    Dot Resolution :800(RGB)*600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :96 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.088*0.264 mm (H*V)
    Pixel Pitch :0.264*0.264 mm (H*V)
    Weight :280g (Typ.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :211.2*158.4 mm (H*V)
    Bezel Area :214.8*162.0 mm (H*V)
    Outline Dimension :236*176.9 mm (H*V)
    Outline Depth :5.7*0.3 mm
    Holes & Brackets :Face mounting holes (4-*2.5, 2-R1.25) on left, right bezel








    AUO G104SN03 V5 Backlight System






    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Lamp Position :Edge light type
    Lamp Type :WLED
    Lamp Amount :3 strings
    Lamp Shape :3 strings
    Lamp Life Time :30K(Typ.) (Hours)
    Lamp Replaceable :Replaceable
    Lamp Voltage :26.0/29.2V (Typ./Max.)
    Lamp Current :25mA (Typ.)
    Lamps Power Consumption :1.95W (Typ.)
    Interface Type :Connector
    Lamp Driver Board :Embedded (LED Driver)
    Lamp Driver Board :10.8/12.0/12.6V (Min./Typ./Max.)
    Lamp Driver Board :0.2A (Typ.)
    Lamp Driver Board :2.44W (Typ.)

    Why directly choose us :


    1. Gold supplier authenticated by MAOYT.
    We are committed to provide 100% new original.
    2. All the goods for sale are in stock, we can ship to you within 1-5 working days.
    3. We have many different kinds of goods (all in one shop)
    And more important, You will get the lowest price and high quality products.
    4. A large number of Consult tony wu.


    Guarantee and Refund :


    1. All items are in good condition.

    2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )

    3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.


    Trade Terms:


    1. Payment terms: 100% by T/T when order confirmed

    2. Lead time: 2-5 working days according to the order quantity

    3. Sample lead time: within 3 working days after we get payment.

    4. The price based on FOB Shenzhen,we will offer best discount according to order quantity.

    5. Warranty:offer free spare parts within ONE year.

    6. Offer OEM service for batch orders,to print logo and design box.

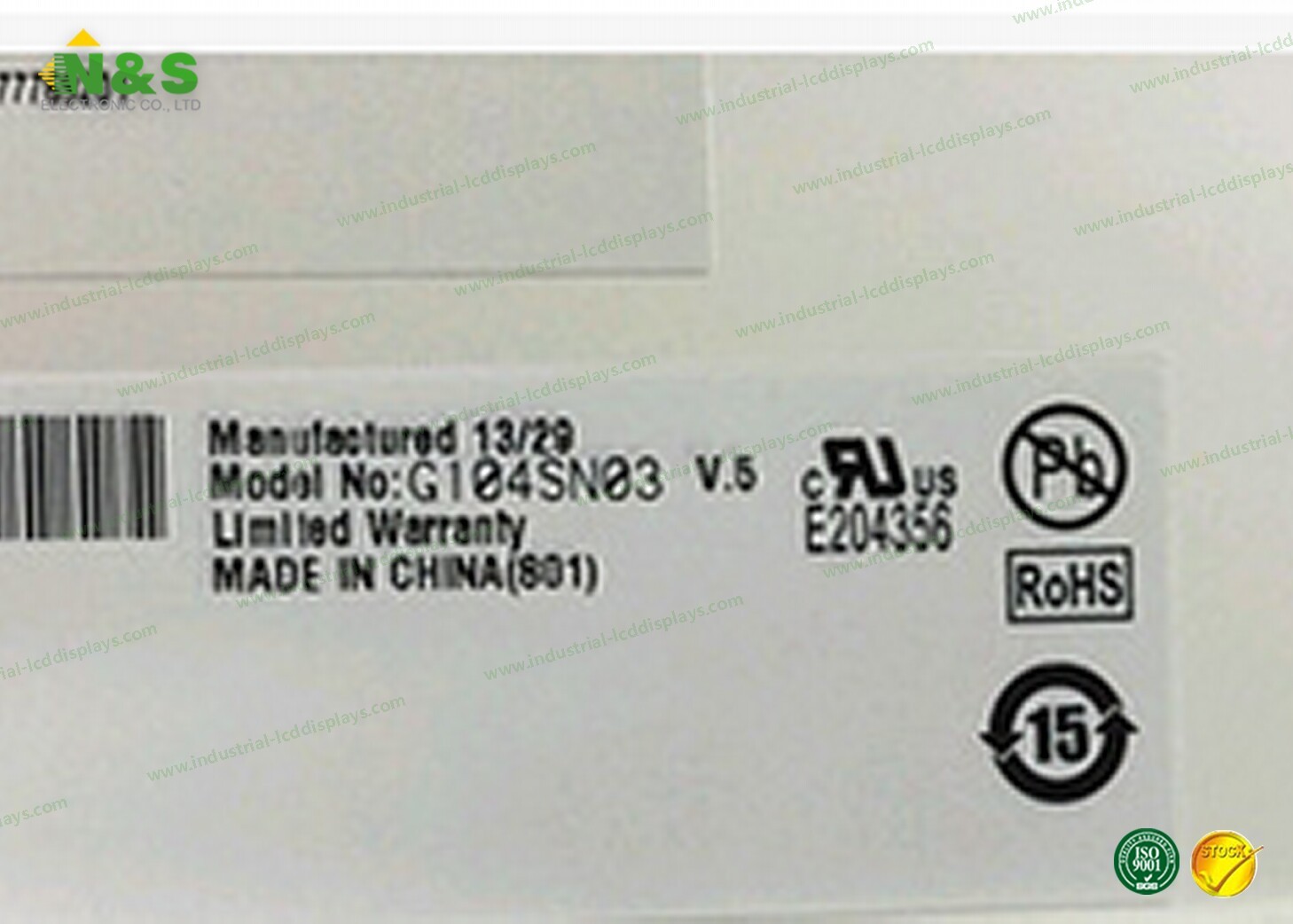

    Pictures of AUO G104SN03 V5 LCD Display:


    AUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcdAUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcd


    AUO 10.4inch LED G104SN03 V5 800*600 G104SN03 V.5 Stoll computer flat knitting machine lcd
